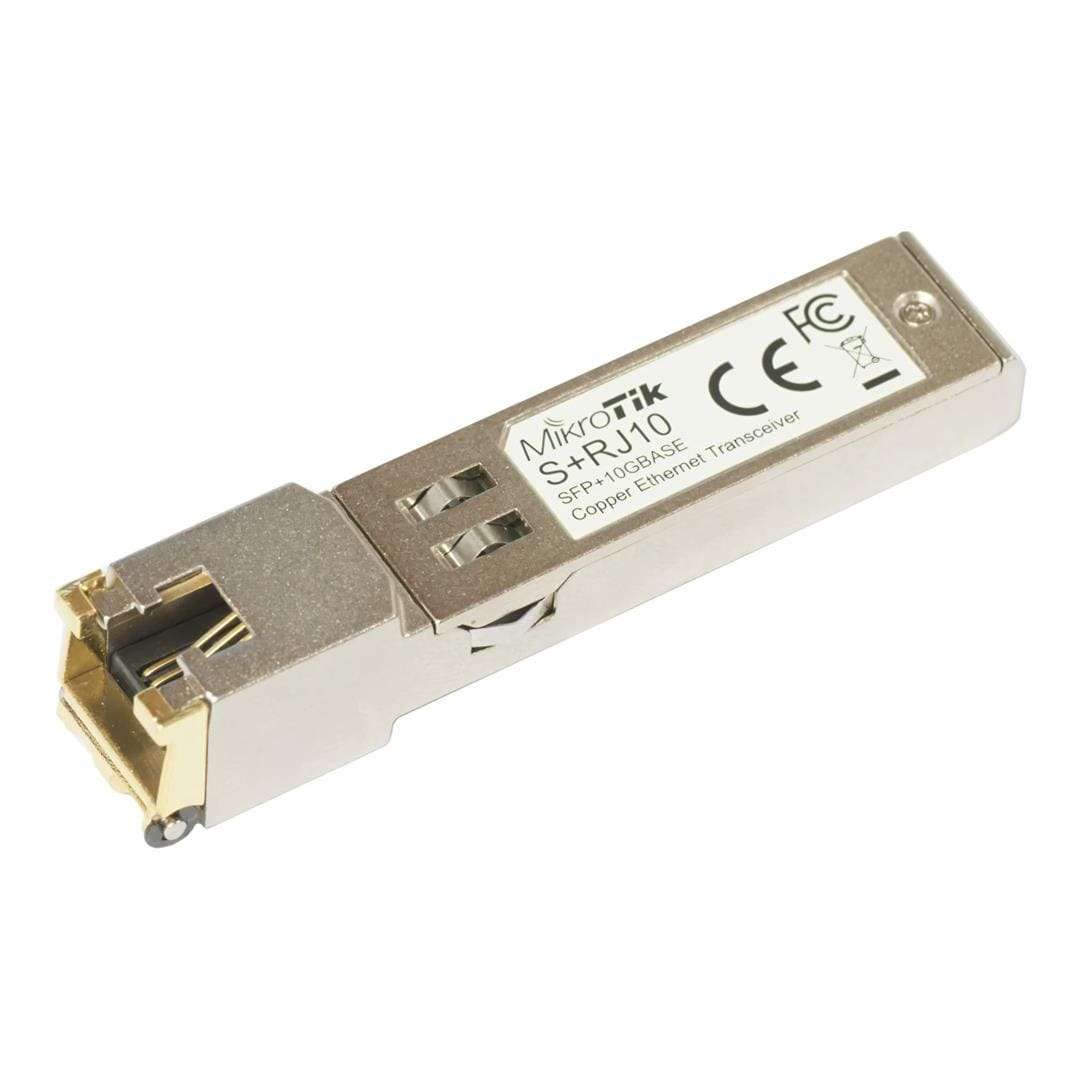

MikroTik 10Gb RJ45 SFP+ Transceiver Module S+RJ10
The MikroTik S+RJ10 is a versatile 6-speed RJ45 SFP+ copper module that converts a compatible 10G SFP+ interface into an RJ45 Ethernet connection supporting speeds up to 10Gbps. With automatic negotiation across 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps rates, it provides a flexible way to connect high-speed copper Ethernet equipment to MikroTik devices equipped with SFP+ ports without installing optical fibre.
Key Features
- 6-speed RJ45 SFP+ copper Ethernet module.
- Supports 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps speeds.
- Converts a compatible SFP+ port to an RJ45 copper Ethernet interface.
- Supports up to 10Gbps over Cat6/7 cable at distances up to 30m.
- Lower Ethernet speeds support longer cable distances depending on cable type and link configuration.
- Auto-negotiates to the highest available supported link rate.
- Compatible with supported MikroTik devices equipped with 10G SFP+ interfaces.
- Latest /r2 revision supports DDM voltage and temperature monitoring.
- Latest /r2 revision supports jumbo frames up to 10,218 bytes at 2.5G, 5G and 10G speeds.
- Ideal for adding multi-gigabit RJ45 connectivity to SFP+-equipped networking hardware.
Six Ethernet Speeds
The S+RJ10 supports six Ethernet link rates ranging from legacy 10Mbps connectivity through to 10Gbps. Auto-negotiation allows the module to establish the highest compatible link rate supported by the connected equipment and cabling.
10Gbps over Copper
The module enables a compatible 10G SFP+ interface to connect directly to RJ45 Ethernet equipment using conventional twisted-pair cabling. At 10Gbps, MikroTik specifies a maximum link distance of up to 30 metres using suitable Cat6 or Cat7 cable.
Multi-Gigabit Connectivity
In addition to conventional 1Gbps and 10Gbps Ethernet, the S+RJ10 supports 2.5Gbps and 5Gbps link rates. This makes it useful for connecting multi-gigabit switches, network adapters, servers, wireless access points and other compatible RJ45 equipment.
Latest /r2 Enhancements
The latest hardware revision, identified by "/r2" at the end of the serial number, adds Digital Diagnostic Monitoring for supply voltage and module temperature, improved link-speed reporting and jumbo frame support up to 10,218 bytes when operating at 2.5Gbps, 5Gbps or 10Gbps.
Cooling Considerations
10GBASE-T copper transceivers generate considerably more heat than typical optical SFP+ modules. MikroTik supports the S+RJ10 in compatible actively cooled SFP+ devices, while passively cooled equipment may require additional cooling depending on the installation and operating environment.
Technical Specifications
| Specification | Details |
| Brand | MikroTik |
| Model | S+RJ10 |
| Product Type | Multi-Gigabit RJ45 SFP+ Copper Module |
| Module Form Factor | SFP+ |
| Connector | RJ45 |
| Media Type | Twisted-Pair Copper Ethernet |
| Supported Data Rates | 10Mbps / 100Mbps / 1Gbps / 2.5Gbps / 5Gbps / 10Gbps |
| Maximum Data Rate | 10Gbps |
| Maximum Distance at 10Gbps | Up to 30m |
| Recommended Cable at 10Gbps | Cat6 / Cat7 |
| 10 / 100Mbps Distance | Up to 100m with Cat5e/6 |
| 1Gbps Distance to Ethernet Port | Up to 100m with Cat5e/6 |
| 2.5Gbps Distance to Ethernet Port | Up to 100m with Cat5e/6 UTP or STP |
| 5Gbps Distance to Ethernet Port | Up to 100m with Cat5e/6 |
| 10Gbps Distance to Ethernet Port | Up to 30m with Cat6/7 |
| Link Negotiation | Automatic |
| Host Interface Requirement | Compatible 10G SFP+ Port |
| Jumbo Frame Support (/r2) | Up to 10,218 Bytes at 2.5Gbps, 5Gbps and 10Gbps |
| DDM Support (/r2) | Supply Voltage and Module Temperature |
| Storage | 256KB Flash |
| Tested Ambient Temperature | -20°C to +60°C |
| MTBF | Approximately 100,000 Hours at 25°C |
| Cooling Consideration | Active Cooling Recommended; Additional Cooling May Be Required in Passively Cooled Devices |
| Applications | 10GbE Copper Links, Multi-Gigabit Ethernet, Switch Uplinks, Servers, NAS Systems, Workstations and RJ45 Network Equipment |
What's in the Box:
- MikroTik S+RJ10 6-Speed RJ45 SFP+ Copper Module
The MikroTik S+RJ10 provides a flexible way to add RJ45 multi-gigabit connectivity to compatible SFP+-equipped networking hardware. With six supported Ethernet speeds up to 10Gbps, automatic negotiation and support for conventional twisted-pair cabling, it is particularly useful for connecting modern 2.5G, 5G and 10G copper Ethernet equipment to MikroTik network infrastructure.
