MikroTik CRS320 16-port GbE PoE++ Cloud Router Switch with 4x SFP+ Ports CRS320-8P-8B-4S+RM
The first MikroTik high-power PoE++ switch — for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables — create a cleaner space with PoE++!
CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn't have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!

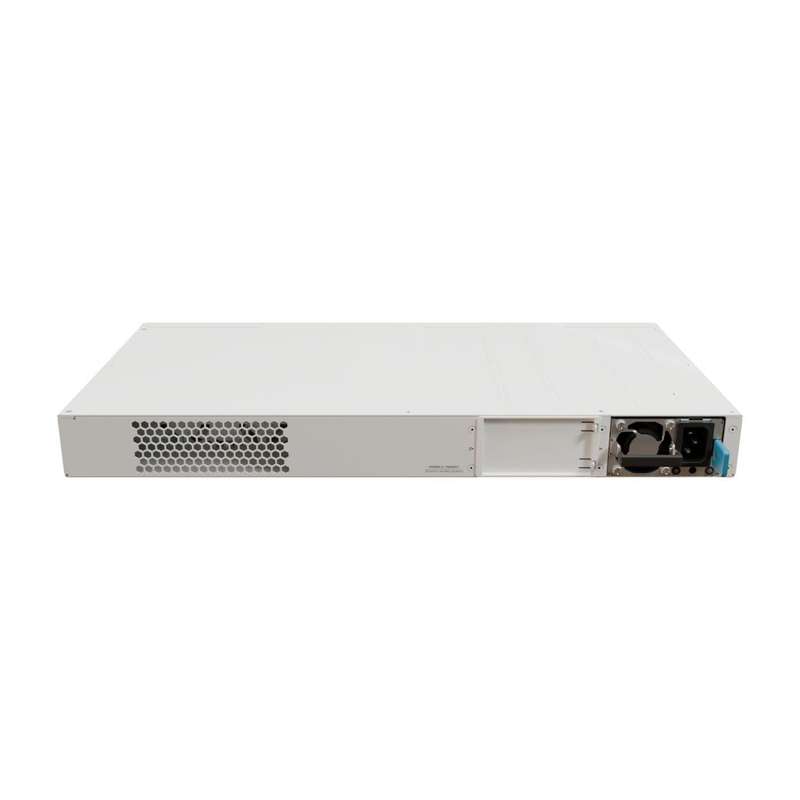

4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures — CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we've reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.

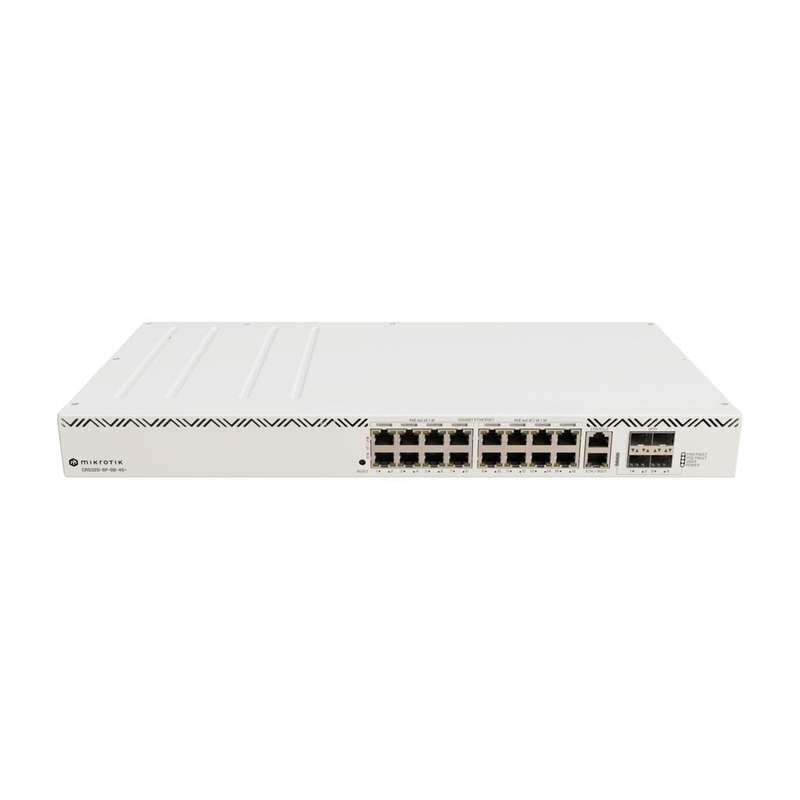

There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There's also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip — the same one you've seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you've been looking for a way to simplify your cable management — this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power "802.3af/at/bt-compatible" Powered Devices, you must avoid specific grounding scenarios. Please refer to the official MikroTik Help page.
- 1x Hot-swappable PSU is included.
Technical Specification
Product: MikroTik CRS320-8P-8B-4S+RM
Architecture: ARM 32bit
CPU: 98DX226S
CPU core count: 2
CPU nominal frequency: 800 MHz
Switch chip model: 98DX226S
RouterOS license: 5
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage size: 32 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Powering
- Number of AC inputs: 1x
- AC input range: 100-240
- Number of PSU slots: 2
- Frequency (Hz): 50-60
- Max power consumption: 600W (1150W with additional PSU)
- Max power consumption without attachments: 36 W
- Cooling type: 3 fans
PoE-out
- PoE-out ports: Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
- PoE out: 802.3af/at/bt
- Max out per port output (input 30-57 V): 560 (af/at) / 1667 (bt) mA
- Max total out (A): 17.82 A
- Total output current: 17.82
- Total output power: 963
Ethernet
- Ethernet ports: 17x 10/100/1000
- Number of 1G Ethernet ports with PoE-out: 16x
Fiber
Peripherals
- Serial console port: 1x RJ45
