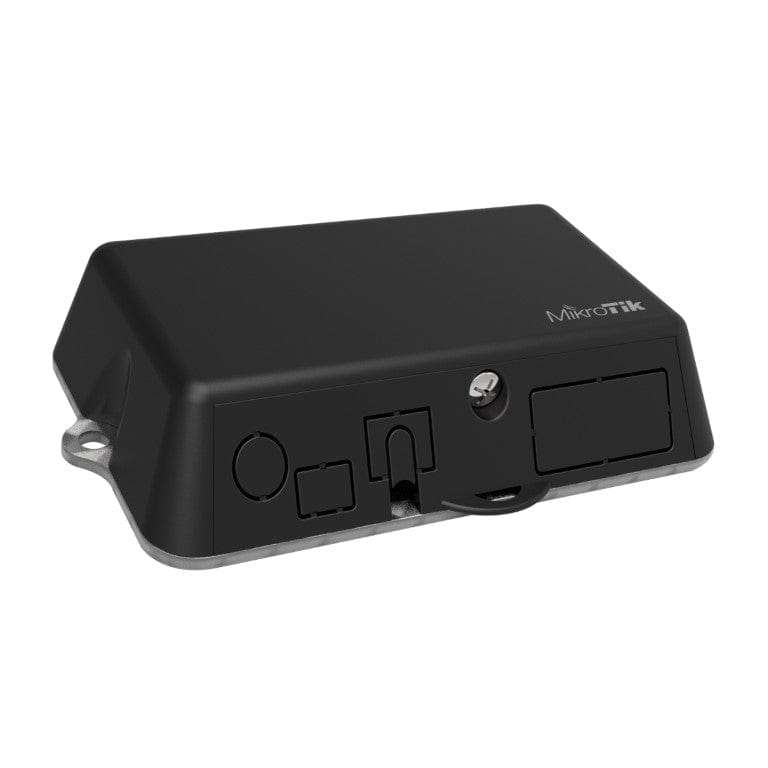

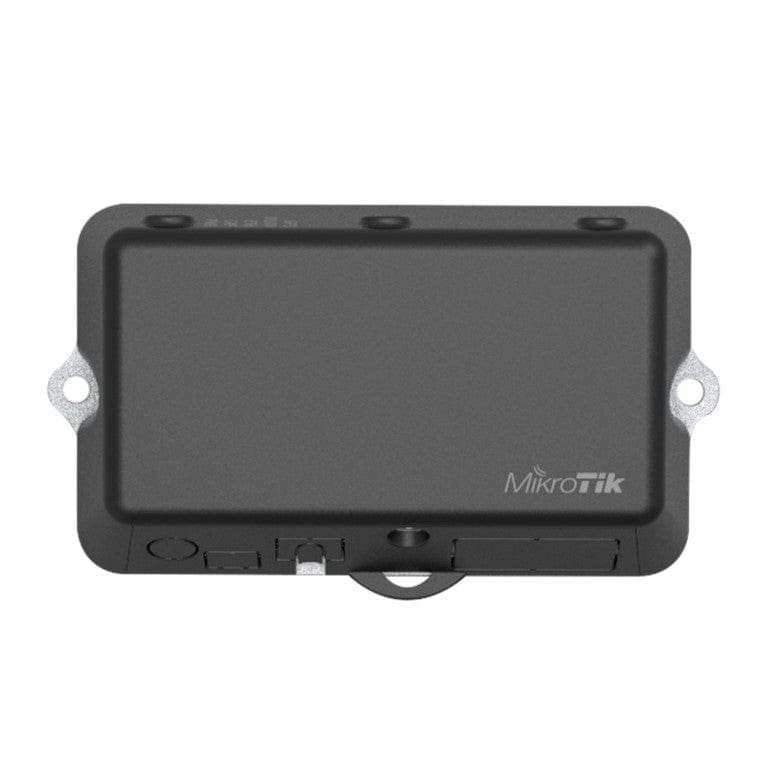

Mikrotik LtAP Mini Wireless Access Point Router RB912R-2ND-LTM
The LtAP mini is a small weatherproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.

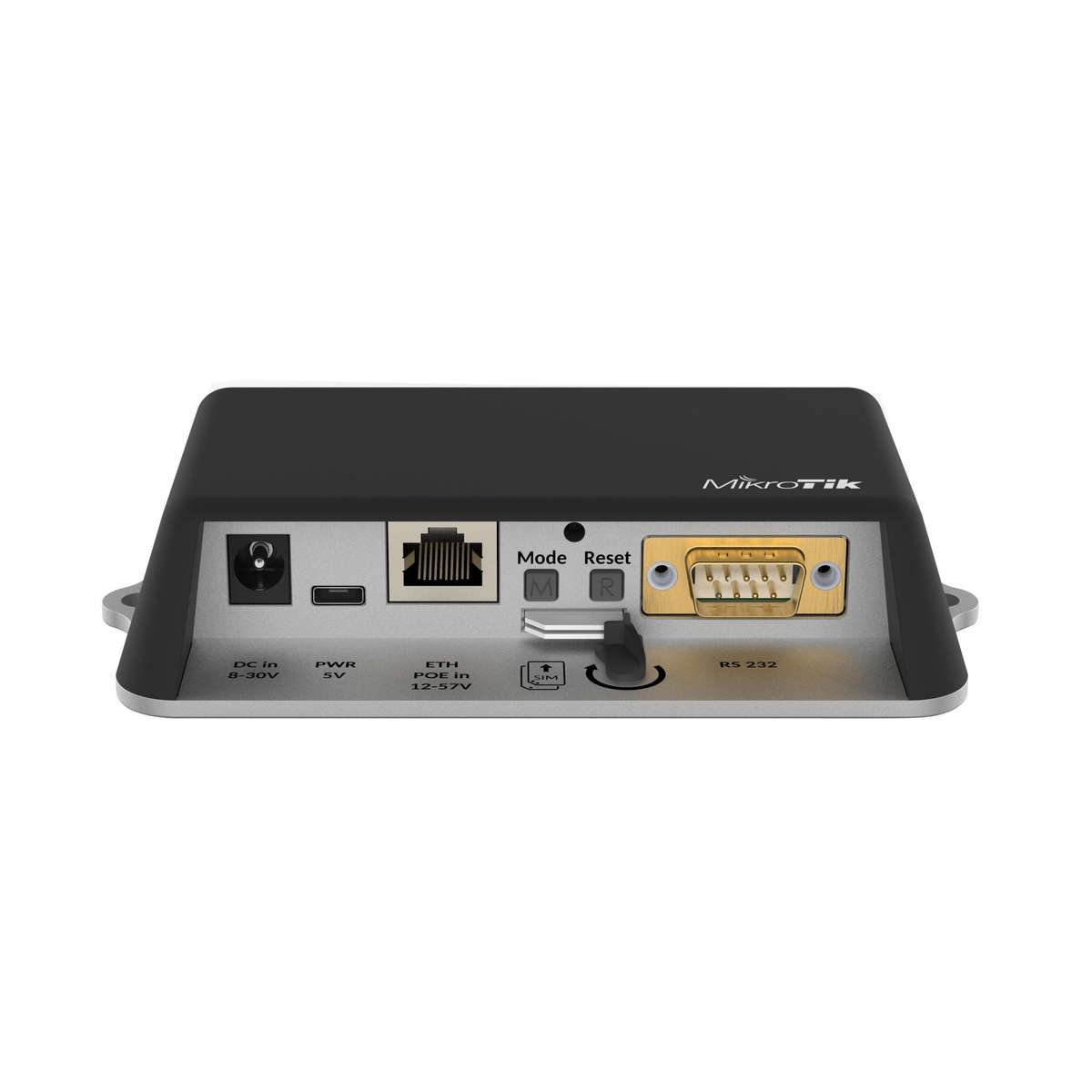

The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 12-57 V PoE-in by Ethernet port, 8-30 V DC jack and 5 V microUSB.
LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately.
Please note: LTE Module and External GPS Antenna sold separately.
Technical Specification
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 139 x 77 x 28,5 mm
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MicroUSB input Voltage: 5 V
Number of DC inputs: 3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage: 8-30 V
Max power consumption: 9 W
Max power consumption without attachments: 4 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 12-57 V
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz chip model: QCA9531
Wireless 2.4 GHz generation: Wi-Fi 4
10/100 Ethernet ports: 1
Number of SIM slots: 2 Modem (Mini SIM)
MiniPCI-e slots: 1
Serial console port: RS232
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: microUSB type AB
Max USB current (A): 1
Mode button: Yes
GNSS standards: GPS
GPS RF connector type: uUFL
