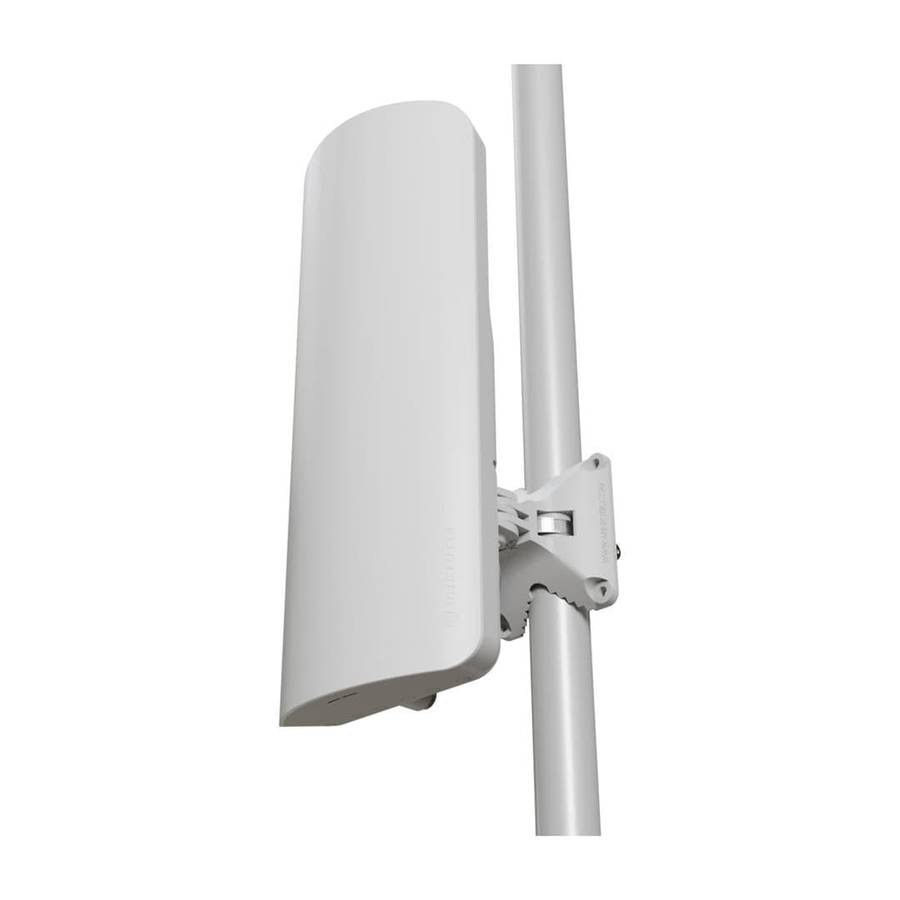

MikroTik mANTBox AX 15s Dual-Band Wi-Fi 6 Outdoor Base Station L22UGS-5HaxD2HaxD-15S
A drop-in Wi-Fi 6 upgrade for the popular mANTBox dual-band sector antenna base stations. One powerful package for all your outdoor network needs, perfect for camps, stadiums and parks.
Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!*

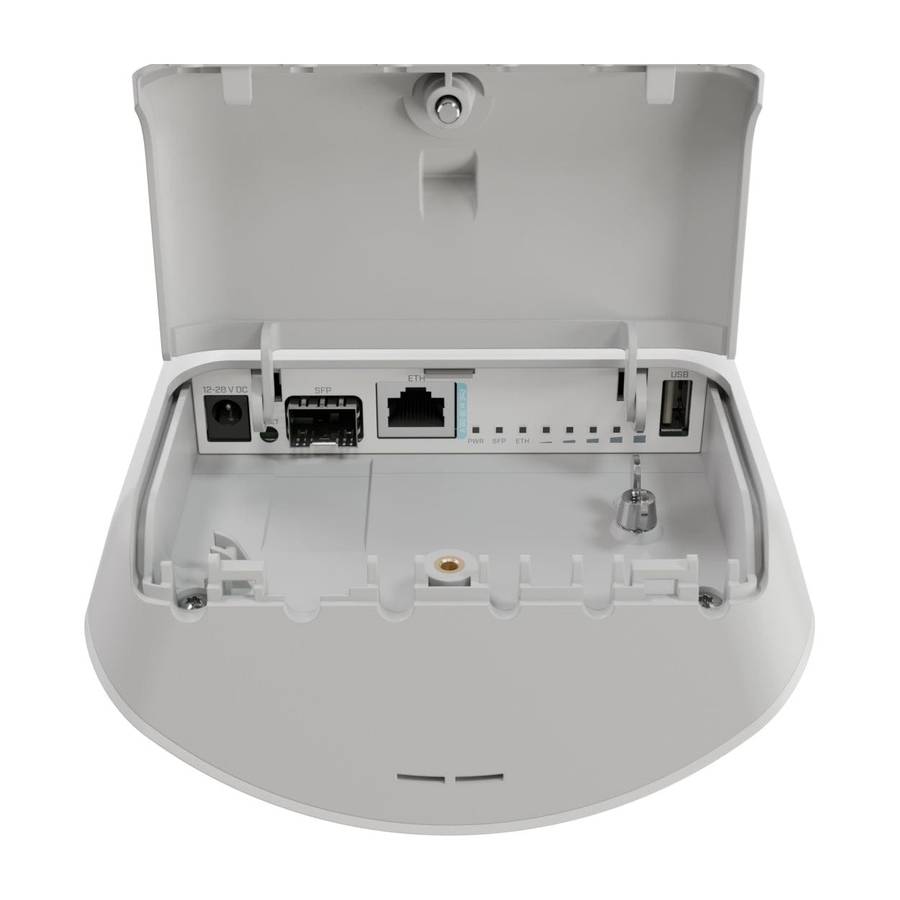

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There's a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
Upgrading your setup to Wi-Fi 6 offers multiple benefits:
Speed: we've seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks
Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.
Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

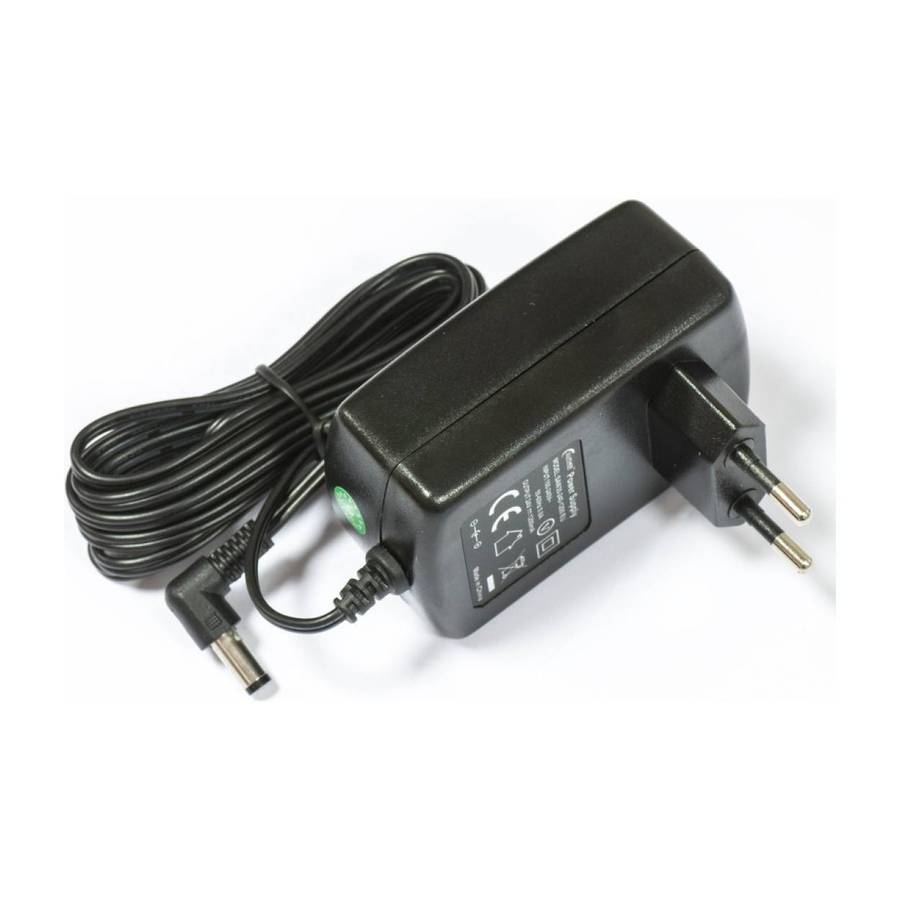

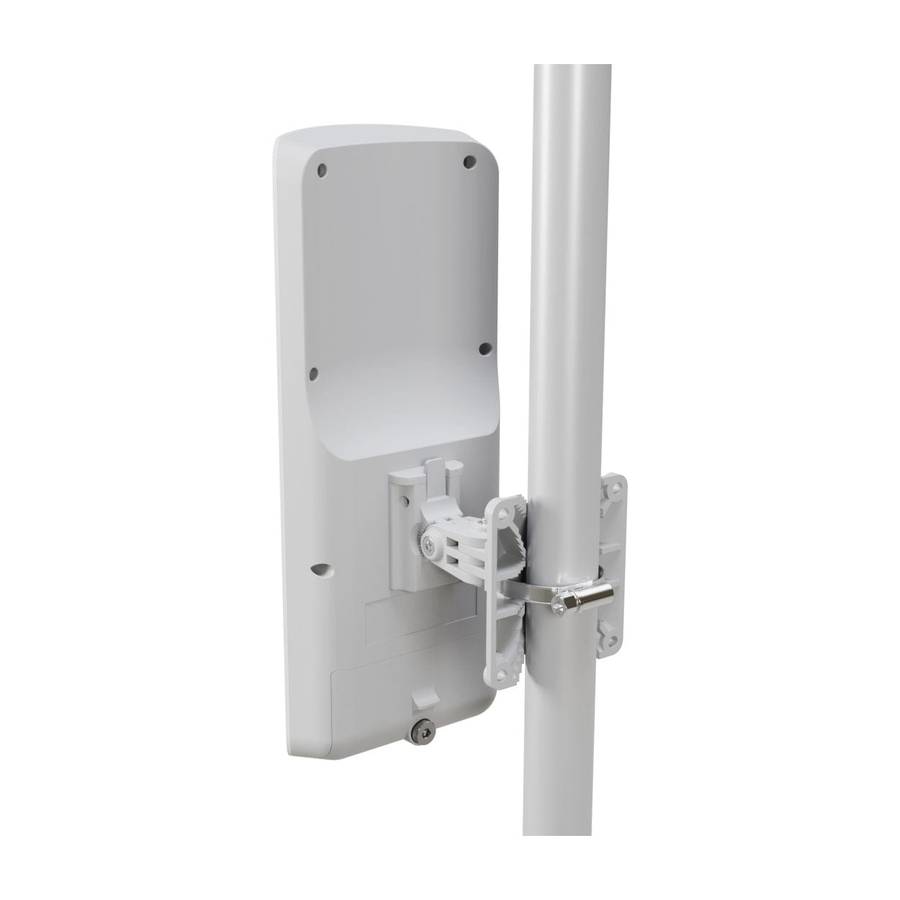

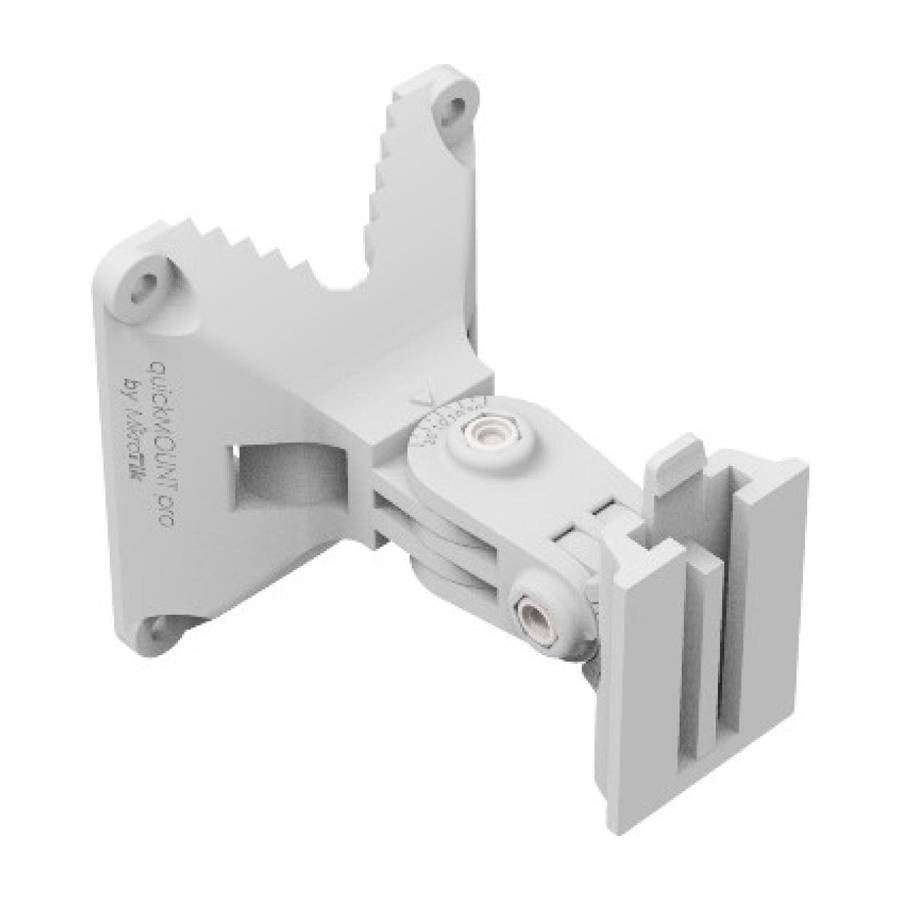

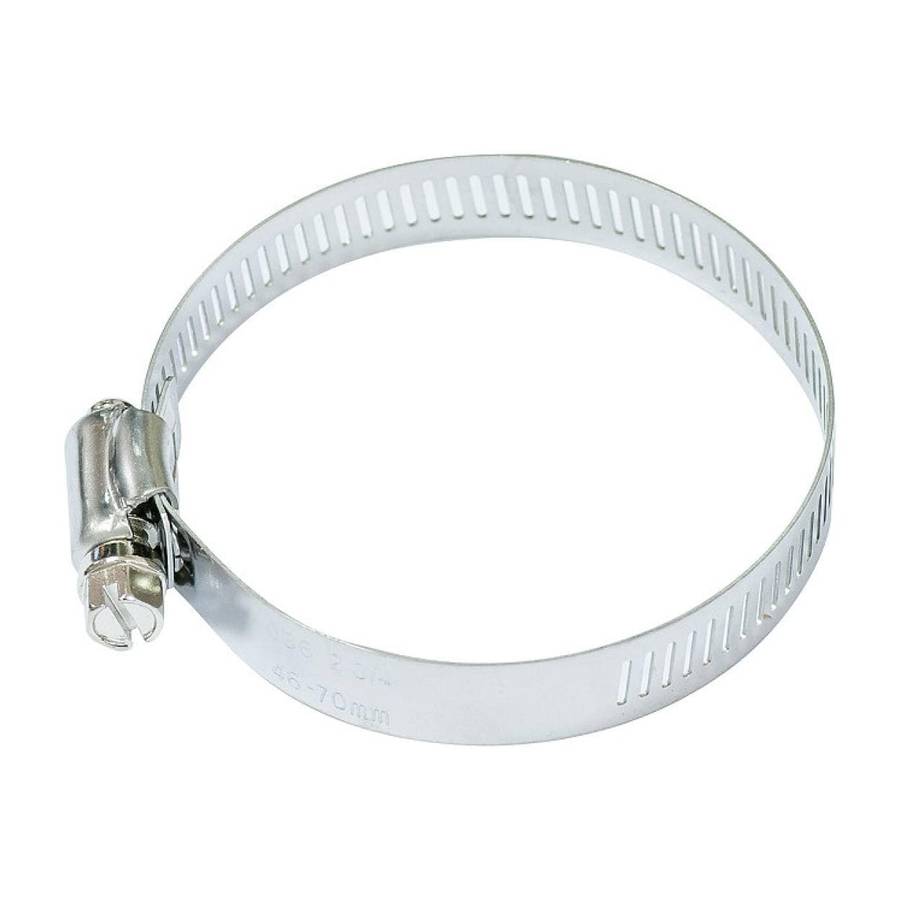

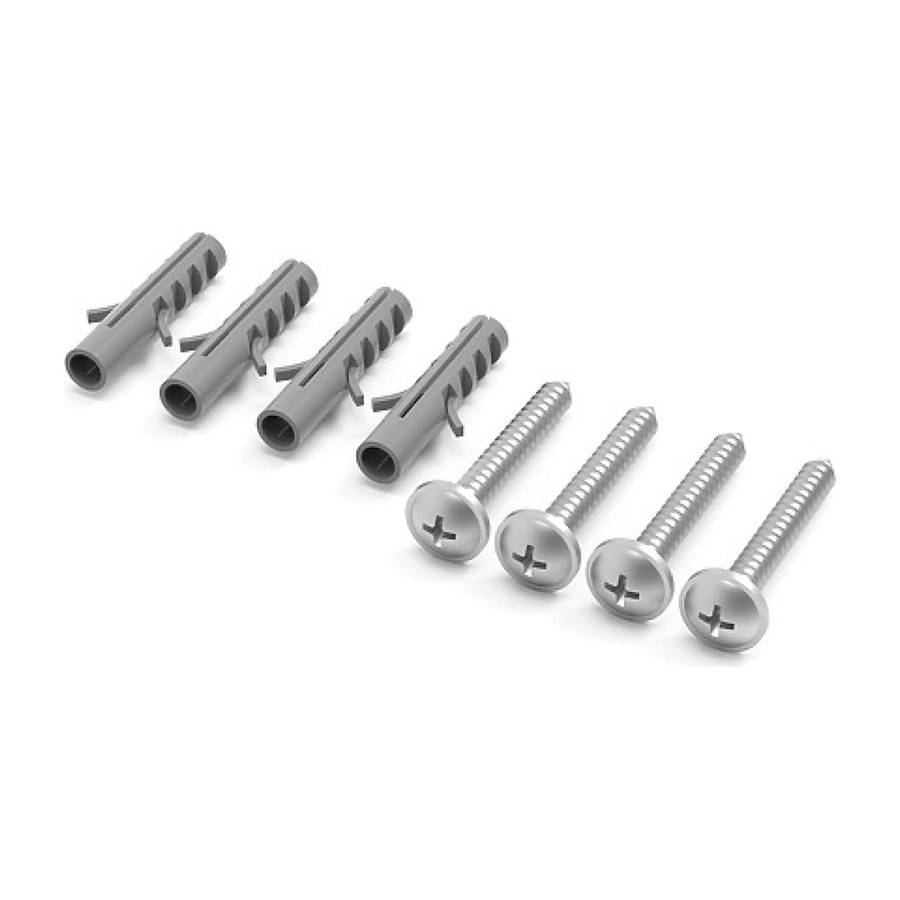

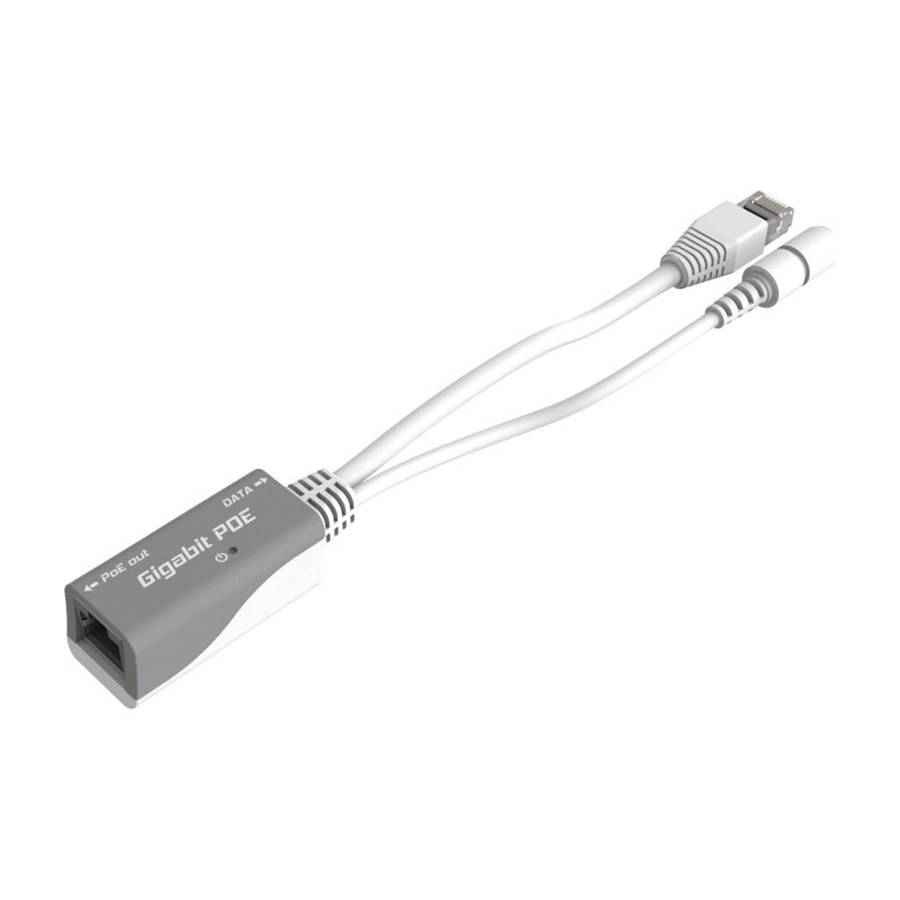

mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.
- It's important to note that while longer links are feasible, their reliability may vary.
Technical Specification
Product: MikroTik L22UGS-5HaxD2HaxD-15S
Architecture: ARM
CPU: IPQ-5010
CPU core count: 2
CPU nominal frequency: 800 MHz
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Powering
- Number of DC inputs: 2 (PoE-IN, DC jack)
- DC jack input Voltage: 12-28 V
- Max power consumption: 21 W
- Max power consumption without attachments: 11 W
- Cooling type: Passive
- PoE in: Passive PoE
- PoE in input Voltage: 18-28 V
Wireless specifications
- Wireless 2.4 GHz Max data rate: 574 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz: 12
- Wireless 2.4 GHz chip model: IPQ-5010
- Wireless 2.4 GHz generation: Wi-Fi 6
- Wireless 5 GHz Max data rate: 2400 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz: 15
- Wireless 5 GHz chip model: QCN-6102
- Wireless 5 GHz generation: Wi-Fi 6
Ethernet
- Ethernet ports: 1x 10/100/1000
Fiber
- SFP ports: 1x (2.5G supported)
Peripherals
- Number of USB ports: 1x
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1.5
