MikroTik mANTBox ax 15s WiFi 6 Integrated Sector | L22UGS-5HaxD2HaxD-15S

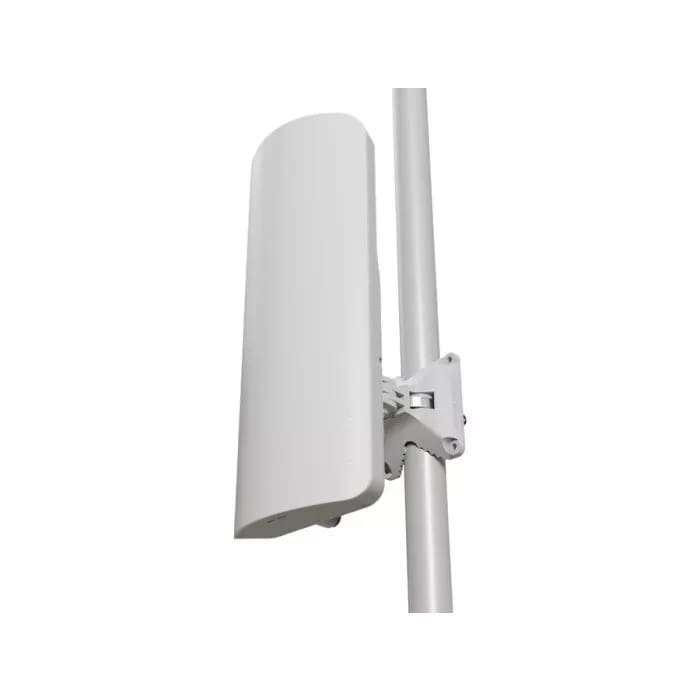

MikroTik's RB-MANTBOX15AX is a dual band, WiFi 6 base station with an integrated sector antenna. The unit features a Gigabit Ethernet Port as well as a 2.5Gbps SFP slot and an aggregate data rate of up to 2974Mbps. On 2.4GHz the antenna offers 12dBi at 90°, and on 5.8GHz 15dBi at 60° coverage.

*Note: Maximum distance must be configured for client connections over 2km.

Specifications:

Antenna Gain: 2.4GHz: 12dBi ; 5.8GHz: 15dBi
Beam-width: 2.4GHz: 90°; 5.8GHz: 60°
Data Rate: 2.4GHz 574Mbps ; 5.8GHz 2400Mbps

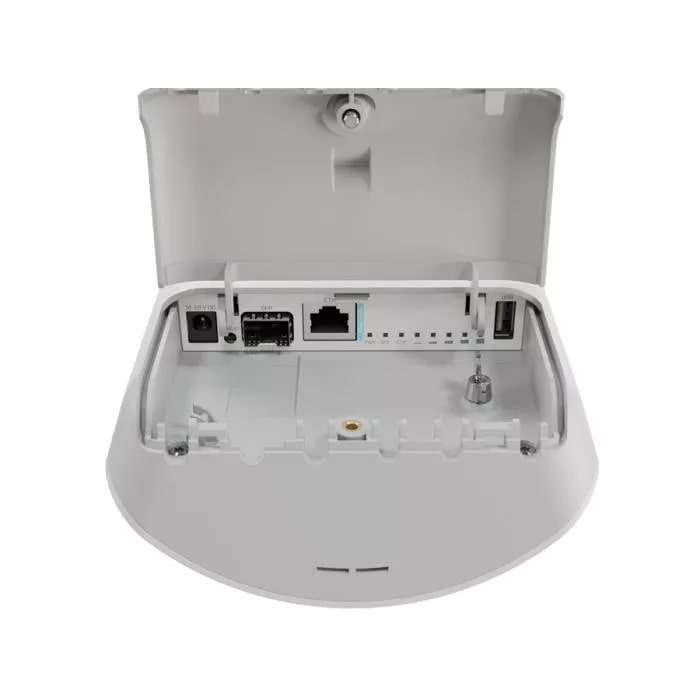

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W

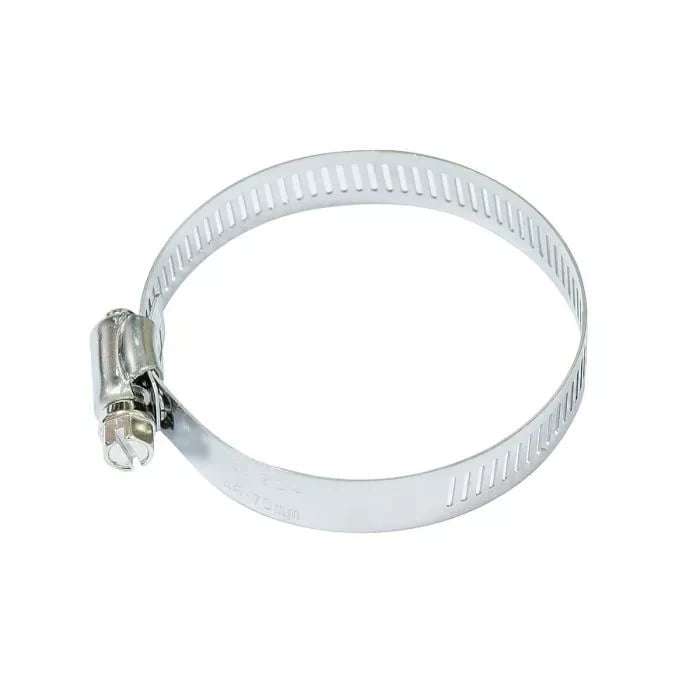

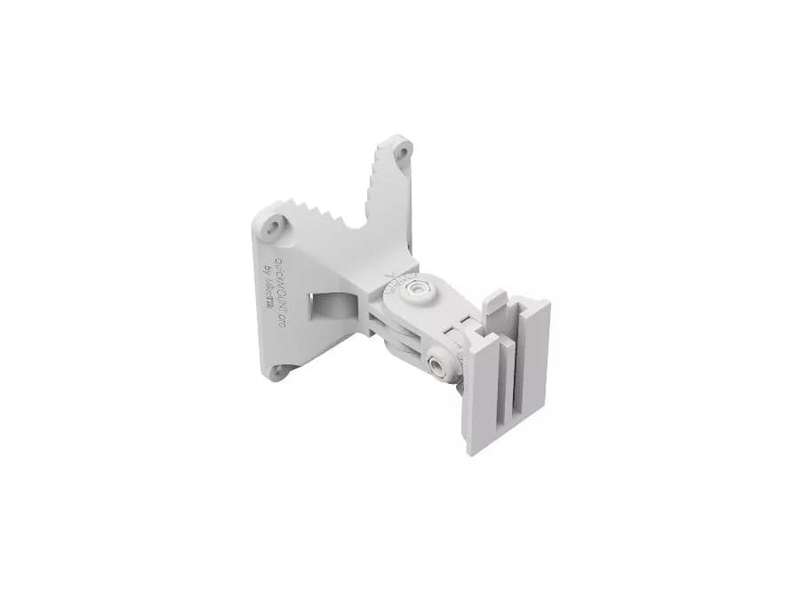

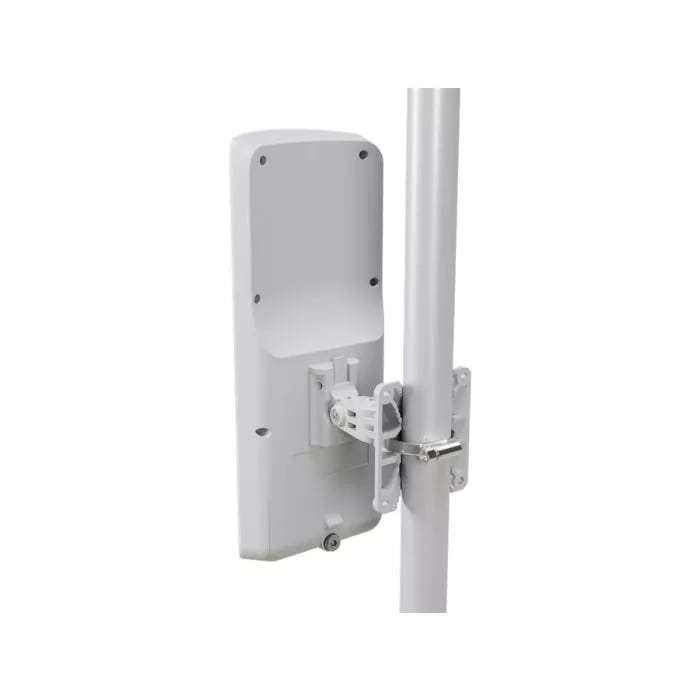

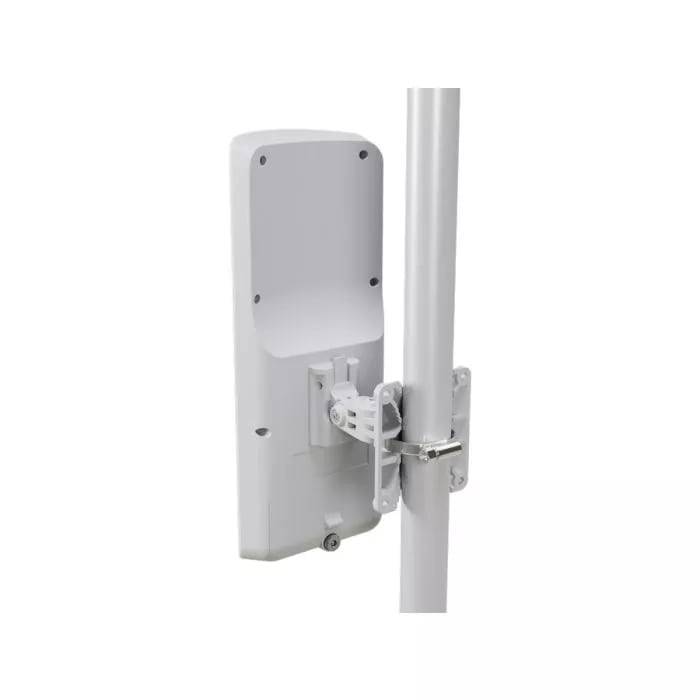

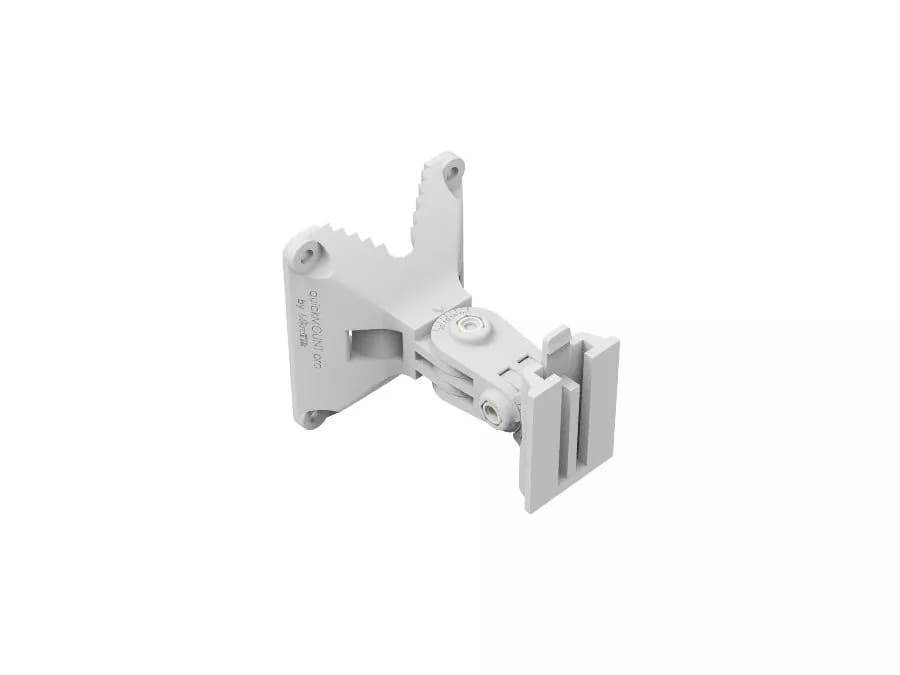

Mounting: Pole-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C

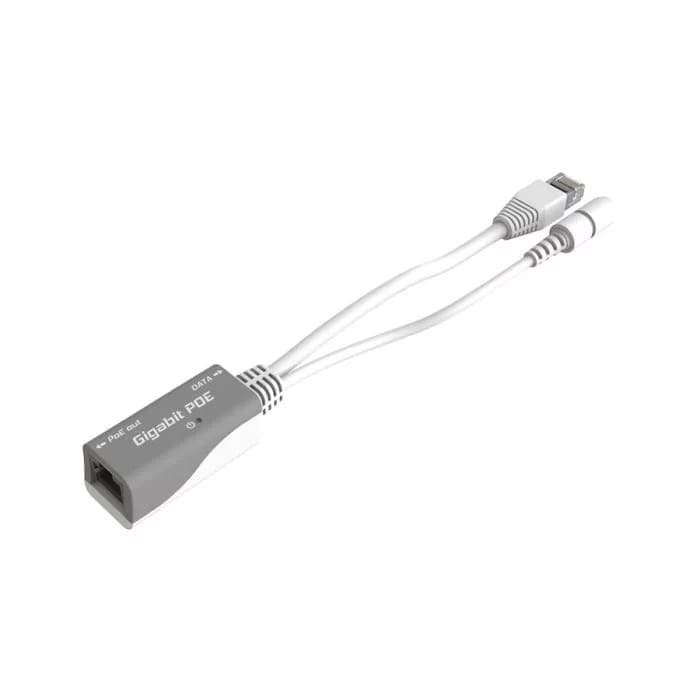

PoE Input: 18-28 (Passive PoE)
PoE Output: None

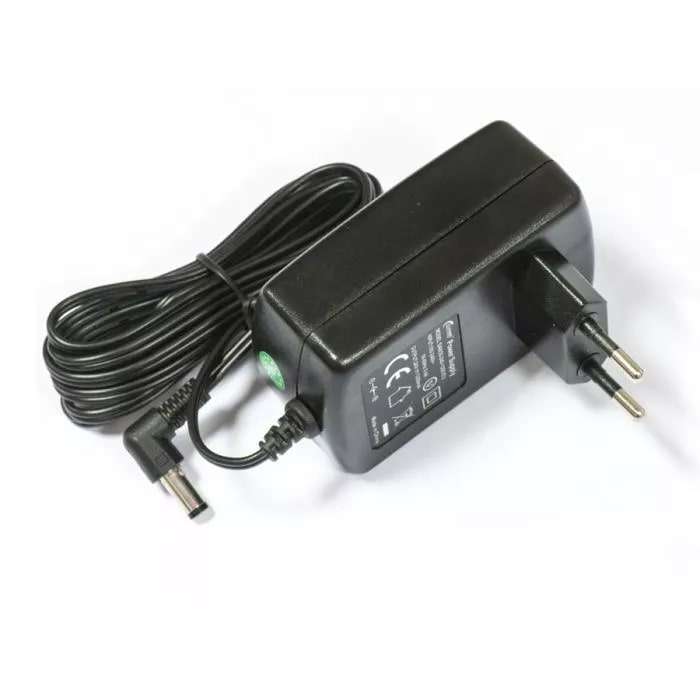

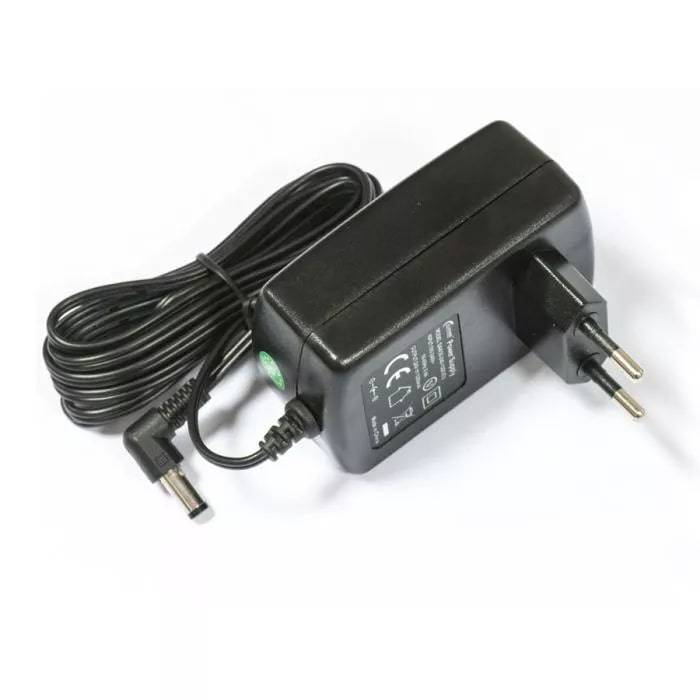

Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12-28V
USB Ports: 1x USB 2.0
Other: 1x 2.5Gbps SFP

Dimensions: 349 x 140 x 82 mm
