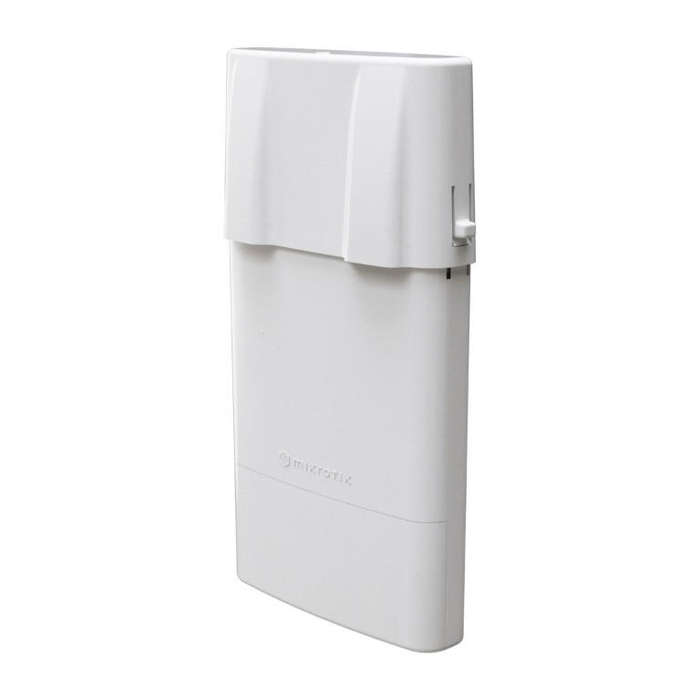

MikroTik NetBox 5 Outdoor Wi-Fi 6 5GHz Radio with 2x RP-SMA Female Connectors L11UG-5HaxD-NB
A Wi-Fi 6 upgrade of the popular NetBox 5. AP/CPE/Point-to-point — it can do it all! PoE-in, DC jack, Gigabit Ethernet, durable outdoor enclosure, modern dual-core ARM CPU, Wi-Fi-6 5GHz wireless.

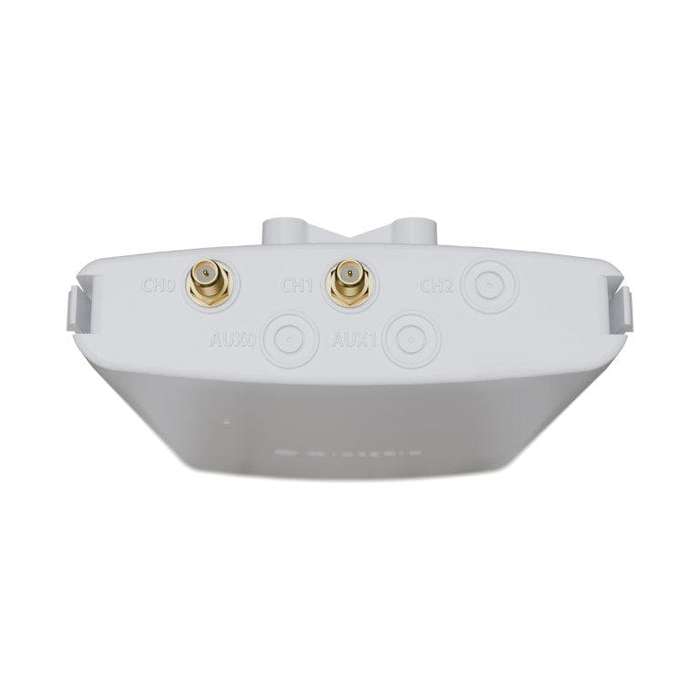

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you've got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*
This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

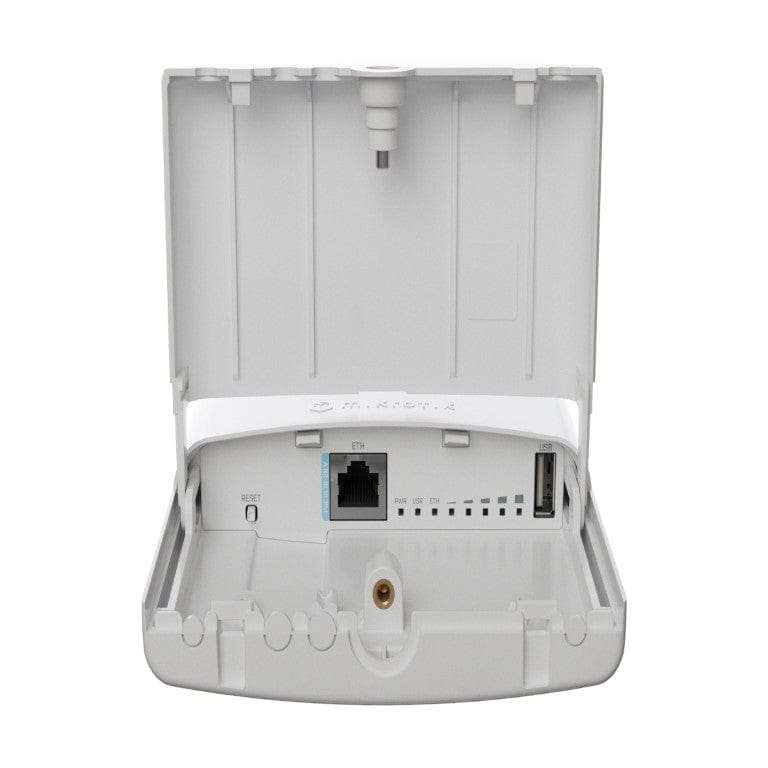

We've designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you'll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
If you've read this far, here's a little bonus feature: we've kept the good old beeper for various alarms or creative outputs.
Note: It's important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.
Technical Specification
Architecture: ARM
CPU: IPQ-5010
CPU core count: 2
CPU nominal frequency: 800 MHz
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Powering
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 15 W
Max power consumption without attachments: 6 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
Wireless specifications
Wireless 5 GHz Max data rate: 2400 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Wireless 5 GHz chip model: QCN-6102
Wireless 5 GHz generation: Wi-Fi 6
Ethernet
10/100/1000 Ethernet ports: 1
Peripherals
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1.5
Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
Beeper: Yes
