No damage or issues. Was used as online hotspare but was never needed.
Upgraded to new infrastructure so unit was pulled from production network.
Does not not include mounting brackets.
Includes power cable.

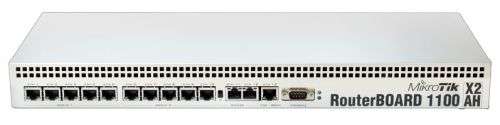

RB1100AHx2
1U rackmount, 13x Gigabit Ethernet, 1066MHz Dual Core CPU, 2GB RAM, RouterOS L6
RB1100AHx2 is 1U rackmount Gigabit Ethernet router - with a dual core CPU, it can reach up to a million packets per second and supports hardware encryption!
It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. 2GB of SODIMM RAM are included, there is one microSD card slot, a beeper and a serial port.
The RB1100AHx2 comes preinstalled in a 1U aluminium rackmount case, power supply and power plug, assembled and ready to deploy.
Specifications
Details
Product codeRB1100AHx2
ArchitecturePPC
CPUP202ASSE2KFB
CPU core count2
CPU nominal frequency1066 MHz
Dimensions1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g
RouterOS license6
Operating SystemRouterOS
Size of RAM2 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-35°C to 70°C
IPsec hardware accelerationYes
Suggested price$349.00
Powering
Details
Number of AC inputs1
AC input range100-240
Number of DC inputs2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage7-28 V
Max power consumption25 W
FAN count2
PoE inPassive PoE
PoE in input Voltage10-28 V
Ethernet
Details
10/100/1000 Ethernet ports13
Peripherals
Details
Memory card typemicroSD
Memory Cards1
Serial console portRS232
Other
Details
CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes
