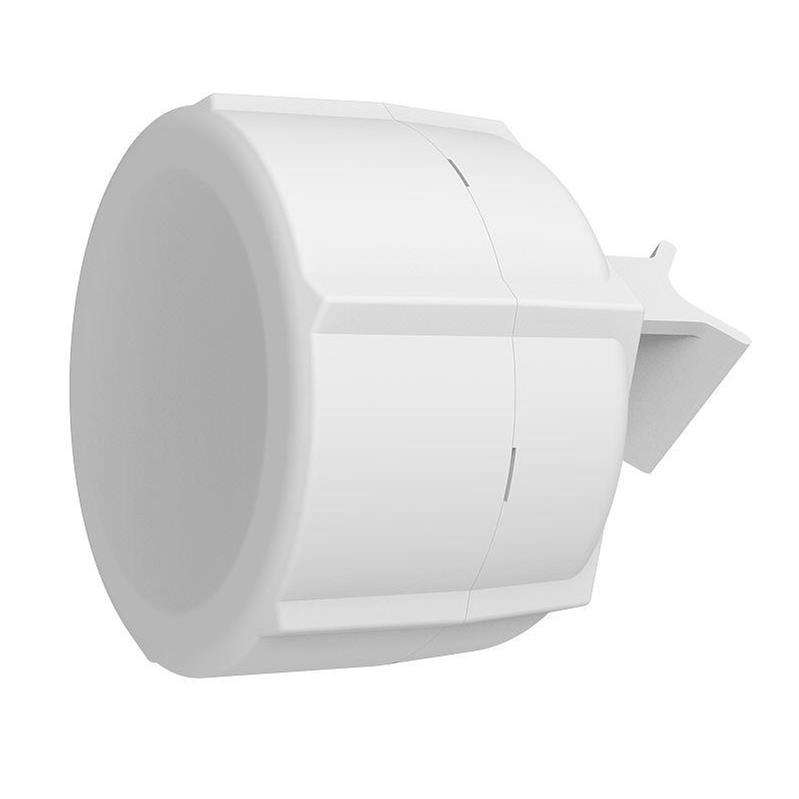

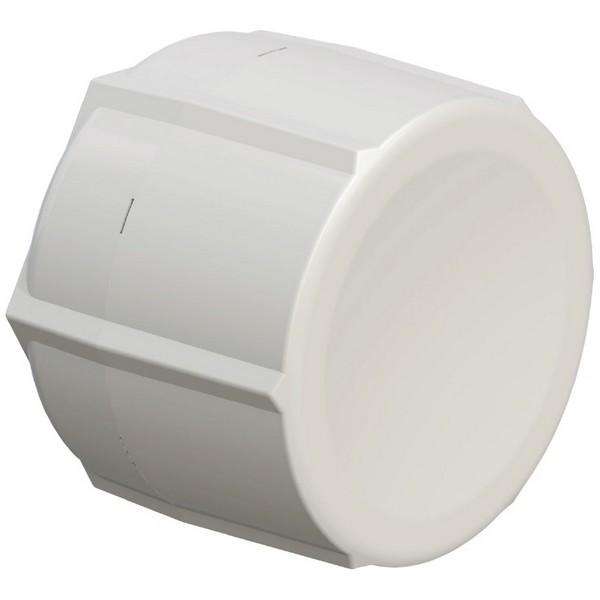

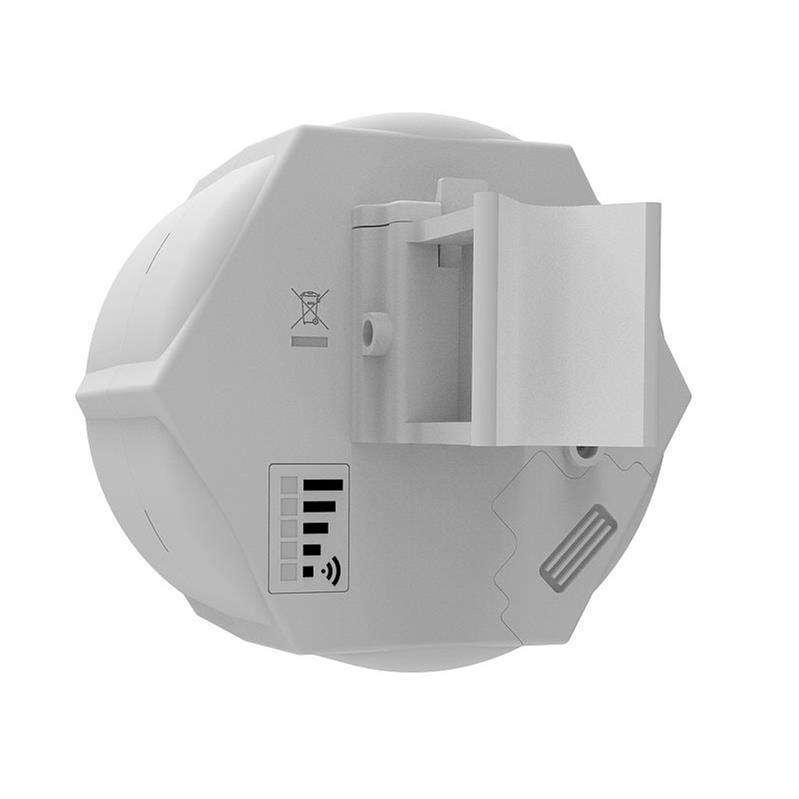

The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to it's professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can't.
In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.
The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.
Technical Specification
Product code: RBSXTR&R11e-LTE
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 140 x 140 x 103 mm
RouterOS license: 3
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 60°C
Powering
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 22 W
Max power consumption without attachments: 5 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 12-57 V
PoE-out
PoE-out ports: Ether2
PoE out: Passive PoE up to 57V
Max out per port output (input 18-30 V): 600 mA
Max out per port output (input 30-57 V): 400 mA
Max total out (A): 600 mA
Mobile
2G Category: Class12
2G bands: 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands: 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands: 38 (2600MHz) / 40 (2300MHz)
Ethernet
10/100 Ethernet ports: 2
Peripherals
Number of SIM slots: 2 Modem (Micro SIM)
MiniPCI-e slots: 1
*Please Note: The second SIM slot is for scripted failover configurations only. It does not automatically failover or do load balancing.
