- AI Deep Learning
- Flexible Pan, Tilt and Zoom Tasks
- Smart Rain-Sensing Wiper (Optional)
- PTZ Auto Tracking
- 25X/30X Optical Zoom
- 200m IR Distance (Wiper version up to 300m)

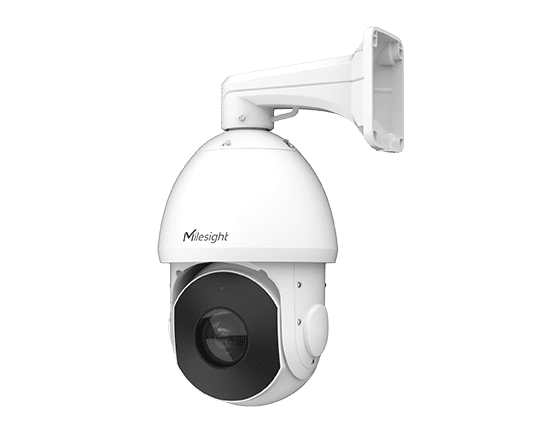

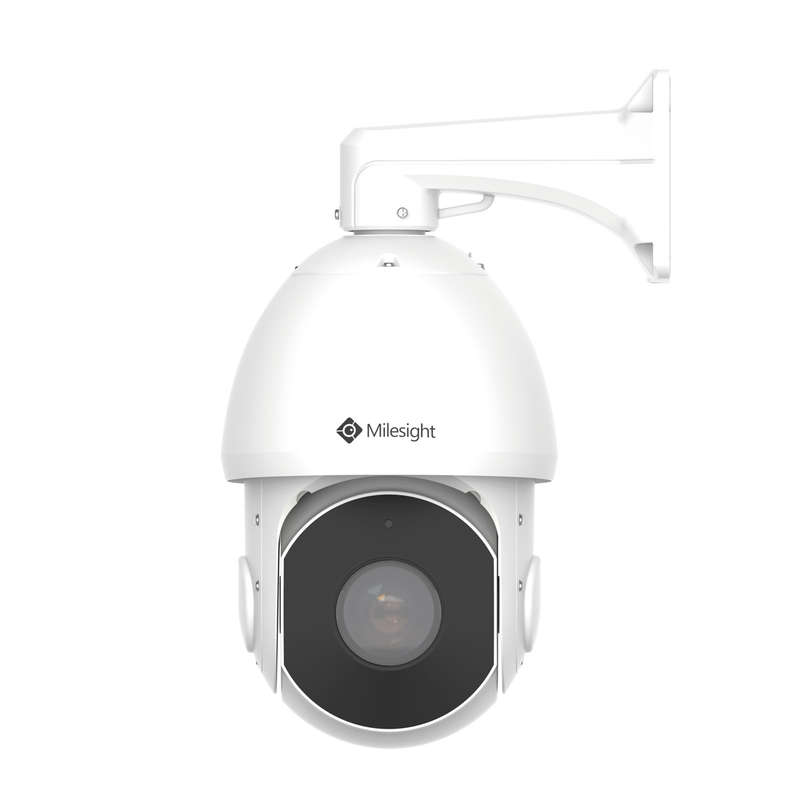

Milesight 2MP 23x AI Speed Dome Network Camera MS-C2941-X23RPC
With Al detection, the Network Camera could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving human or vehicle automatically and adjust zoom status flexibly according to the target distance with the powerful optical zoom capability.
Embedded with optical zoom lens, the cameras' resolution is up to 23x optical zoom which allows the user to zoom up to distant objects while still maintaining the clarity and delivering high quality video over the entire zoom range.
AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.
Flexible Pan, Tilt and Zoom Tasks
Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 95° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.
Smart Rain-Sensing Wiper (Optional)
The rain sensor is used to detect the rain, realizing a smarter control of the wiper function. The speed and frequency of the wiper are intelligently adjusted according to the rain. By smart rain-sensing wiper, Milesight AI Speed Dome can clear rainwater automatically, providing sharp images even in rainy days.
25X/30X Optical Zoom
The 25X/30X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.
PTZ Auto Tracking
Creating a 3D model within the monitoring range, Milesight PTZ cameras mark and track the object after target detection and selection to ensure that the object maintains a fixed proportion for superb tracking views by automatically controlling the direction and zoom-level.
3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.
PTZ Privacy Mask
Adopting anonymization and limitation functionality for further privacy protection, Milesight supports 3D Privacy Mask in all Al PTZ cameras with their coordinate system, which keeps the specified area masked from monitoring through manual operations no matter how cameras pan/tilt/zoom.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, Smart IR II Technology, and up to 5MP High Resolution features make it well-suited for various special circumstances.
Features
- AI Deep Learning
- Flexible Pan, Tilt and Zoom Tasks
- PTZ Auto Tracking
- 23x Optical Zoom
- 200m IR Distance
Technical Specification
Camera
Product: 2MP 23x AI Speed Dome Network Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Max. Image Resolution: 1920 x 1080
Min. Illumination: Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on
WDR: 140dB Super WDR
Shutter Time: 1/100000s1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Lens
Focal Length: 5 - 117mm, 23x Optical Zoom
Zoom Speed: Approx 6s (Wide-Tele)
Field of View: H60°- H3° / D69° - D4° / V35° - V2°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 100/1500mm (Wide/Tele)
Aperture: F1.5 - F3.5
Iris Control: Auto
IR
Irradiation Distance: Up to 200m
Irradiation Angle: Auto/Manual
Interface
Ethernet: 1x RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 4/2
Power Supply: PoE (802.3at) or AC 24V 3A ±10% (*Power supply is not included)
