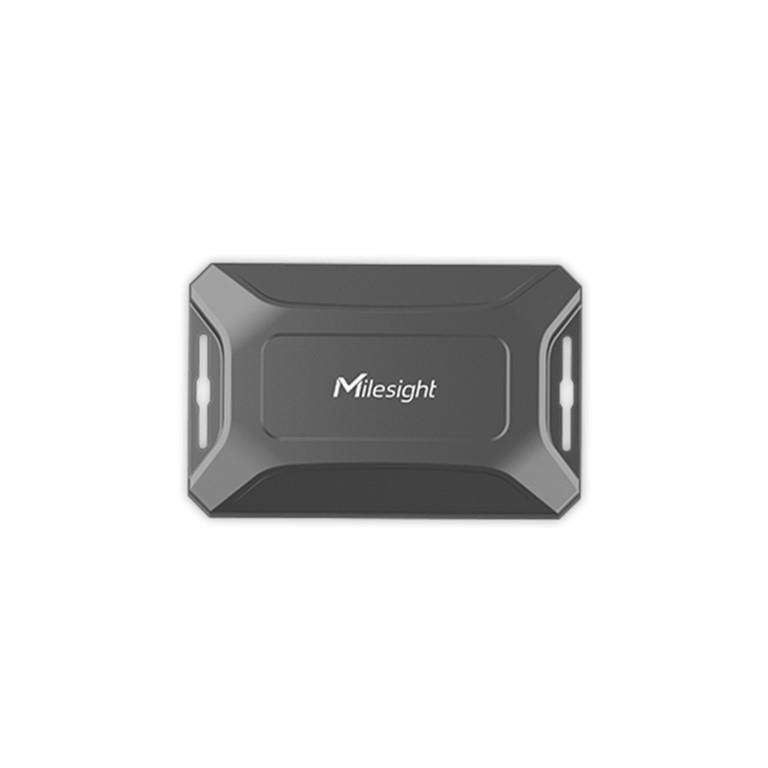

Milesight AT101 Outdoor Asset Tracker AT101-868M
Milesight AT101 is an exceptional outdoor tracker that utilizes GNSS and Wi-Fi AP MAC Address Scanning to provide highly accurate positioning data. Additionally, it has tilt and temperature sensors for more extensive data collection and application in various scenarios.
The device is designed with IP67 and IK09 ratings to cater to different environments.
AT101 collaborates with Milesight LoRaWAN gateway and mainstream LoRaWAN network servers with low power consumption, allowing it to operate for over 15 years with twice-daily reports. By integrating with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can remotely and visually manage all sensor data.
Features
- Highly-Accurate GNSS Positioning
- Cooperate with Wi-Fi Positioning
- Support Geofencing for Asset Protection
- Provide Motion/Periodic/Timing Modes
- IP67 Rated for Harsh Environment
- IK09 Rated Transceiver for Impact Resistance
- 4x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
- Easy Configuration via NFC or Bluetooth
- Over 15 Years Battery Life
Technical Specification
Wireless Transmission
Protocol: LoRaWAN
Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity: -137 dBm -300bps
Mode: OTAA/ABP Class A
Measurement
GNSS Positioning
Position Accuracy (CEP): 5.0m (Direct Line of Sight)
Resolution: Longitude/Latitude: 0.000001
Time To First Fix
- Cold Start: 37s Average
- Hot Start: 1s Average
Sensitivity
- Tracking: -167dBm
- Reacquisition: -160 dBm
- Cold Start: -148dBm
- Hot Start: -159 dBm
Wi-Fi Positioning
Wi-Fi Positioning: Indoor asset location using Wi-Fi access point scanning (device does not connect to Wi-Fi)
Wi-Fi Parameters: BSSID, RSSI
Wi-Fi Standard: 802.11b/g/n 2.4GHz
Device Motion
Status: Normal/Tilt
Operation
Power On & Off: NFC, Power Button (Internal)
Configuration: NFC, Bluetooth 5.3
