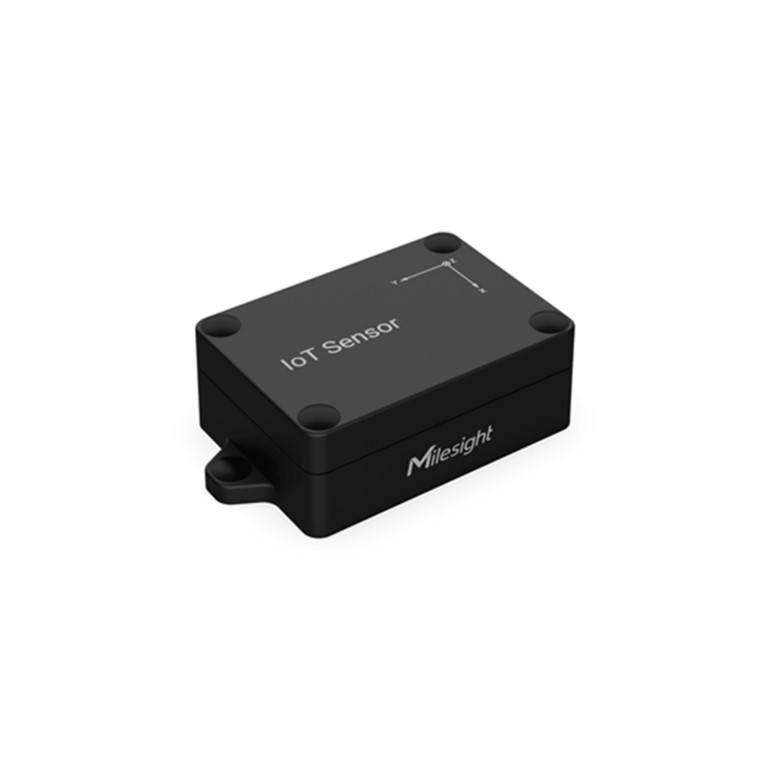

Milesight EM310 Tilt Sensor EM310-TILT-868M

EM310-TILT is a LoRaWAN tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, EM310-TILT can be installed to the objects easily to measure its X, Y, Z tilt angles. It can also detect the movement based on angle changes and send threshold alarms. Compliant with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely.

EM310-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.

Key Features

• 2x 3500 mAh ER17505 Li-SOCl2 Batteries
• Over 5 years (6 Triggers an hour)
• IP67
• Axiz X, Y, Z
• Black

Technical Specification

Wireless Transmission
Technology: LoRaWAN
Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity: -137 dBm -300bps
Mode: OTAA/ABP Class A

Measurement
Axis: X, Y, Z
Range: - 90° ~ +90°
Accuracy: ± 1°
Resolution: 0.01°

Others
Configuration: NFC Configuration via Mobile App
Button: 1x Reset Button (Internal)
