Mimosa A6 Supercharged PTMP Wi-Fi 6E-Based 8x8 Beamforming Access Point
The A6 fixed wireless access point delivers up to 7 Gbps capacity, unbelievable subscriber capacity, and synchronized network scalability for unlicensed, outdoor, fixed wireless PTMP networks. The first future-proof solution delivering fiber fast gigabit speeds to subscribers via wireless, the A6 extends beyond the traditional 5 GHz band to take advantage of expanded 160 MHz channels in the new, low-noise 6 GHz band.
Scalable, Low-Noise 6 GHz Band
Previous OFDM-based fixed wireless solutions lacked subscriber scalability, requiring costly investment in too many AP sites, introducing massive interference in an already crowded 5 GHz band, with no noise mitigation capabilities.
Superior Wi-Fi 6E Technology
Armed with the latest Wi-Fi 6E technologies, including 8x8 MU-MIMO, 1024-QAM, noise fighting
beamforming, massively reduced resource unit size, low-latency OFDMA, and network wide GPS sync, the A6 resets nearly every performance and scalability bar in the industry.
Extreme Performance and Value
Pairing these incredible innovations with brand new, interference-free 6 GHz spectrum, the A6 can deliver gigabit+ subscriber speeds needed for advanced rural broadband projects, and the high-scalability to tackle the most dense, urban NLOS areas cost effectively.
Technical Specification
Performance
Max Throughput: 7 Gbps IP aggregate UL/DL (9608 Mbps PHY)
Wireless Protocols: WiFi Interop; TDMA (future release)
Radio
MIMO & Modulation: 8x8 MU-MIMO; OFDMA, BPSK-1024QAM
Bandwidth: Single or dual 20/40/80/160 MHz channels
Frequency Range: 5150—6425 MHz, Restricted by country of operation
Max Output Power: 29 dBm
Rx Sensitivity: - 1024 QAM
Antenna
Gain: 24 dBi with adaptive beamforming
Beamwidth (3 dB): 90º azimuth, 7º elevation
Front-to-Back Ratio: >30 dB
Cross-Polar Isolation: >20 dB
Polarization: Dual-linear XPIC
Power
Max Power Consumption: 40 W
System Power Method: Outdoor PoE or DC
System Lightning & ESD Protection: 6 kV
PoE Power Supply: Passive PoE compliant, 48—56 V (not included)
Features
10 Gigabit Ethernet: SFP+ (optical)
Management Services: MMP support; Netconf (future support); SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; IPv4 and IPv6
Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across all channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
Security: WPA3; AES; RADIUS; 802.1x authorization
QoS: Supports 4 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user-configurable precedence
VLAN: Per subscriber VLAN, Q-in-Q, triple tagging;
Management VLAN
Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
GPS Location: GNSS-1 (GPS + GLONASS), Regulatory and Compliance
Physical
Dimensions: Height: 490 mm x Width: 295 mm x Depth: 75 mm
Weight: 3.95 kg
Enclosure Characteristics: Outdoor UV-stabilized, engineered polymer with integrated metal mounting back
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 39 kg - 160 km/h (86 lbs - 100 mph)

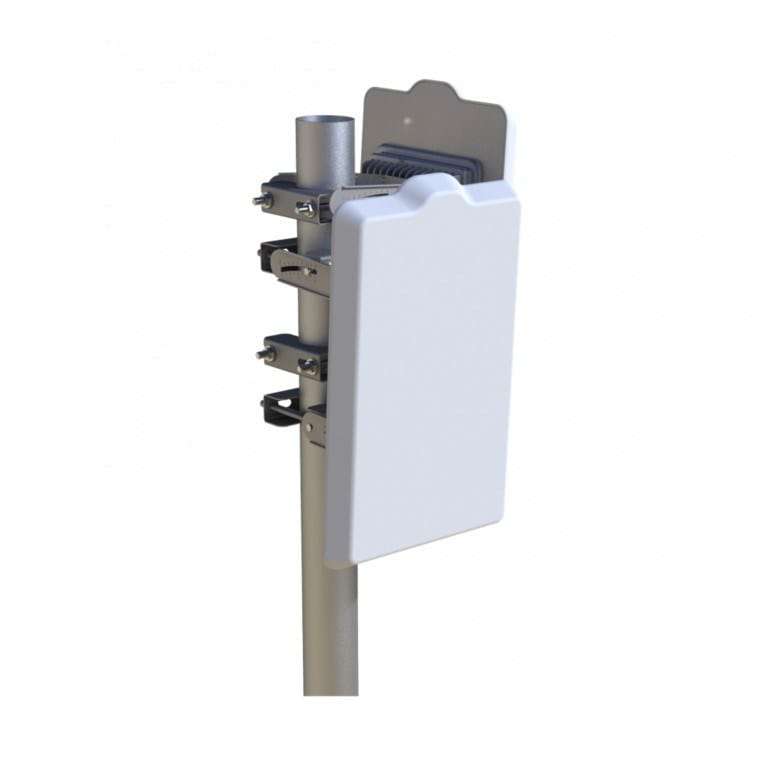

Mounting: Dual standard pole straps for 30 mm (1.18") to 90 mm (3.54") OD pipes
Network Interface: (1) GbE copper PoE, (1) 10 GbE SFP+ (optical)
