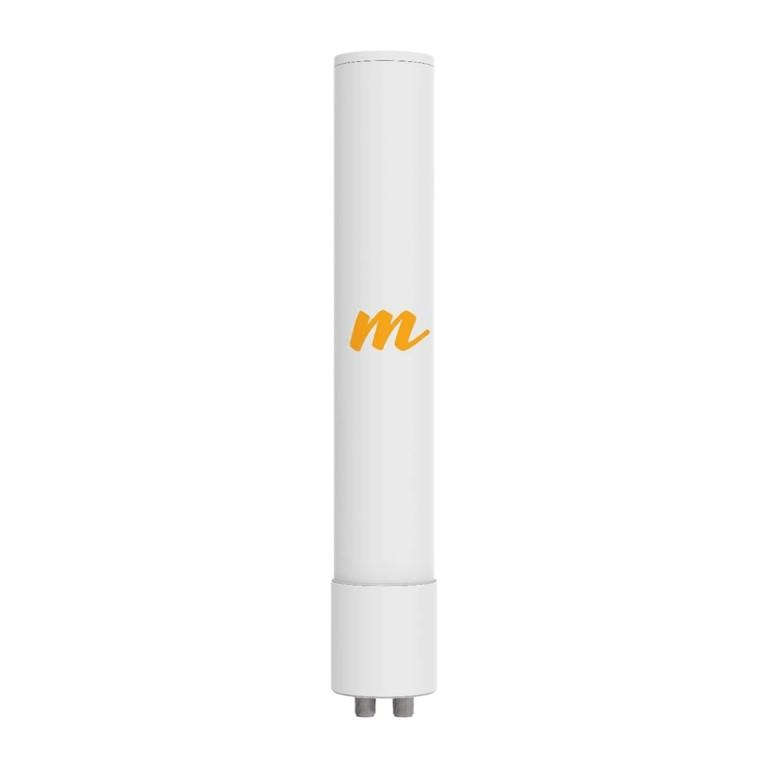

Mimosa N5-360 15dBi 360-degree Beamforming Antenna 100-00075
Introducing the industry's first 4-port, beamforming, 360º antenna specifically designed exclusively for Mimosa's A5c access point. The N5-360 antenna's unique design incorporates quad-180º overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.
Features
Longer-Range Micropops

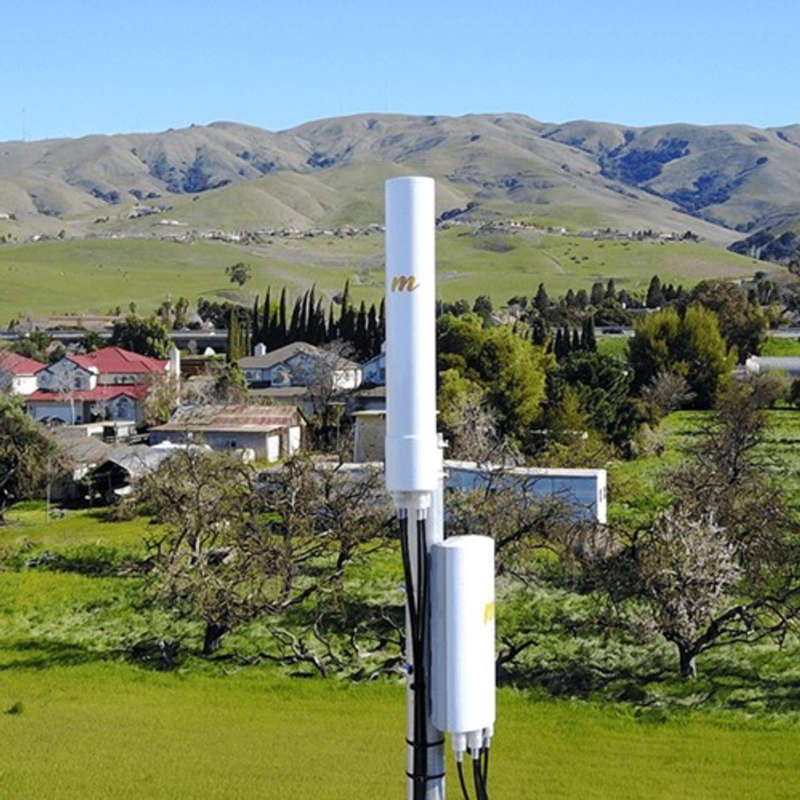

Double the coverage area with 60% longer reach for MicroPoP deployments, easily handling deployments to homes within 500 m in dense, last mile, suburban areas.
âWide-Frequency Range
The only antenna available for use between 4.9 to 6.4 GHz, delivering incredible spectrum flexibility.
Optimized For 360º Throughput
Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.
Beamforming Innovation
3 dB performance enhancement in a compact design, with all new quad-180º overlapping antenna polarizations that enable range-extending, beamforming technology.
Technical Specification
Antenna
Gain: 15 dBi
Frequency: 4900—6400 MHz
Polarization: Dual H+V
Azimuth Beamwidth: 360º via 4 overlapping 180º sectors
Elevation Beamwidth (3 db): 8º
Downtilt: 2º
Cross-Polar Isolation: >40 dB
Port-to-Port Isolation: >25 dB
Impedance: 50
Max Input Power: 30 dBm
Physical
Dimensions: Height: 492 mm including connectors , Width: 80 mm
Weight: 1.11 kg

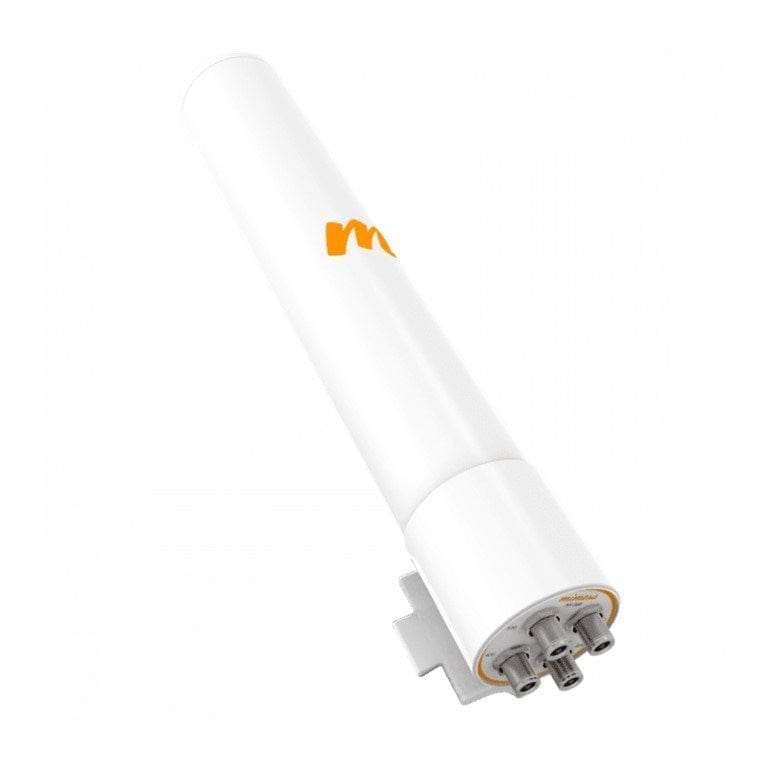

RF Connectors: 4 N-type female
RF Connectors Position: Bottom of antenna
Enclosure Characteristics: Outdoor, UV stabilized, engineered polymer
Mounting: Dual-pole strap feed points integrated into painted metal base; Max pole diameter is 5.7 cm
Wind Survivability: 200 km/h
Wind Loading: 4.77 kg - 160 km/h Environmental
Outdoor Ingress Protection Rating: IP67
Operating Temperature: -40°C to +55°C
Operating Humidity: 5 to 100% condensing
Operating Altitude: 4,420 m max
Shock & Vibration: ETS 300-019-2-4 class 4M5
