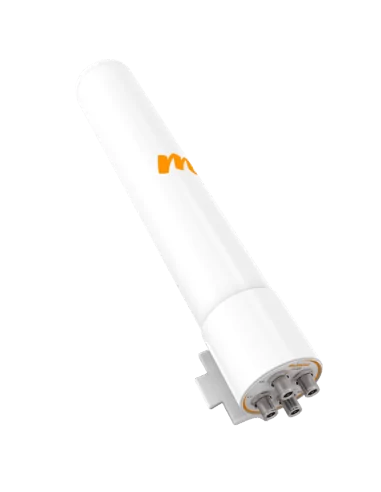

Mimosa N5-360 Antenna for A5c Access Point Long-Range 360º Coverage with Beamforming.

Features :

The Mimosa N5-360 Antenna is a groundbreaking solution, designed specifically to enhance MicroPoP (Micro Point of Presence) deployments. This antenna is the first in the industry to offer 4-stream beamforming technology with a full 360º coverage. Engineered to work with Mimosa A5c Access Points, it features a unique quad-180º overlapping polarization, expanding the deployment range and boosting the performance of wireless connections.

Key Features:

• Expanded Coverage: Increases the reach of MicroPoP deployments by 40%, covering up to 500 meters in suburban, last-mile applications.
• Wide Frequency Range: Supports frequencies from 4.9 GHz to 6.4 GHz, offering flexibility across licensed public safety bands and other regions where permissible.
• 360º Throughput Optimization: Maximizes the C5 and C5c subscriber speeds by providing balanced coverage, ensuring high throughput across a full 360º azimuth.
• Innovative Beamforming: The N5-360 incorporates 3 dB of beamforming gain, which improves range while maintaining compact size and efficient performance.

Technical Specifications:

• Gain: 15 dBi
• Frequency Range: 4.9 to 6.4 GHz
• Polarization: Dual Horizontal and Vertical
• Beamwidth: 360º (via 4 overlapping 180º sectors)
• Elevation Beamwidth (3 dB): 8º
• Impedance: 50
• Maximum Input Power: 30 dBm

Physical Features:

• Dimensions: Height: 492 mm, Width: 80 mm
• Weight: 1.11 kg
• RF Connectors: 4 N-type female, positioned at the bottom of the antenna
• Mounting: Includes dual-pole strap mounting, with a max pole diameter of 5.7 cm
• Wind Survivability: Withstands up to 200 km/h winds

Environmental Protection:

• Ingress Protection Rating: IP67 (for outdoor durability)
• Operating Temperature: -40°C to +55°C
• Shock & Vibration: Rated per ETS 300-019-2-4 class 4M5

This antenna is designed to meet RoHS compliance and ensure reliable performance in various demanding outdoor environments.
