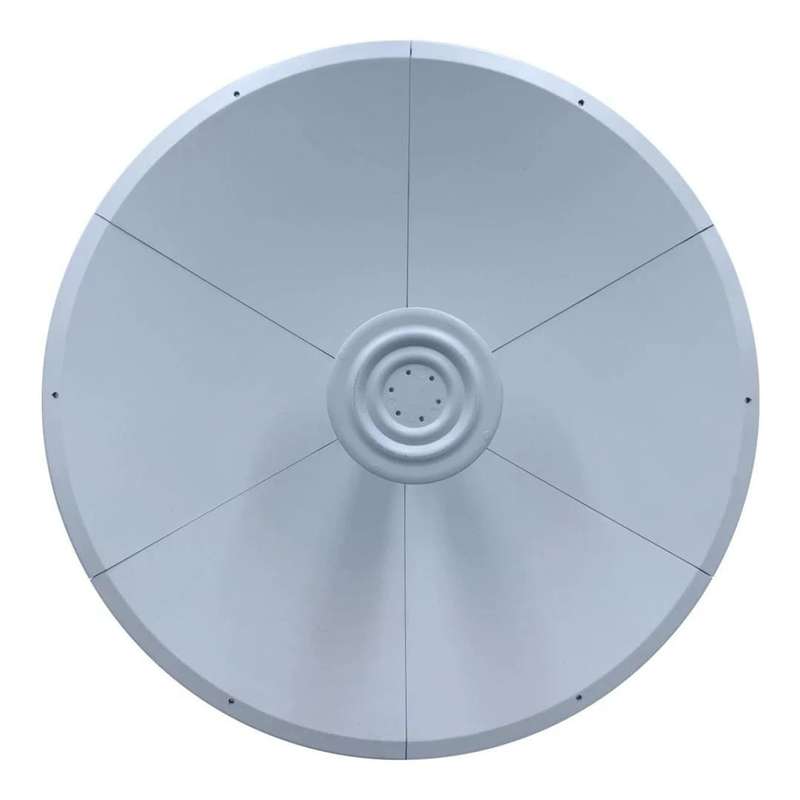

Mimosa Networks N5-X30 Single Twist-On Dish Antenna 100-00124
The N5-X30kp is a versatile 2-pack MIMO dish antenna, operating in the 4.9-6.4 GHz frequency range. Designed for Mimosa XSeries products, it features twist-on adapters for radio heads, 30 dB port-to-port isolation, and a 35 dB front-to-back ratio. With collapsible design for easy transport and quick installation, this 2-foot dish antenna has 50 Ohms impedance, 50 Watts maximum input power, and operates between -40 to 70 °C. Constructed with an aluminum base, DC grounded for
lightning protection, it has a 5-degree horizontal and vertical HPBW. The N5-X30kp supports vertical/horizontal or ±45 degree slant polarization, is reliable, rugged, and suitable for various applications, including enterprise, industrial, telecom operators, radio OEMs, backhaul engineers, and network deployment.
Features:
- 2-Foot Parabolic Dish Antenna
- Optimized front to back and side lobes suppression exceeding ETSI 302 217 Class I, eliminating interference
- Heavy-duty bracket with fine elevation and azimuth adjustmen
- 4.9—6.4 GHz
Technical Specification:
- Features:
- Twist-on antenna for Mimosa C5x, C6x and B5x PTP
- 2-Foot parabolic antenna - 2 pack
- Collapsible style dish for easy transport
- Applications:
- Long distance backhaul
- Point to point data links
- 4.9/5.1/5.3/5.4/5.8/6 GHz ISM and UNII band
- Wi-Fi 2.4 and Wi-Fi 5
- All aluminum dish material
- Dual linear polarization (V/H or +/-45 deg.)
- 4900 to 6400 MHz, 31 dBi Gain
- MIMO capability available
- 4.9 GHz public safety
- Licensed frequencies up to 6.4 GHz
- Configuration:
- Design Application
- Band Band Type
- Radiation Pattern
- Polarization
- Connector Type
- Lightning
- Protection
- Dish
- MIMO
- Multi
- Directional
- H/V or 45 Deg. Slant
- C5X, C6X, B5X DC
- Grounded
- Electrical Specifications:
- Frequency Range: 4,900 to 6,400 MHz
- Impedance: 50 Ohms
- Front to Back Ratio: 35 dB
- Port to Port Isolation: 30 dB
- Horizontal (Azimuth) HPBW: 5 Degrees
- Vertical (Elevation) HPBW: 5 Degrees
- Input Power: 50 Watts
- Mechanical Specifications:
- Base Material: Aluminum
- Mounting Application: U-bolt
- Size:
- Length: 23.622 in [600 mm]
- Width: 23.622 in [600 mm]
- Height: 13 in [330.2 mm]
- Mounting Mast Diameter: 1.1811 to 3.1496 in [30.00 to 80.00 mm]
- Weight: 14.33 lbs [6.5 kg]
- Environmental Specifications:
- Temperature:
- Operating Range: -40 to +70 deg C
