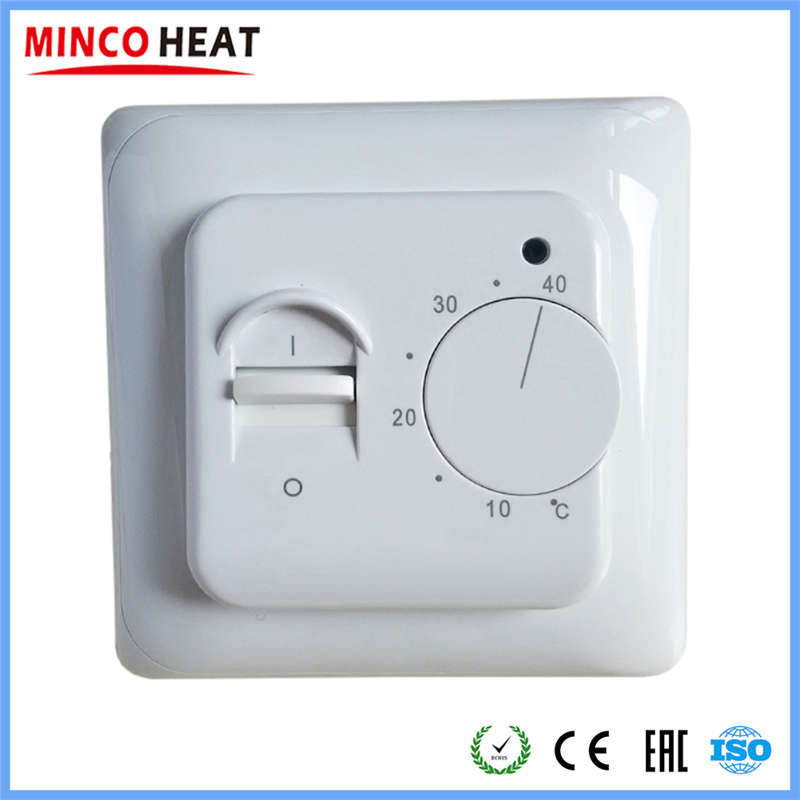

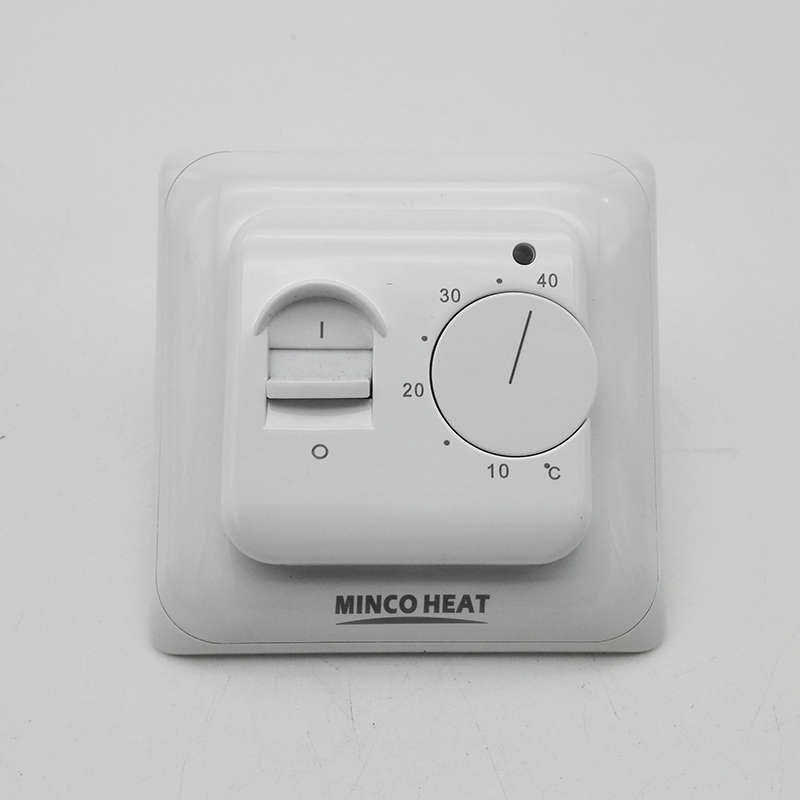

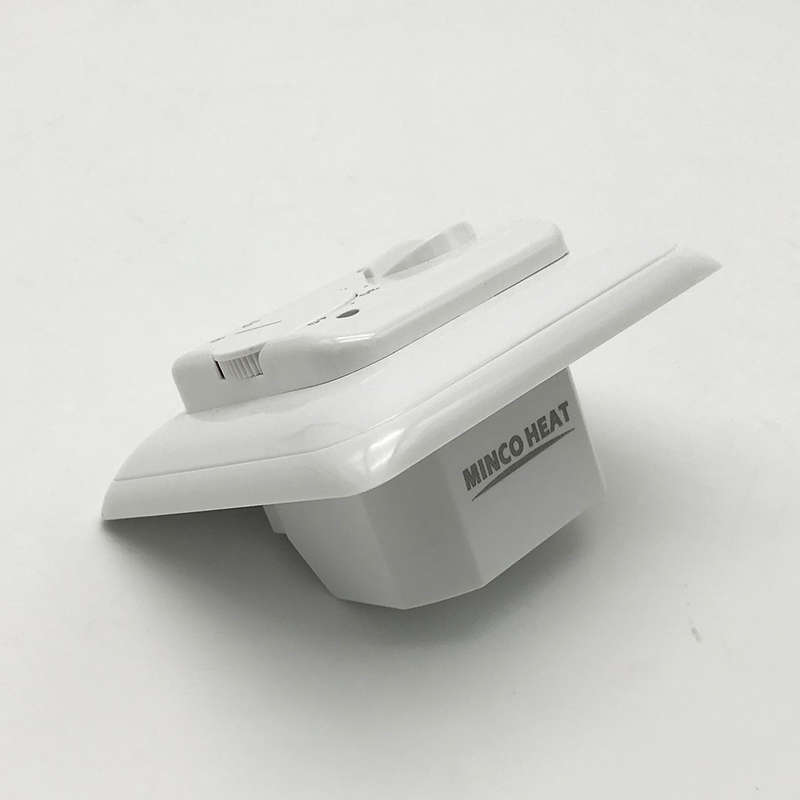

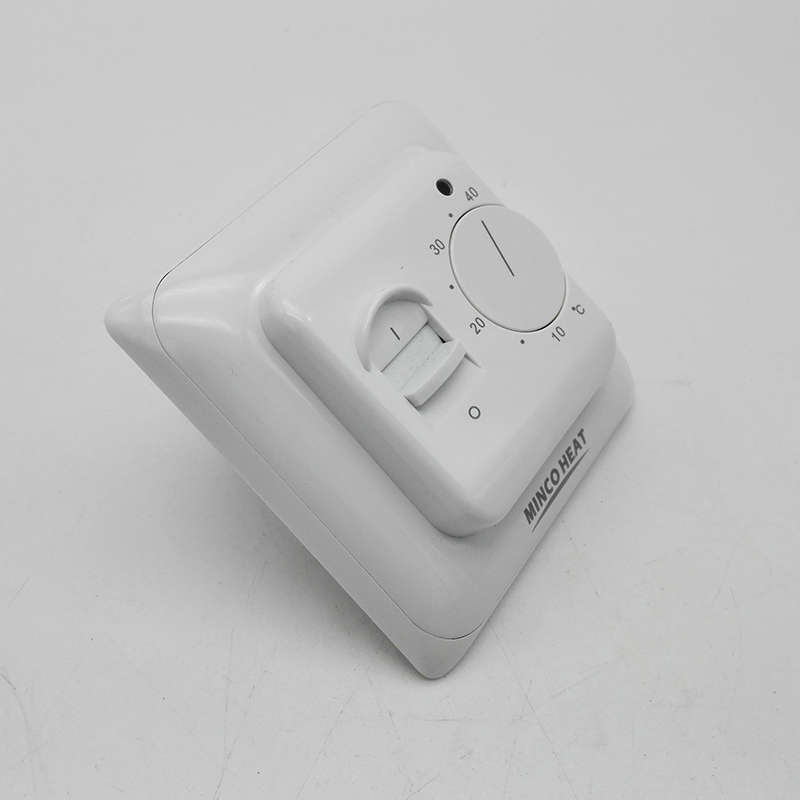

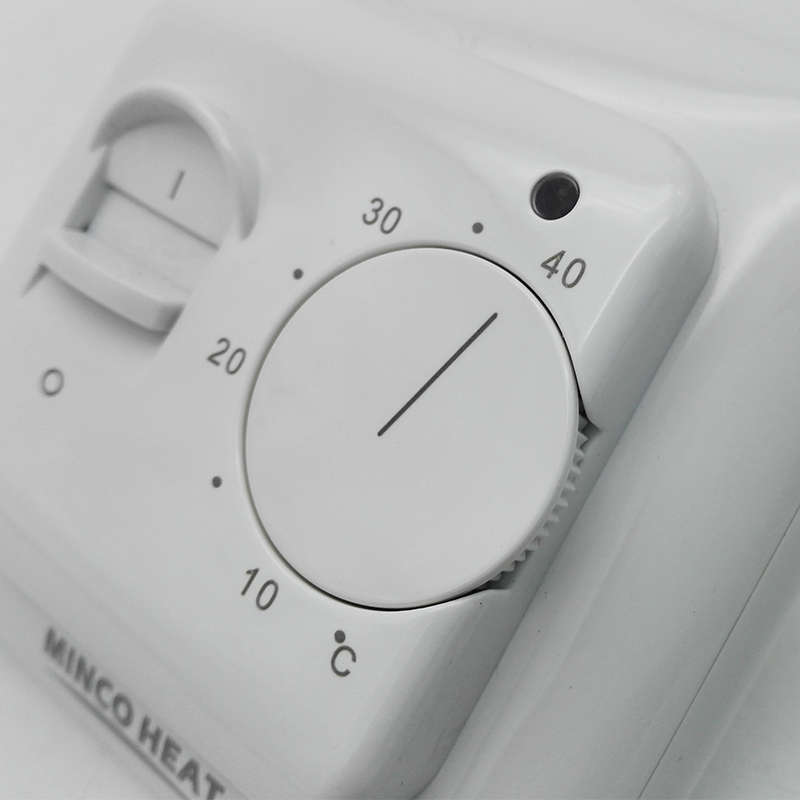

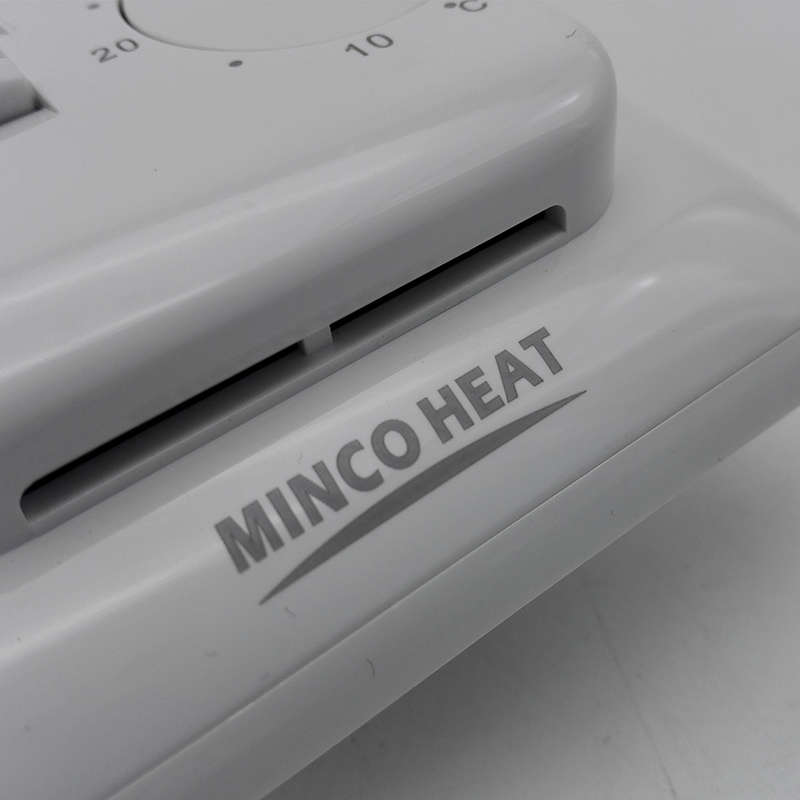

Product | MINCO HEAT M5 Mechanical Thermostat Floor Electric Heating Temperature Controller Gas Boiler Heating Temperature Regulator For Home |

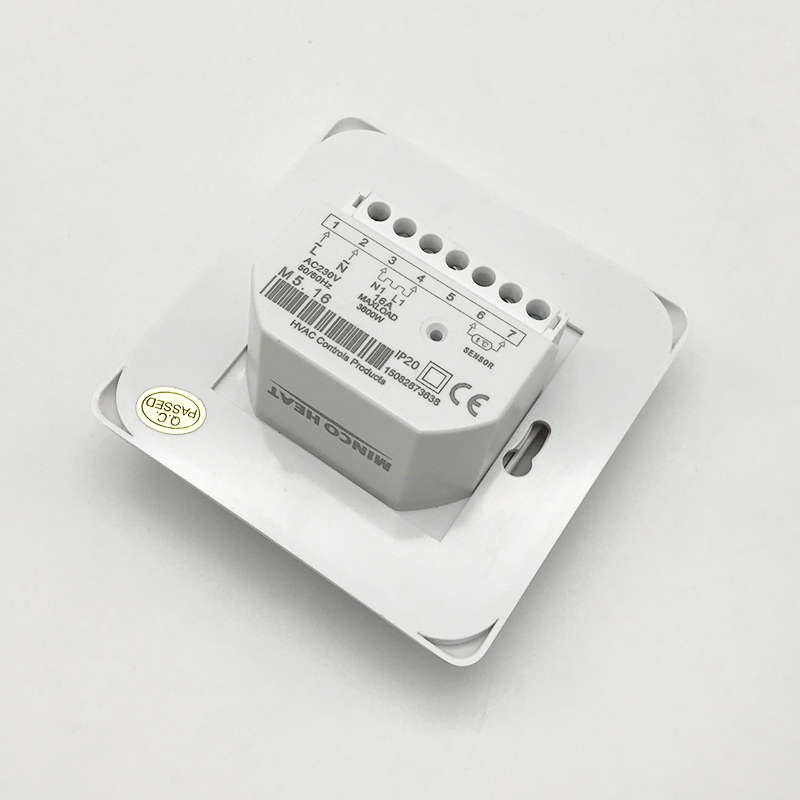

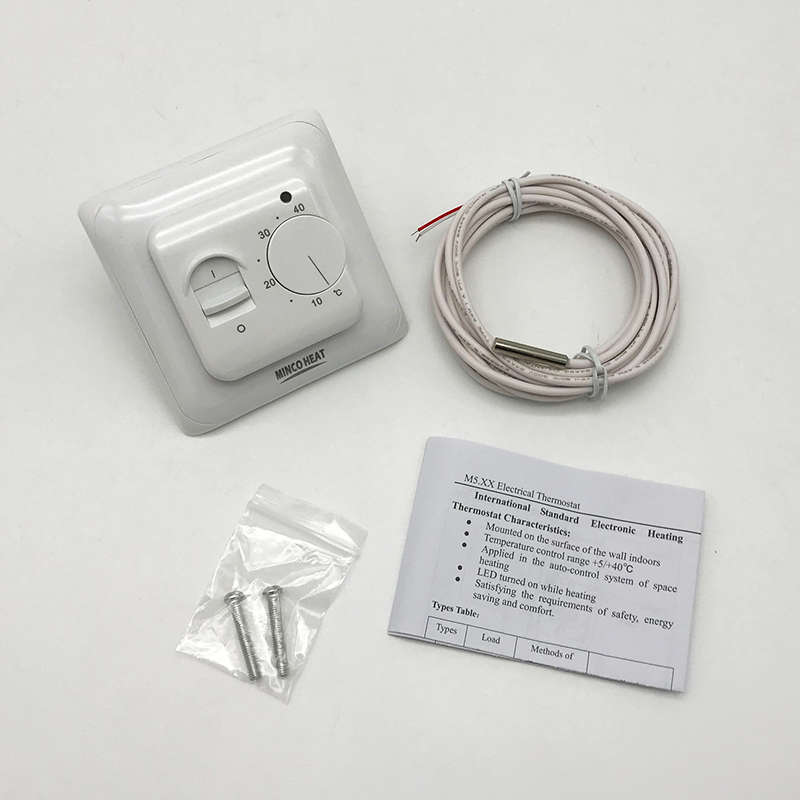

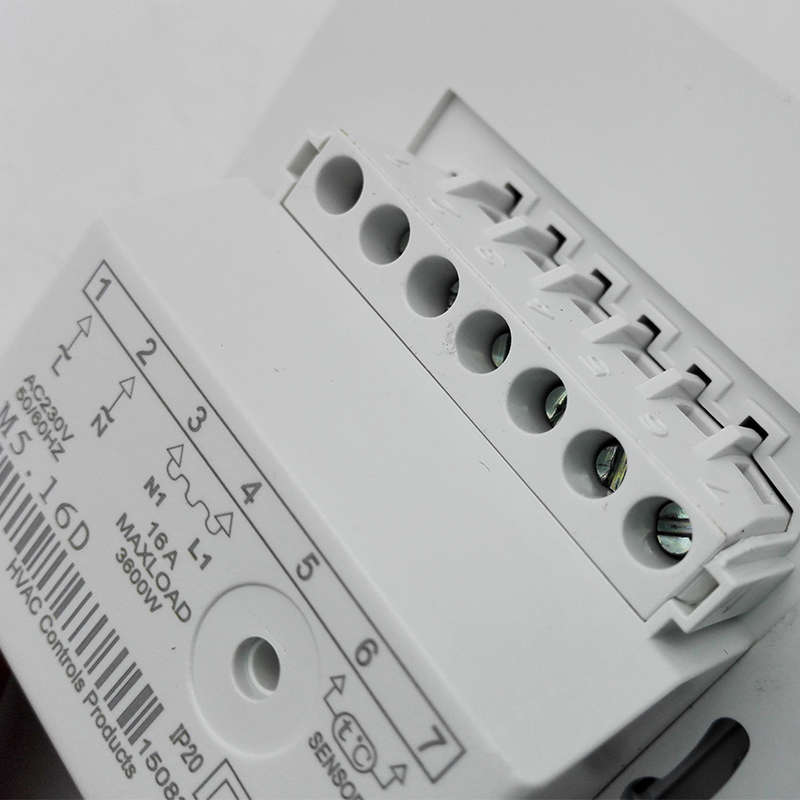

Technical Parameter: Voltage: 220VAC/230VAC 50/60Hz Power consumption: 5VA Temperature control range: 5℃~40℃ Limit temperature range: 25℃~55℃ Energy saving temperature: 5℃ Temperature switch deviation: ±0.5K Environment temperature: -5℃~50℃ Shell protection: IP20 External sensor: lead length is 3 meters Shell material: flame retardant PC Installation Precautions: ▲ If the extension cord uses two cores in a multi-core cable, the remaining cable cores cannot be used for power supply (for example, for heating cables), so as to prevent the thermostat from being interfered by voltage signals. If the extension cable has a shielded wire, do not ground the shielded wire, but connect it to the No. 7 terminal of the thermostat. The best installation method is to use a separate extension cable and place it in a separate sleeve. ▲ Please install the thermostat on the wall where the surrounding air flows freely. Note: Please ensure that the installation location of the thermostat is not affected by other heat sources (such as sunlight), airflow of doors and windows, or external wall temperature. Package Includes: 1 x Room thermostat 2 x Screws 1 x External sensor 1 x User manual |
