| Image sensor | 1/2.8" SONY Hi3516C+IMX322 |
| Min.illumination | Color: 0.01Lux @(F1.2,AGC ON) Black/white: 0.02 Lux @ (F1.2,AGC ON) |
| Shutter | 1/50(1/60)s - 1/10,000 s |
| Lens | 3.7mm pinhole lens |
| Compression | |
| Video compression | H.264 HighProfile, JPEG snapshot |
| Bite rate | 100Kbps~6Mbps |
| Image | |
| Max.image resolution | 1920 x 1080 |
| Frame rate | 50Hz: 25fps (19200 x 10800) 60Hz: 30fps (1920 x 1080) |
| Image setting | Saturation, brightness and contrast are adjustable through IE browser or client. |
| Network | |
| Storage | Network storage |
| Intelligent alarm | Motion detection, video loss, cable break, IP address conflicts |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPOE, SMTP, NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6 ) |
| WIFI | WIFI 802.11bgn |
| Basic | anti-flicker, dual-stream, heartbeat, password protection |
| Interface | |

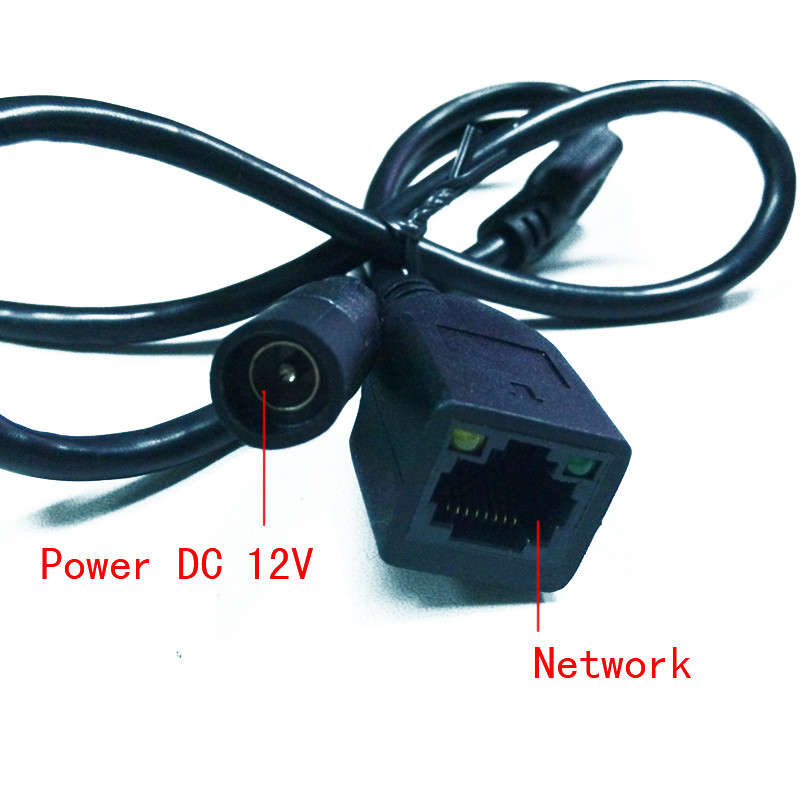

| Net interface | One RJ45 10M/100M |
| General | |
| Operating condition | -20¿¿¿ to 70¿¿¿, 90% or less(non-condensing) |
| Power supply | DC12V ± 10% |
| Protection range | IP65 |
