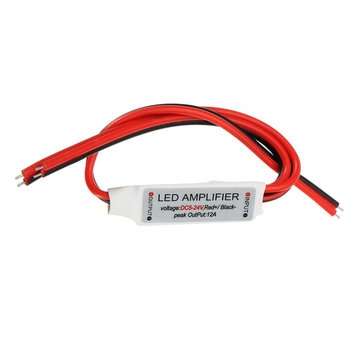

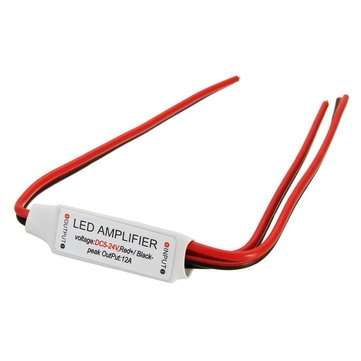

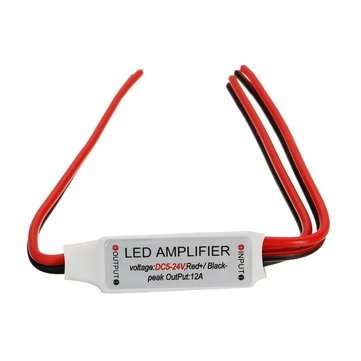

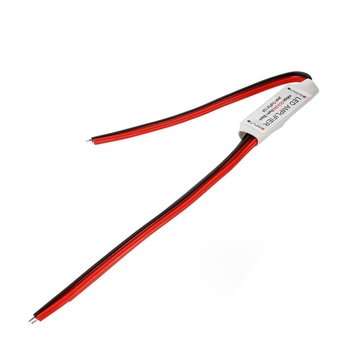

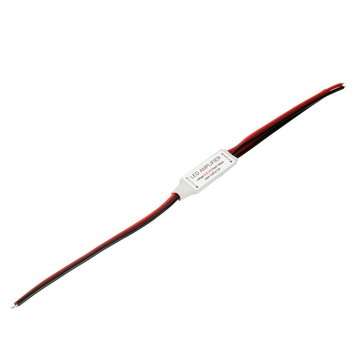

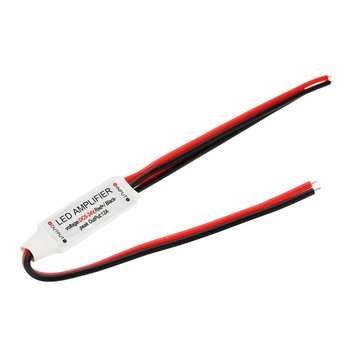

Mini 12A LED Amplifier Controller Power Accessories For Single Color Strip Light DC5-24V

Features:
Mini amplifier is applied to all of the voltage-controlled LED controller. The amplifier accepts PWM(Pulse width modulation)
Each additional amplifier will double the quantity of the led to be connected.
It is suitable for single color strip light or module

Specification:
Model:Mini Amplifier
Certification:UL
Working Voltage:DC5-24V
Max Output Current:12A
Max Output Wattage:288W
Working Temperature:-30 ﾣC to 75ﾣC
Static Consumption of Wattage:<0.5 W
Dimension:L42.5*W12.5*H3(mm)
Material:Plastic
Connect Mode:Common Anode
Connect Type:Two-wire Terminal Soldered
Output:One Circuit

Note:
The amplifier cannot be used separately. It needs to work with controller and single color led strip.
The amplifier can be powered by a separate power supply or it shares a power supply with the controller.

Package Included:
1X Mini LED Amplifier
