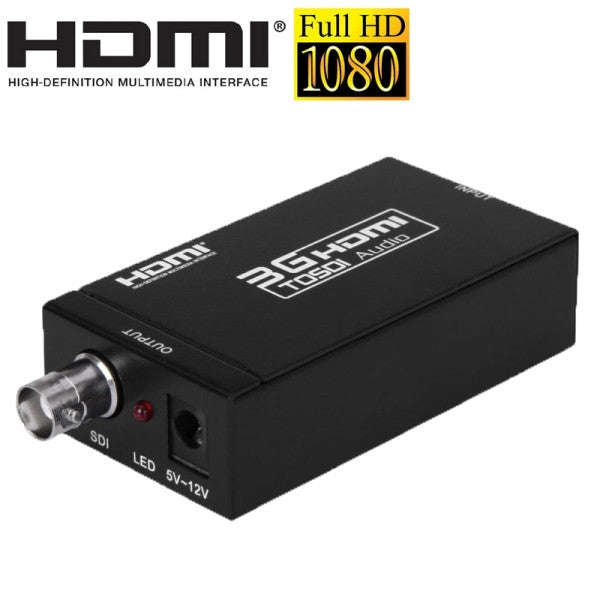

MINI 3G HDMI to SDI Converter (S009)(Black)

This item is sold brand new. It is ordered on demand from our supplier and is usually dispatched in 10 to 15 working days.

We urge you to please read shipping details before placing your order.

---------------------------------------

Introduction:

The MINI HDMI to SDI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

Features:

1) Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s

2) Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C

3) Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 KHz Audio

4) Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

5) Connect with other units to extend your signal over long distances

Package:

1) 3G HDMI to SDI Converter 1PCS

2) 5V DC Power Supply Adaptor 1PCS

3) Operation Manual 1PCS

Specificaitons:

1) Input Port: 1 x HDMI

2) Output Port: 1 x BNC (SDI/HD-SDI/3G-SDI)

3) SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s

4) In/Output Resolution: 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60

[email protected]/24/25/29.97/30/50/59.94/60

5) Power Supply: DC 5V -12V

6) ESD Protection Human body model: 8kV (air-gap discharge), 4kV (contact discharge)

7) Dimension: 80mm x 41mm x 25 mm

8) Weight: 150g

9) Operating Temperature: 0C ~ 40C / 32F ~ 104F

10) Storage Temperature: -20C ~ 60C / -4F ~ 140F

11) Elative Humidity: 20 ~ 90% RH (Non-condensing)

12) Power Consumption (Max): 5W

---------------------------------------
