Mini 8 Band SSB/CW QRP Transceiver For Ham Radio, Style: Host + Hand Mi + EU
Features:

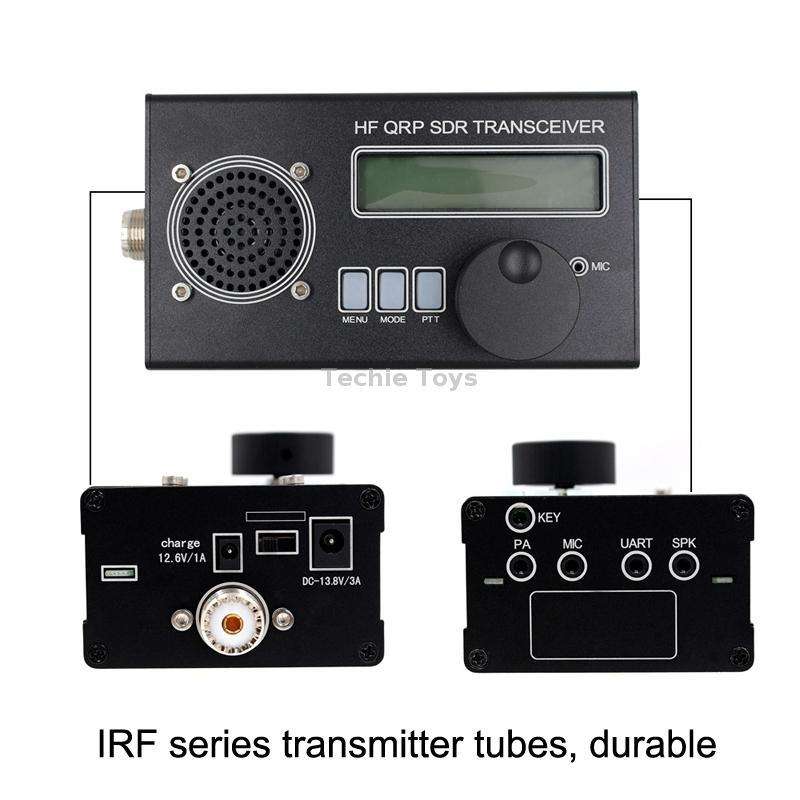

1. IRF series transmitter tubes, durable
2. Can be used to connect the antenna (instrument base)

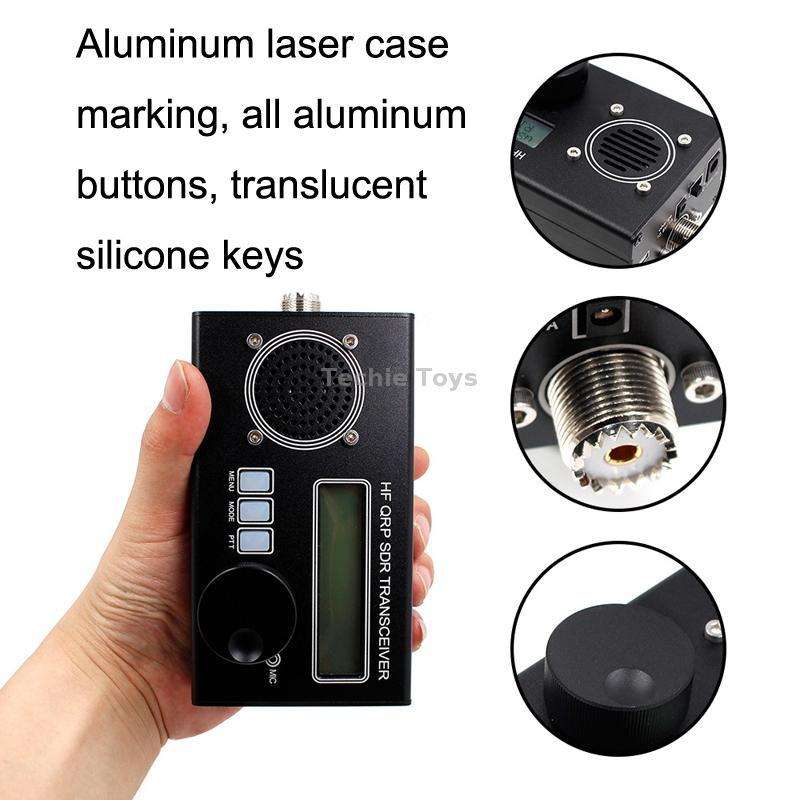

3. Aluminum laser case marking, all aluminum buttons, translucent silicone keys
4. The original qck circuit is greatly simplified, the installation components are reduced, and the complex transformer windings and wiring procedures are not needed, and the construction is easy (green and red)
5. 8-band, digital display, external power supply 13.8 v 10W, built-in 12.6 V battery
Features list:
1. Simple, interesting and versatile cxp ssb high frequency transceiver with built-in dsp and sdr functions
2. Eer class e drives the ssb launch phase
3. 13.8v power supply about 10w ssb pep output
4. Filters: 4000,2500,1700,500,200,100,50hz passband
5. Dsp functions: automatic gain control (agc) , noise reduction (nr) , voice trigger, voice trigger XMIT, attenuator rx (att) , tx noise gate, tx drive control, volume control, dbm/s-meter
6. Ssb reverse sideband/carrier suppression transmission: better than -45 dbc, imd3(double tone) -33 dbc, receive: better than -50 dbc
7. Multi-band support, continuously adjustable in the 160m-10m frequency range (loss of 20khz performance)99mhz
8. Open source firmware, built into IDE; allows experimentation, new features can be added, contributions can be shared via github, software complexity: 2000 lines of code
9. V-based software can be used for fast and complete rogue operations (qsk and semi-qsk) , or to assist execution in digital mode (without cat or ptt interface) for rx/tx switches with tx/pa delay control, external ptt output-simple installation and modification, 8 component changes and 8 lines
10. Lightweight, low-cost Transceiver: eer electronic level transmitter, which has high power efficiency (without the need for a large radiator) and simple design (without the need for complex balanced linear power amplifier)
11. SSB transmitter phase is completely digital and software-based: controls the phase of the SI5351 PLL (via small I2C frequency changes over 800 kbit/s) and the amplitude of the PA (via pwm to pwm) to test the microphone input and reconstruct the SSB signal. Key shaping circuit PA)
12. All-digital and software-based SDR receiver level (optional) : sampling of I/Q signals (plural) from a digital mixer with an orthogonal sampling detector, and in which the implementation of the 90-degree phase shift (Hilber transform) software and by adding remove sideband
13. Three switchable analog governors independent of the front-end receiver
14. MDS receiver noise level: -135 dbm (200 hz bw) at 28 mhz
15. Pre-receiver selectivity: steep frequency adjustment -45 db/10 rollover
16. Blocking dynamic range: 20khz offset 123db, 2khz offset 78db
17. CW decoder, corresponding relays with filters switched via i2c-Cat support (TS480 subset) , you can stream audio, keystrokes, and display text through CAT

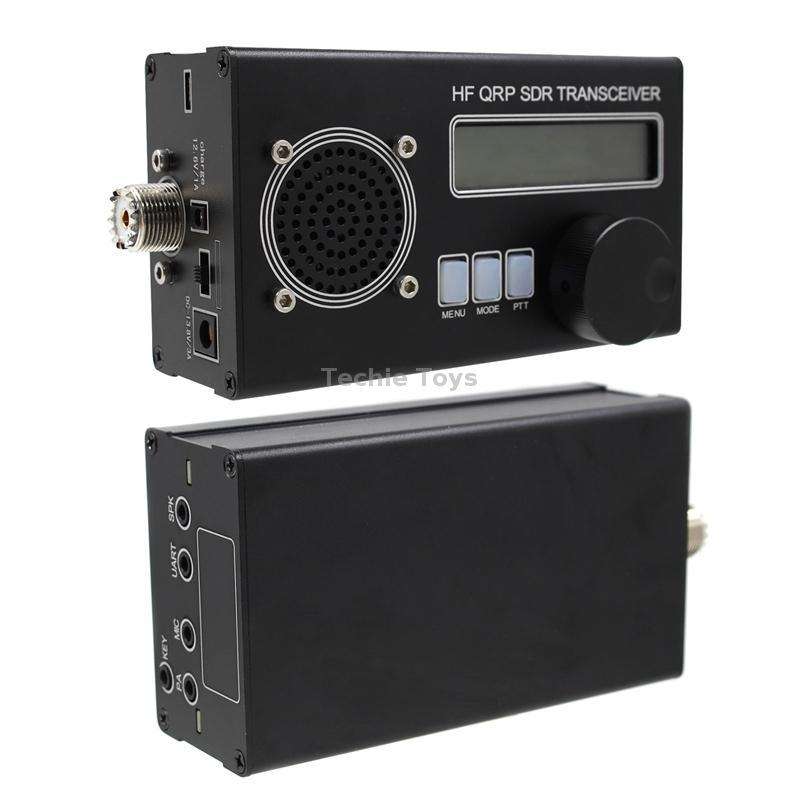

Port description:
1. Charging: built-in lithium battery charging port, only use the attached charger! Do not use other chargers!
2. Switch: off, bat: built-in Battery Power, 13.8: external power supply
3. DC13.8V/3A: external power interface
4. Key: automatic Key body connection (a, b, single Key)
5. Pa: external power amplifier, ptt signal
6. Mic: external microphone interface
7. Uart: serial communication (TS-480 compatible instruction)
8. Spk: external speaker
Product specifications:
1. Battery capacity: 6000 mah
2. Side PTT with built-in Mic for handheld use
3. Using power MOS transistor, not easy to break
4. Built-in battery, built-in microphone, speakers, can be connected to automatic keys, but also CW decoding
5. Size: 13.3 x 7.5 x 4cm

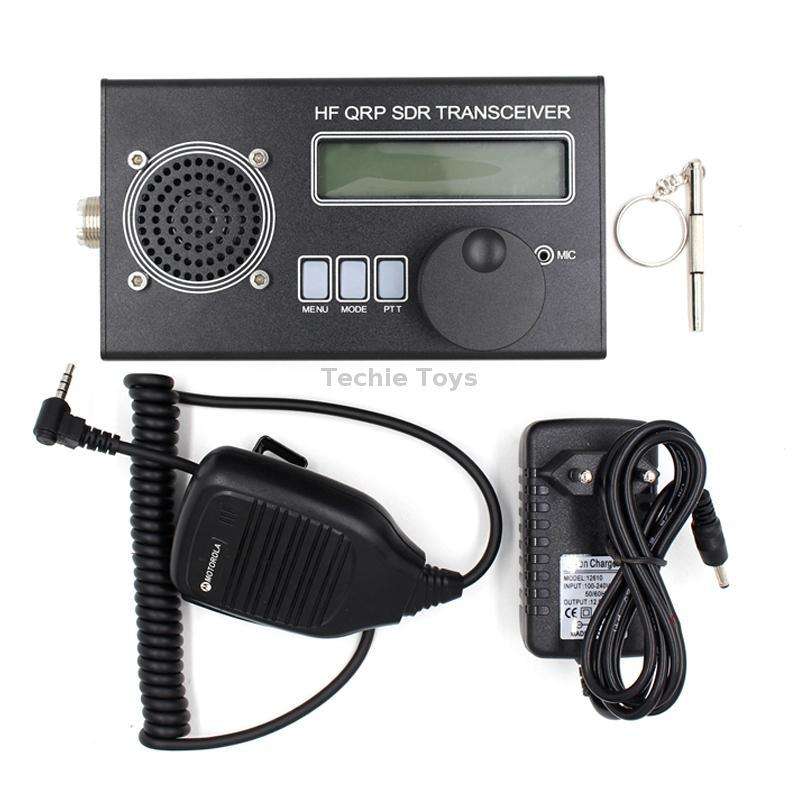

Packing list:
-.1 x host
-.1 x hand Mi
-.1 x power (host + hand does not come with)
-.1 x three-in-one screwdriver
