Product Description:
Garage Remote control cloning /duplicator, duplicate your existing remote controllers for cars, car sunroofs, garage doors, gate doors, heating Systems, home automation eg.
Features:
1. The ABCD four buttons could respectively copy four different types of chips, that is a remote control can operate four different types of facilities.
2. Only works for 433MHz,transmit distance is 50-100m(Open space) ,bringing you new experience of remote control and much convenience in your daily life.
3. High accuracy of copying and high effective of copying,duplicate your existing remote control in case you lost it..
4. Ultra-small error of copying data code and copy oscillation resistance. Privacy is strong. But you need to noted it can't copy rolling code.
Delete the existing code of our remote duplicator:
1. Click and Hold A and B buttons together - LED will flash 3 times
2. Keep holding A button and release B button
3. Keep holding A button and push B button 3 times, Led will start flashing Non-stop
Clone your original remote:
1. Put both remotes Into back to Back position. Make sure they have direct contact
2. Click and hold 1 button on your original remote and 1 button on your clone remote. keep holding until LED will make 2 blinks then 3 blinks then goes into Steady and you have successfully cloned. ( the left keys follow the same above operation)
Recover the code that you deleted unheeding:
1. Keep holding the last 2 buttons(C and D button)together of this remote dulicaptor - Led flashing
2. Release both buttons and click any button - LED will keep lightening, then the code recovered
Universal Garage Door Remote can be copied:
1. 2260(PT2260, SC2260, HS2260, LX2260, HX2260, etc);
2. 2262( PT2262, SC2262, HS2262, LX2262, HX2262, etc);
3. PT2264; PT2240(LX2240, LX2241, SCL2240);
4. CS5211, 1527(EV1527, HS1527, HX1527, SC1527, GP1527, CP1527, AD1527, SCL1527, TL1527, ZX1527);
5. SMC918,AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6027, HT6207, HT6010, HT6012,
6. HT6013, HT6014, HT12D, HT46F49E, PIC6F630, ULN2003,
7. HCS101, HCS200\HCS20019(part of code), HCS300\HCS3001(part of code), part off the single chip microcomputer.
Specification:
1. Material: Iron

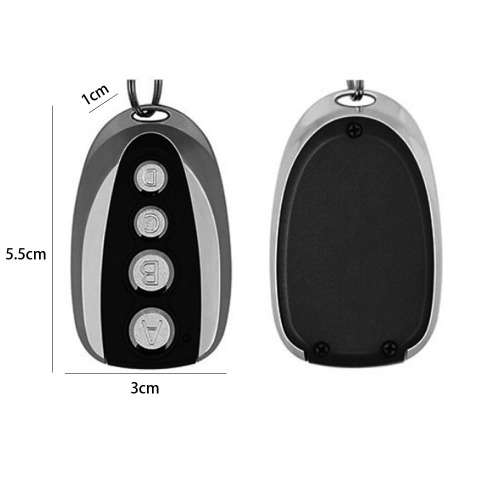

2. Product Size: 5.5x1x3cm
3. Power Supply: DC12V
4. Power Consumption: below 8 mA
5. Operating Frequency: 315MHz / 433.92MHz
6. Modulation Type: AM
7. Wireless Tx Power: below 10MV
8. Distance: 50-100m
Package include:
1 x Wireless Copy Controller
Note:
1. Size may be a little deviation due to manual measurement.
