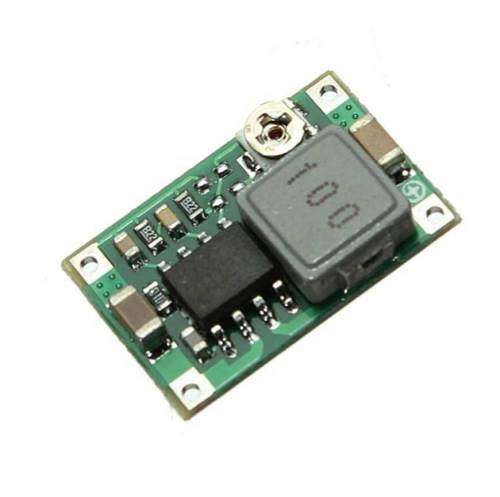

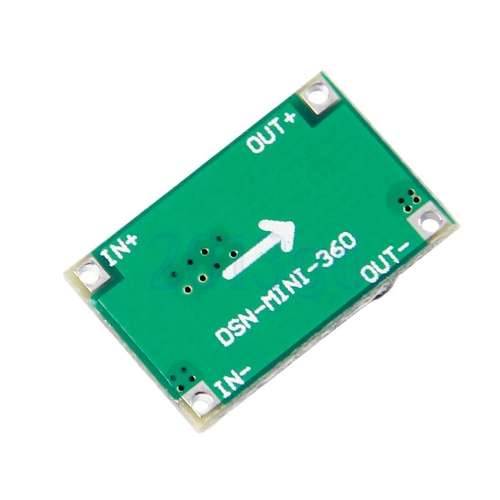

Mini DC Adjustable Buck Module Step Down Module DC-DC
DESCRIPTION:
Module Properties: Non-isolated step-down module (BUCK)
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Output ripple: 30mV (no-load)
Dimension: 17 x 11 x 4mm (L x W x H) / 0.67 x 0.43 x 0.16 inch approx
PACKAGE INCLUDE:
1 x Mini DC-DC step-down adjustable module
