Mini DC-DC 0.8-5V To DC 5V Step Up Boost Power Module Board Mini DC-DC 0.8-5V To DC 5V Step Up Boost Power Module Board
Mini DC-DC 0.8-5V To DC 5V Step Up Boost Power Module Board Mini DC-DC 0.8-5V To DC 5V Step Up Boost Power Module Board

Mini DC-DC 0.8-5V To DC 5V Step Up Boost Power Module Board

20 available / new
R379.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641129152
Specification:

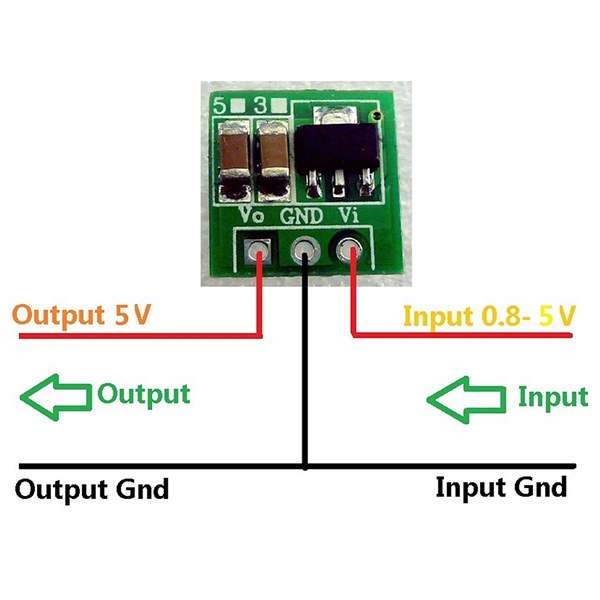

Input voltage: 0.8-5V
Output voltage: 5V
Maximum output current: 480mA
Start voltage: 0.8V, output current 7MA
Input 1-1.5V, output 5V 40-100MA
Input 1.5-2V, output 5V 100-150MA
Input 2-3V, output 5V 150-380MA
Input above 3V, output 5V 380-480MA
Working frequency: 150KHZ
Conversion efficiency: 85%
Pin pitch: Approx. 2.54mm / 0.1

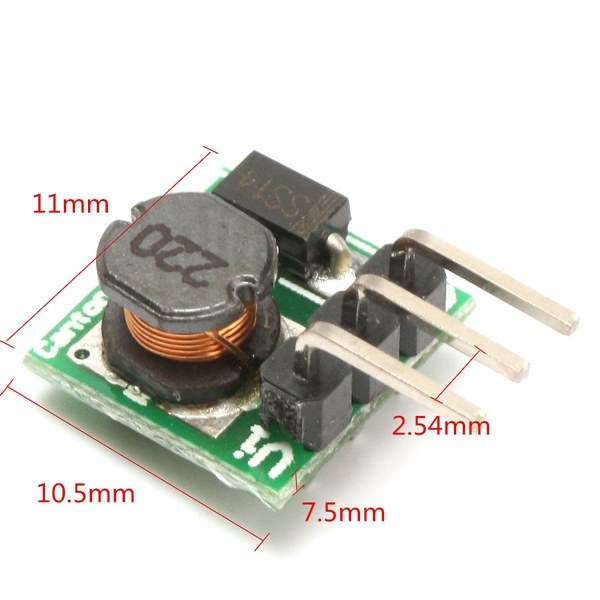

Size: Approx. 11x10.5x7.5mm / 0.43x0.41x0.30

Note:

This is a DC-DC voltage converter module, must be noted when using
Input voltage can not be greater than the maximum input range
Output power can not be greater than the maximum load for a long time
Input power must be greater than the output power

Package includes:

1 x DC-DC 0.8-5V To DC 5V Step-UP Boost Power Module

, , ,
