Mini Drilling and Milling Machine 230 V

Mini Drilling and Milling Machine 230 V

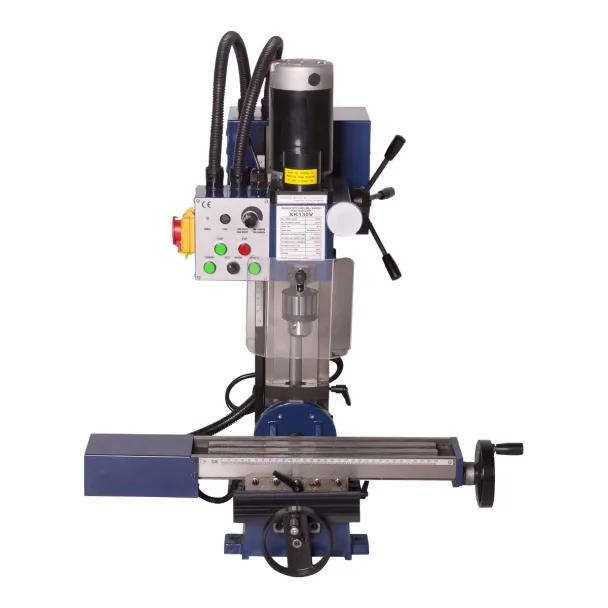

This benchtop mini drilling and milling machine is designed for hobbyists and small workshop tasks, offering versatility and precision in a compact form. Equipped with a 350 W motor and MT3 spindle taper, it handles drilling up to 13 mm, end milling up to 16 mm, and face milling up to 30 mm with ease. The machine features a dual-speed spindle (1001,100 RPM low, 1002,500 RPM high) and an auto feed for consistent results. Its adjustable headstock can swivel ±45°, and the table provides ample working space with precise T-slots for secure mounting. Included is a power feeder to improve accuracy and safety during milling.

Features

• Auto feed function for consistent drilling and milling

• Drilling capacity up to 13 mm; end mill capacity up to 16 mm; face mill capacity up to 30 mm

• Longitudinal travel: 220 mm; cross travel: 100 mm; headstock travel: 180 mm

• MT3 spindle taper for versatile and precise tool holding

• Table size: 390 x 92 mm with 12 mm T-slots

• Column swivel ±45° for angled milling operations

• Variable spindle speeds: Low 1001,100 RPM and High 1002,500 RPM

• Rapid downfeed and micro downfeed for precise depth adjustments (down to 0.001")

• Includes power feeder for easier, safer milling of wider or longer stock

• Clear chip guard on spindle and rubber chip guard on ways for added safety

• Limit block allows repeated drilling at the same depth

Specifications

• Auto Feed: Yes

• Drilling Capacity: 13 mm

• End Mill Capacity: 16 mm

• Face Mill Capacity: 30 mm

• Longitude Axis Travel: 220 mm

• Cross Axis Travel: 100 mm

• Headstock Travel: 180 mm

• Spindle Taper: MT3

• Throat Depth: 167 mm

• Table Size: 390 x 92 mm

• T-Slot Size: 12 mm

• Column Swivel: ±45°

• Main Motor Power: 350 W

• Spindle Speed Low Range: 100 1,100 RPM

• Spindle Speed High Range: 100 2,500 RPM
