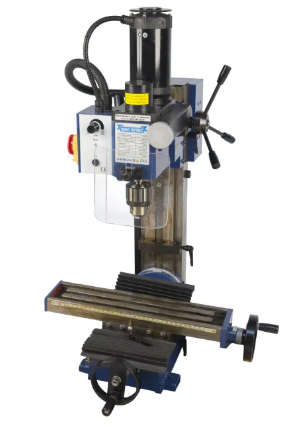

Mini Drilling/Milling Machine - 230V - EMILGH130

MAC AFRIC Mini Drilling/Milling Machine - 230V

Specifications:

• Auto Feed: No
• Drilling Capacity: 13 mm
• End Mill Capacity: 16 mm
• Face Mill Capacity: 30 mm
• Longitude Axis Travel: 220 mm
• Cross Axis Travel: 100 mm
• Headstock Travel: 180 mm
• Spindle Taper: MT3
• Throat: 167 mm
• Table Size: 390 mm x 92 mm
• T-Slot Size: 12 mm
• Column Swivel: ±45 Degrees
• Main Motor Output: 350 W
• Spindle Speed Range:
  • Low Range: 100 - 1,100 RPM
  • High Range: 100 - 2,500 RPM

Emilgh 130 Overview

• Purpose: Ideal benchtop milling machine for home hobbyists
• Capabilities:
  • Drills up to 13 mm
  • Supports 13 mm end mills
  • Can handle 30 mm facing tasks
• Spindle:
  • MT2 spindle provides stability and versatility
  • Quick and easy tool changes
  • High accuracy for fine work
• Speed Control:
  • Variable-speed control for flexibility
  • Gear drive for smooth operation between different projects
  • Two Speed Ranges:
    • Low range: 01,100 RPM
    • High range: 02,500 RPM
• Spindle Height Adjustment:
  • Rapid Downfeed: Adjust spindle height quickly
  • Micro Downfeed: Adjust to precise increments of 0.001" (1 full revolution = 0.060")
• Headstock:
  • Adjustable up and down the column
  • Tilts ±45° left or right relative to the table
• Dovetail Ways: Provides precision and rigidity for improved stability
• Limit Block:
  • Can be set to restrict the amount of head travel for consistent, repeated drilling at the same depth
• Safety Features:
  • Clear chip guard on the spindle for visibility
  • Rubber chip guard on the ways to protect the machine and enhance safety

Package Information

• Package Dimensions:
  • Length: 56.00 cm
  • Width: 56.00 cm
  • Height: 70.50 cm
• Package Weight: 54.20 kg
