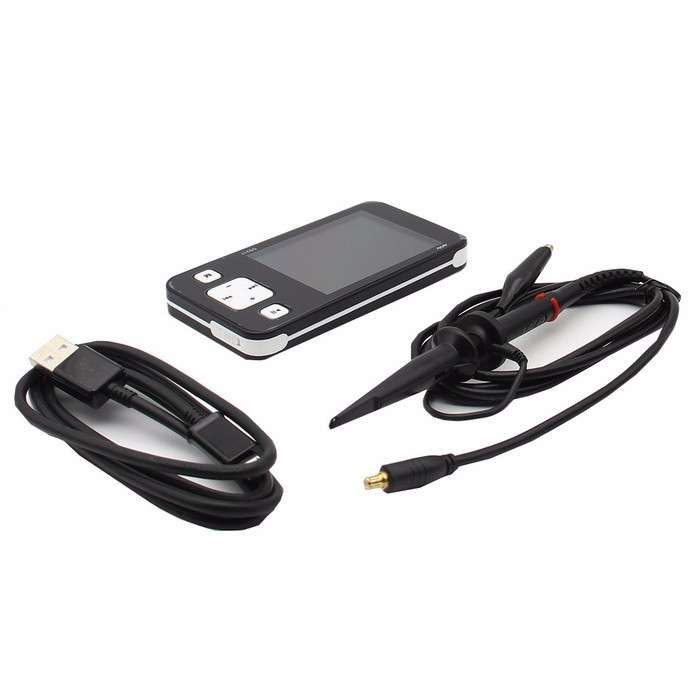

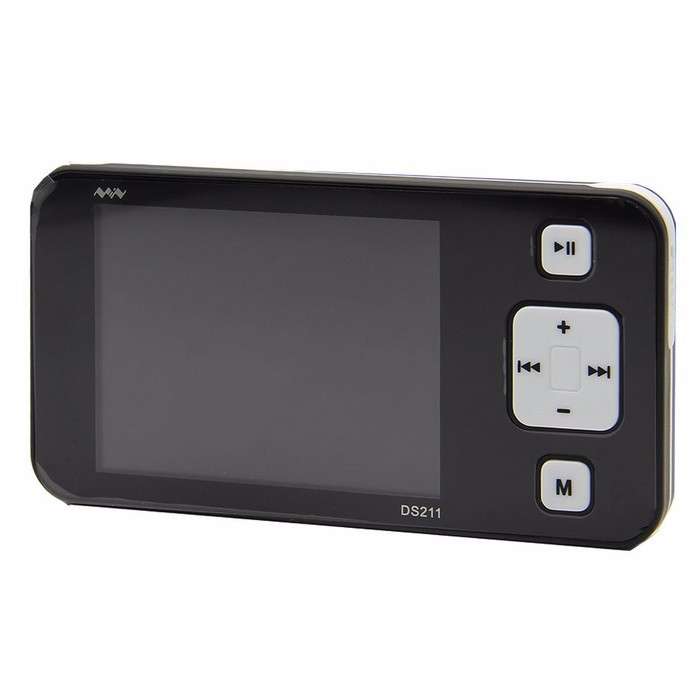

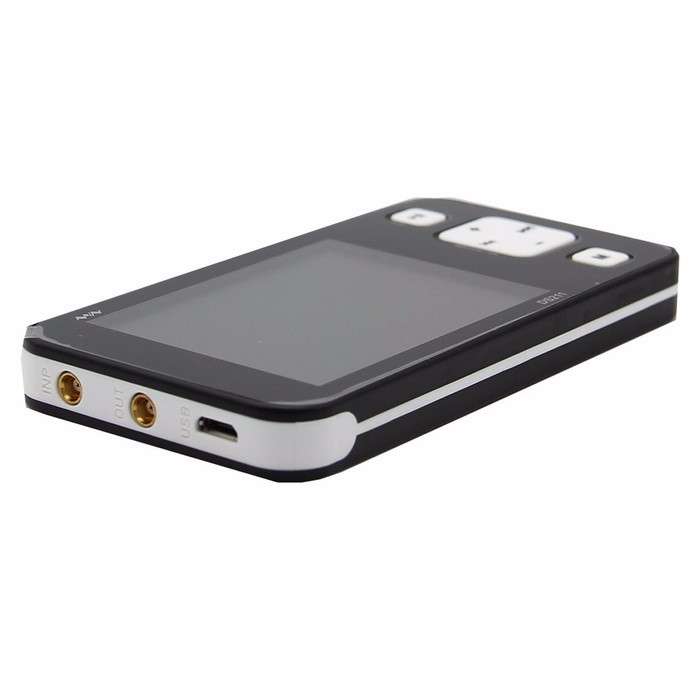

Mini DS211 DS211 ARM Nano Pocket Portable Digital Oscilloscope
New
Indicative market price: R3,899
R2,573.53
34% OFF
Closed
3 Jun 17 00:36
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
977755
Bob Shop ID
281975289
Package weight: 0.05 kg
Description:
DS211 is the update version of DS201.
It is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements.
Features :
DSO mini oscilloscope.
Rising/falling edge trigger.
Compact rectangular housing.
Large display screen.

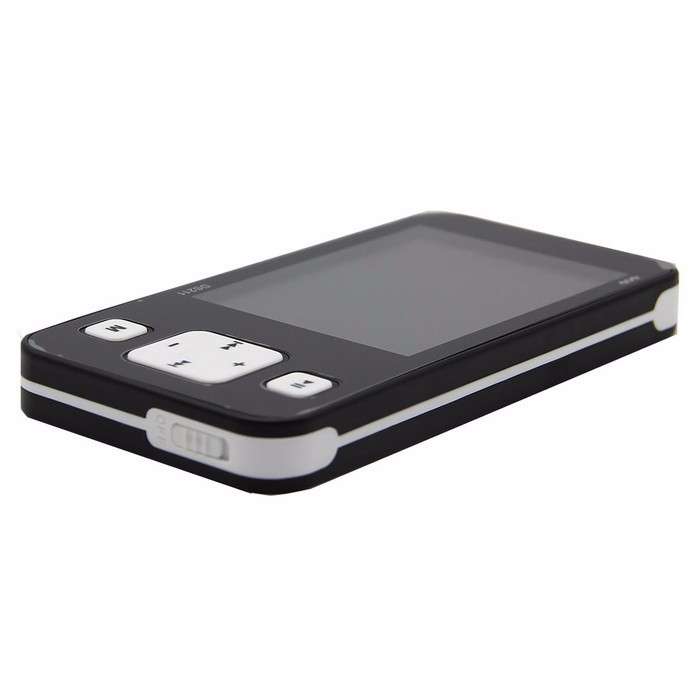

Buttons on the side.
Mini pocket sized.
Compact and lightweight.
Store file as BMP, DAT, BUF, or CSV format.
Use build-in flash disk to save/read waveform image.
Math waveforms: DATA, -DATA, Inp+D, Inp-D, -Inp.
Output test signal: 10Hz-1MHz (1-2-5 sequence step).
Synchronous mode: auto, normal, single, none, scan.
Auto measurement: frequency/duty cycle, DC RMS voltage/Vpp /Vmax/Vmin.
Specification :
Application:
Outdoor Maintenance(AC/DC Power and Inverters, floor fire equippment and circuit-control).
Hardware maintenance and software debugging RS232/RS485/I2C/CAN and so on circuit, LED display and scanning driver circuit via keyboard
Audio device and circuit, elecrtic toys and remote models, car circuit maintenance.
School tutoring and DIY
Description:
DS211 is the update version of DS201.
It is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements.
Features :
DSO mini oscilloscope.
Rising/falling edge trigger.
Compact rectangular housing.

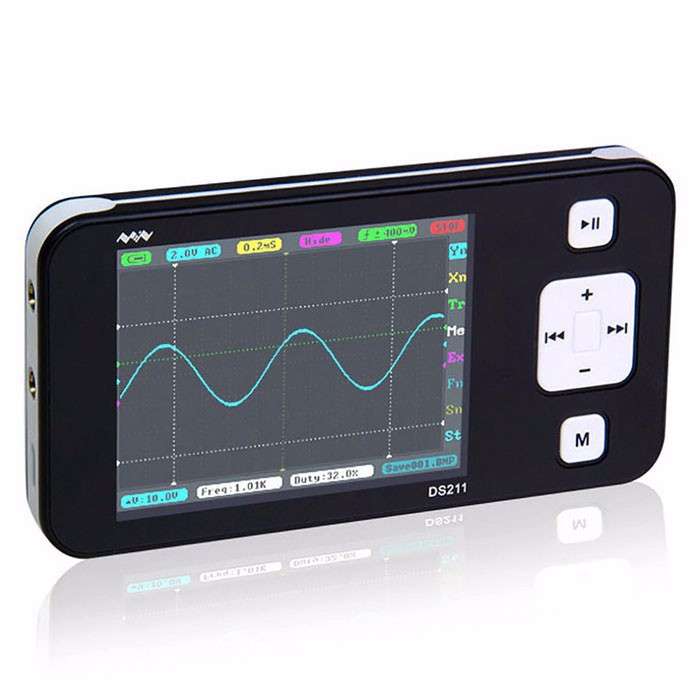

Large display screen.
Buttons on the side.
Mini pocket sized.
Compact and lightweight.
Store file as BMP, DAT, BUF, or CSV format.
Use build-in flash disk to save/read waveform image.
Math waveforms: DATA, -DATA, Inp+D, Inp-D, -Inp.
Output test signal: 10Hz-1MHz (1-2-5 sequence step).
Synchronous mode: auto, normal, single, none, scan.
Auto measurement: frequency/duty cycle, DC RMS voltage/Vpp /Vmax/Vmin.
Specification :
| Parameters of Mini DSO DS211 | |
| Model | DS211 |
| MCU | STM32F103VC |
| ADC | MCU internal ADC |
| Channels | 1 Analog channel+1 Operation channel |
| Analog Bandwidth | 200KHz |
| Max Sample Rate | 1MSa/s |
| Max Sample Memory Depth | 8K |
| Horizontal sensitivity | 1uS/Div~2S/Div(1-2-5sequence step) |
| Vertical Sensitivity | 20mv/Div~10V/Div(1-2-5sequence step) |
| Analog Input Impedance | >500kΩ |
| Coupling | DC/AC |
| Synchronous Mode | Ascend/Descend Edge Trigger Mode |
| AUTO_FIT | AUTO_FIT |
| Math Waveforms | -A, RecA, A+ RecA |
| Inbuilt Signal Generator | Sine/Square/Triangle/Sawtooth wave |
| Synchronous Mode | Auto, Normal, Single, Scan |
| Auto Measurement | Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average |
| Storage | 8MB USB flash disk memory |
| APP installed | 1 |
| Operation | Button |
| USB port | MicroUSB |
| Battery | 500mAh |
| Screen Size | 2.8‘’ |
| Screen Resolution | 320 x 240 |
| Dimension | 106.5mm x 55.7mm x 11.5mm |
| Weight(with Battery): | 65g |
| Open Source | Application layer Open-Source |
| Certifications | CE/FCC |
Application:
Outdoor Maintenance(AC/DC Power and Inverters, floor fire equippment and circuit-control).
Hardware maintenance and software debugging RS232/RS485/I2C/CAN and so on circuit, LED display and scanning driver circuit via keyboard
Audio device and circuit, elecrtic toys and remote models, car circuit maintenance.
School tutoring and DIY
