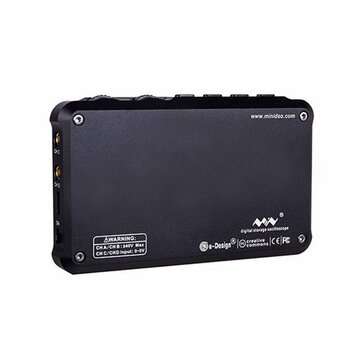

MINI DS213 Digital Storage Oscilloscope Portable 15MHz Bandwidth 100MSa/s Sampling Rate 2 Analog Cha

Description:

DS213 is a a??5-track, 4-wave linea?? digital storage oscilloscope for g`eneral-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADCa??s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs
?
Features:

Mini size, light weight, portable and handheld;
It can store waveforms, making waveform analysis clearer?and more effective;
Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and iLogicTrigger;
Powerful ability to process waveforms, it can automatically?measure parameters such us voltage, frequency and pulse width.
?
Specifications:

CPU: ARM Cortex M3
FIFO & Control: FPGA
ADC: HWD9288-100

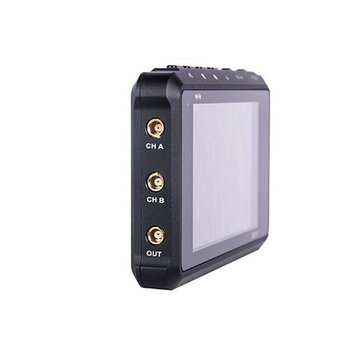

Analog Channels:?2([CH_A] [CH_B])
Digital Channels:?2([C_C] [CH_D])
Operation Channel:?INV?[CH_A], INV [CH_B], [CH_A]+[CH_B],?[CH_A]-[CH_B],[C_C]&[CH_D],[C_C] | [CH_D]
Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)
????????????????100mV-100V/div (1-2-5 STEP) (using X10 probe)
Vertical Resolution: 8?bits
Sample Memory Depth: 4 channels, 4*4K
Coupling: DC, AC
Max Input Voltage: ±40Vpp (using X1 probe)
?????????????????±400Vpp (using X10 probe)
Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, LogicTrigger
Trigger Mode:?Auto, Normal, Single, Slow
Trigger Source: [CH_A] [CH_B] [C_C] [CH_D]
Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shif1ts and 3 Vpp Signal Sources;

Sine/Triangle/Sawtooth Wave:?10Hz to 20MHz, in total 11?shif1ts?and 3 Vpp Signal Sources
Storage: built in?8M USB disk
File Types: BMP,BUF,CSV
Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average
Cursor Measurement: Time value, Amplitude value
Display Modes: 4 wave lines: Line 1: [CH_A], HIDE
Line 2: [CH_B], HIDE
Line 3: [C_C], REC_1, REC _2, REC _3, REC _4, HIDE
Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [C_C]&[CH_D], [C_C] | [CH_D], HIDE
Sampling Mode: Real-time Sampling
Sampling Rate: 100M Sa/s
Battery: 1000mAh
Size: 99.5mmx58.5mmx13.5mm
Weight: 129g (with battery)
Certificate:?CE, FCC

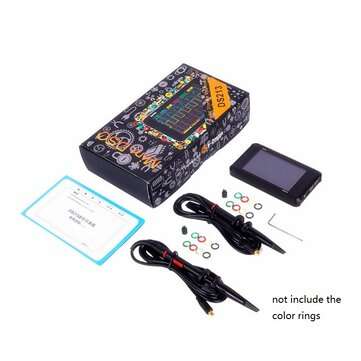

Package Includes:

1 x DS213?oscilloscope(not include the silicone?case)
2 x Test Proes
1 x one?Set of accessories

The silicone?case is not included in the package ,you can click the link below to buy it?
