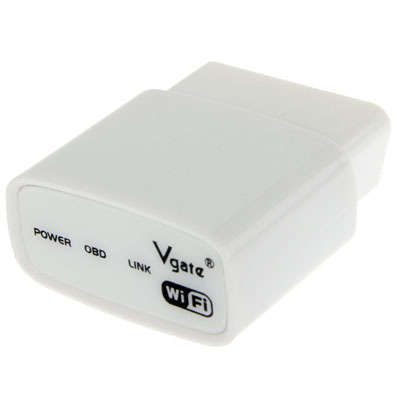

WiFi OBD Multi-scan Auto Car Diagnostic Scan Tool

LIST OF COMPATIBLE VEHICLES

Overview
1) Customer should know the following:

the chipV-Link is ARM chip which speed is more faster and the communication speed is doubled than before oneCLK DEVICE
The shape looks elegant and refined, the design is near the Apple style,compared the CLK DEVICE,this new device is more exquisite,it doesnt using the cable but CLK DEVICEhaving.
It has the function of power be off and energy keeps saving automaticly.When the main chip were detected not in communication for an hour then the device will be off automaticly and get into energy saving state,it only comsumes 3 microamp electric current which saved much for the cars power supply system.
The real J1939 and the stable J1979 protocol can make customers do efficiently redeveloped
It supports all WIFI System (ANDROID, PCWINCEIPHONEIPAD)
It distributes address freely not same as the traditional ADHOC do,it support DHCP ,so customer can make a clear and simple connecting.

2) Technical Specifications
System Support: DHCP
SSID: V-Link
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches

3) Description
WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:
ISO 9141
ISO 11898(aka. CAN)
ISO 14230(aka. KWP2000)
ISO 15765(aka. CAN)
SAE J1939
WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WIFI connection in adHoc mode.

Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.

Following are some of the parameters which could be read from the vehicle.
Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Type of Packing: Color Box
