Mini ELM327 OBD2 Bluetooth Vehicle Diagnostic Scanner
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information

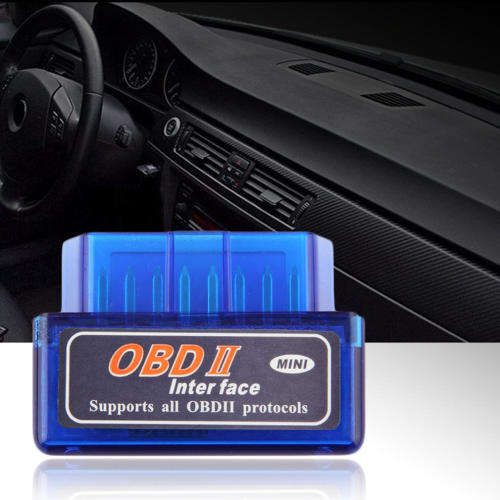

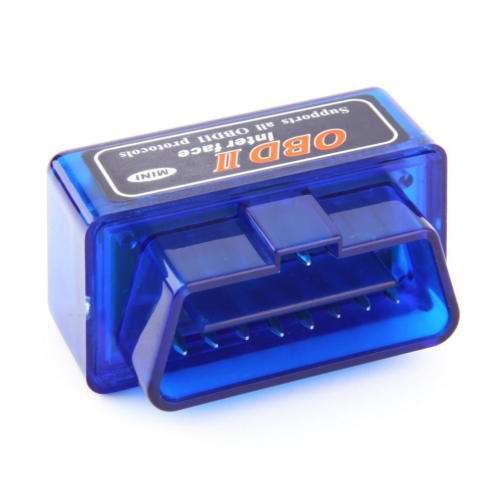

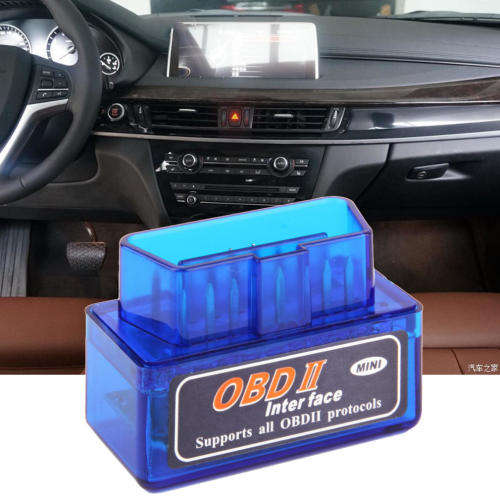

Mini ELM327 OBD2 II Bluetooth Diagnostic Car Auto Interface Scanner Tool
Description
Features: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). Display current sensor data, including: 1.Engine RPM 2.Calculated Load Value 3.Coolant Temperature 4.Fuel System Status 5.Vehicle Speed 6.Short Term Fuel Trim 7.Long Term Fuel Trim 8.Intake Manifold Pressure 9.Timing Advance 10.Intake Air Temperature 11.Air Flow Rate 12.Absolute Throttle Position 13.Oxygen sensor voltages/associated short term fuel trims 14.Fuel System status 15.Fuel Pressure
Support OBDII Protocols:
SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) SAE J1939 J1979
Package Included: 1 * ELM327 OBD II bluetooth diagnostic interface
