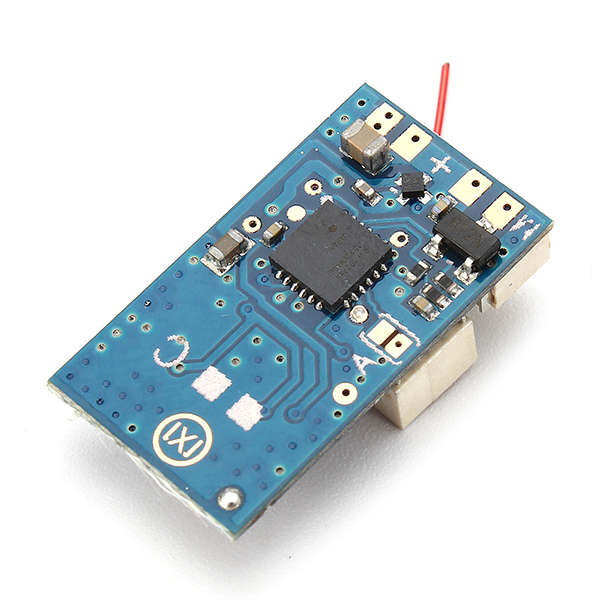

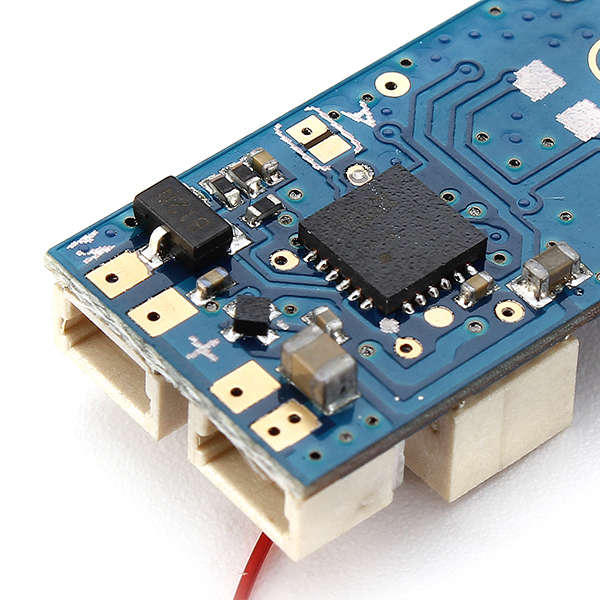

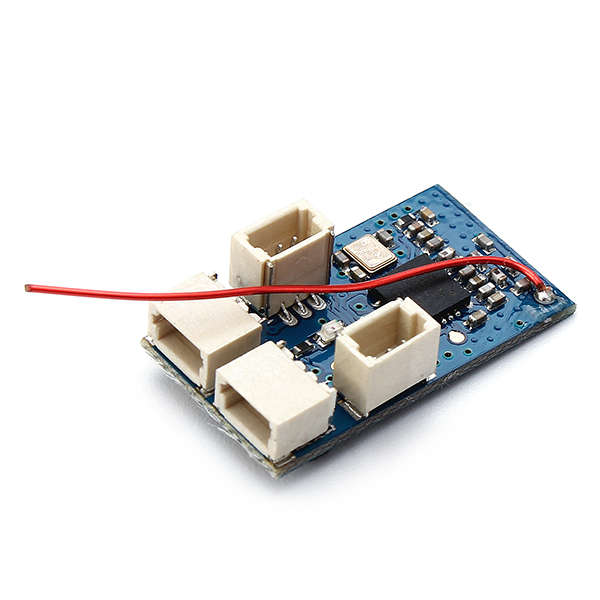

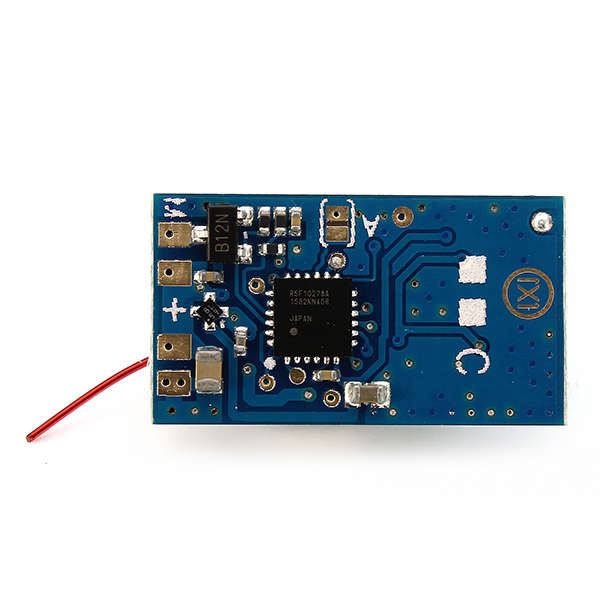

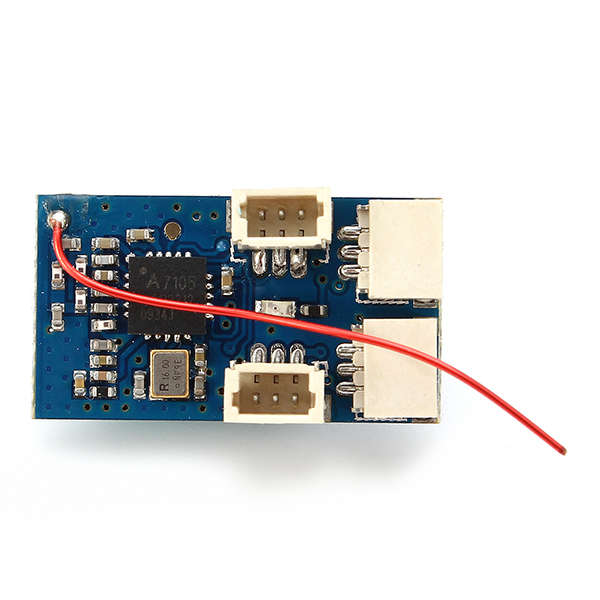

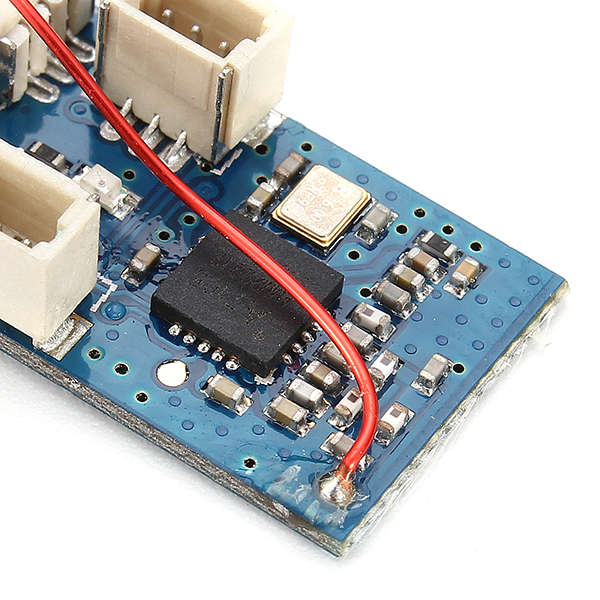

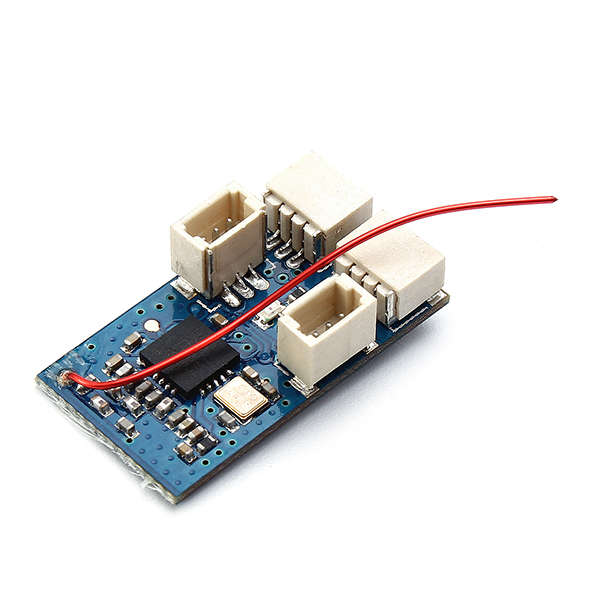

Mini Flysky AFHDA Compatible 8CH Receiver PPM Output With 1mm JST Socket For DI

Mini Flysky AFHDA Compatible 8CH Receiver PPM Output With 1mm JST Socket For DIY Micro Quadcopter
Description:
Item Name: Mini 8CH Receiver
Output: PPM
Number of channels: 8
Working voltage: 3.0~5.0V
Hardware structure: MCU+RFIC+ ANT
Hardware version: A7105
Weight: 1.1g (including antenna)
Size: 21.0*12.0*6.5mm (not including antenna)
Compatible With FlySky AFHDA (8CH ) or Hubsan (6CH) System Transmitter
Features:
1.MINI series receiver is a kind of micro receivers newly designed especially for micro remote control models.
2.It provides 4 independent output ports and an integrated output port which is for 5A brushed ESC, built-in 4 brushed ESC, you can also connect brushless ESC from outside, no need programming operation, it has 4 standard servo ports(JST1.0mm pitch).
3.It supports PPM signal output.
4.It can still ensure of stable receiver signal when the voltage is as low as 2.5V, in this case, signal disconnection problem when other receivers working with 1S brushless motor will never happen in future.
Binding:
The receiver will come to binding mode as soon as it is powered (LED light blinks quickly), a bright constand LED light shows the binding is finished.
Package included:
1 x Flysky AFHDA Compatible 8CH Receiver
