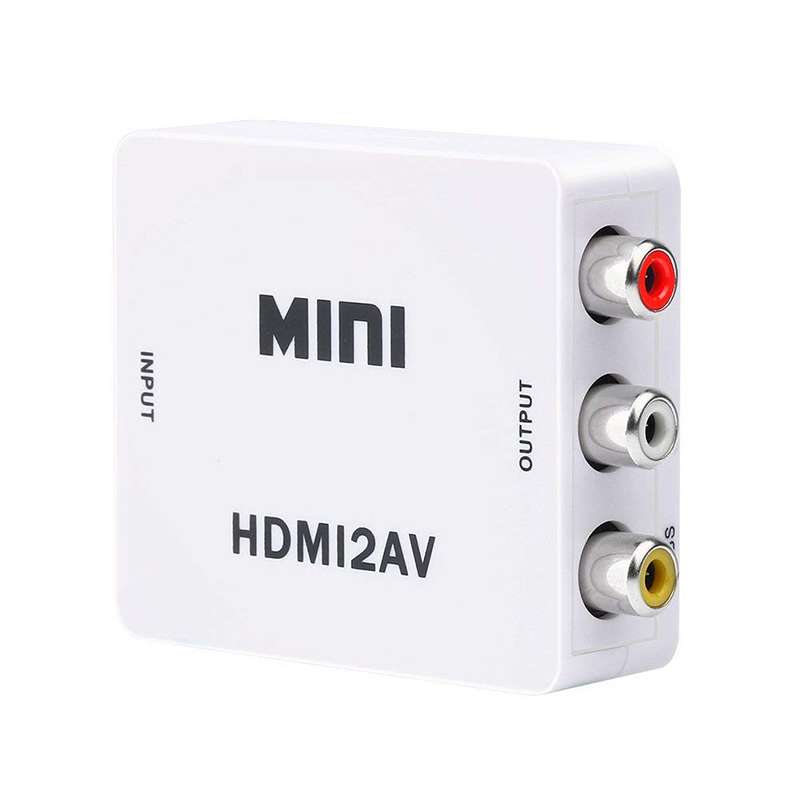

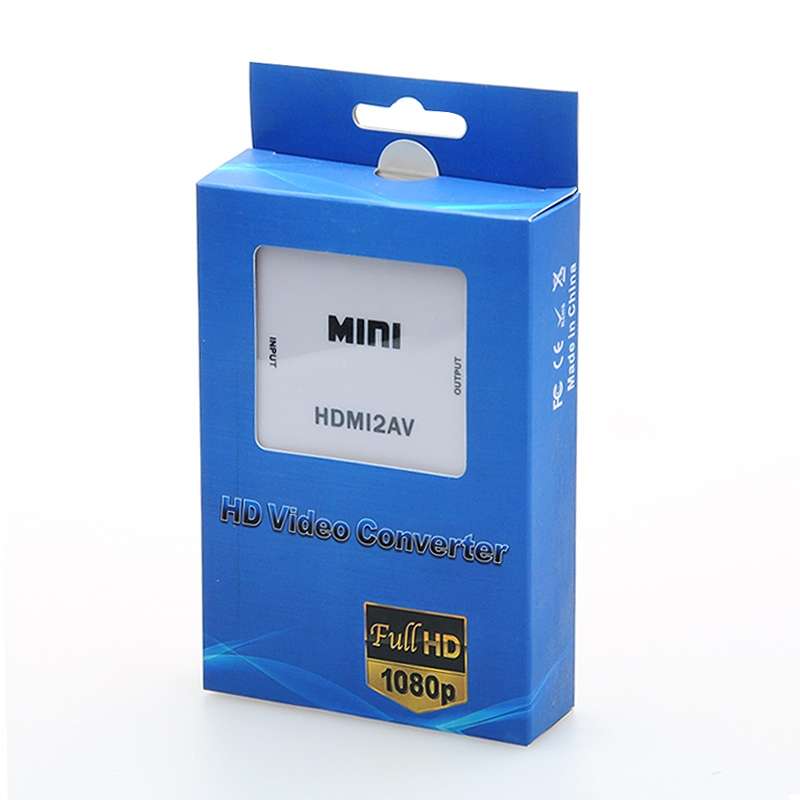

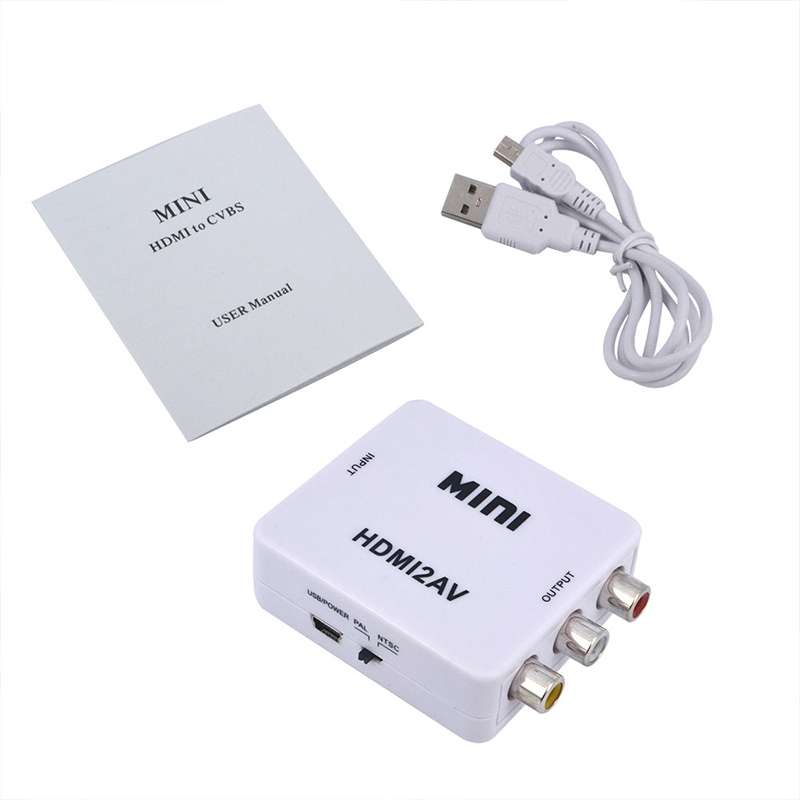

Mini HDMI to CVBS Audio Decoder

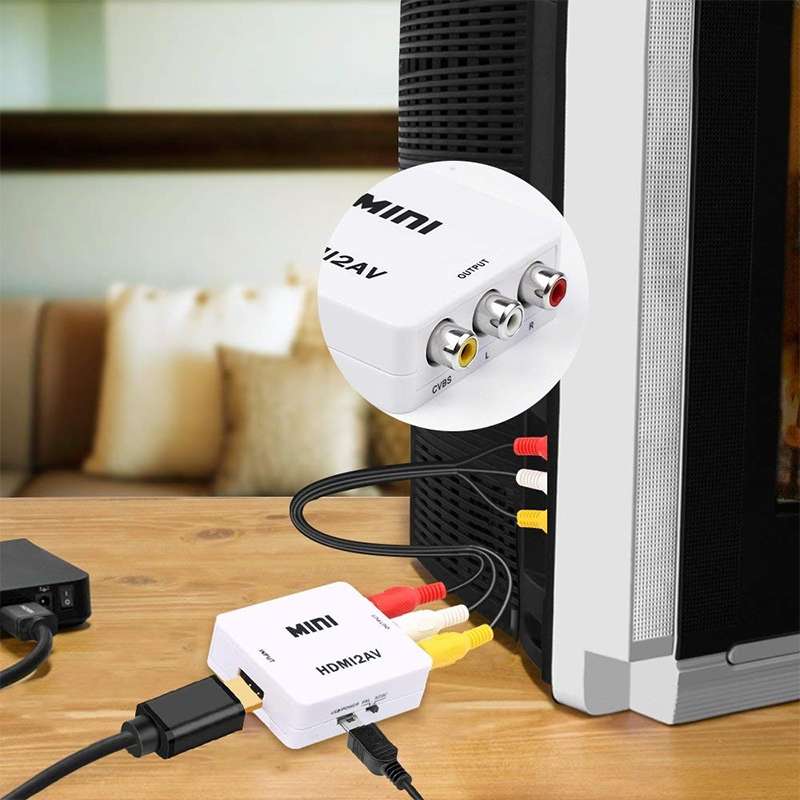

The MINI HDMI to AV signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.

1) No need to install drivers, portable, flexible, plug and play.

2) Low power, No power adaptor.

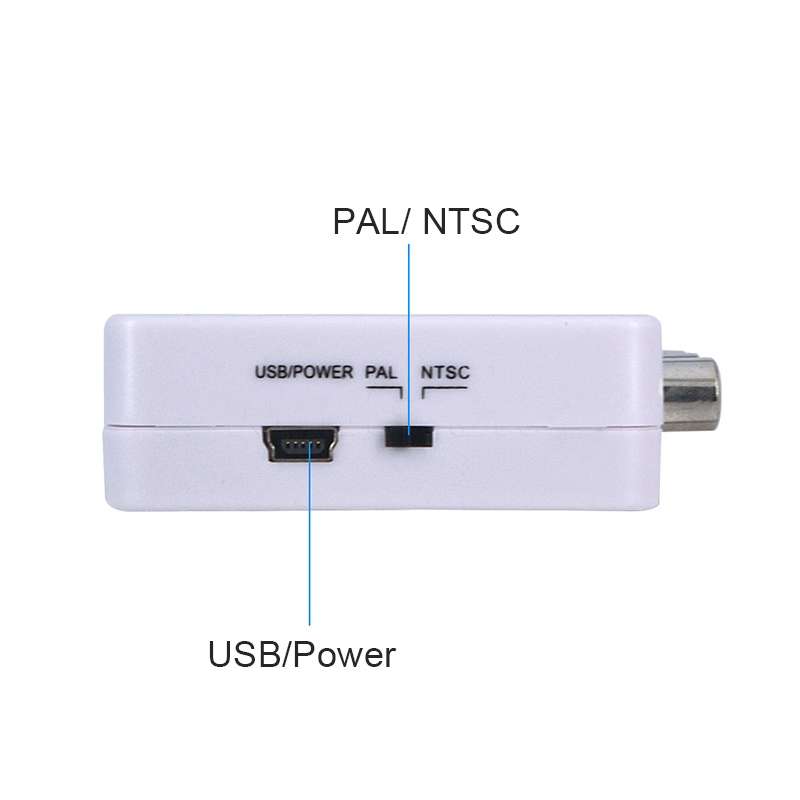

3) Support NTSC and PAL two standard TV formats output

4) Compatible HDMI1.3

5) Input ports: 1xHDMI.

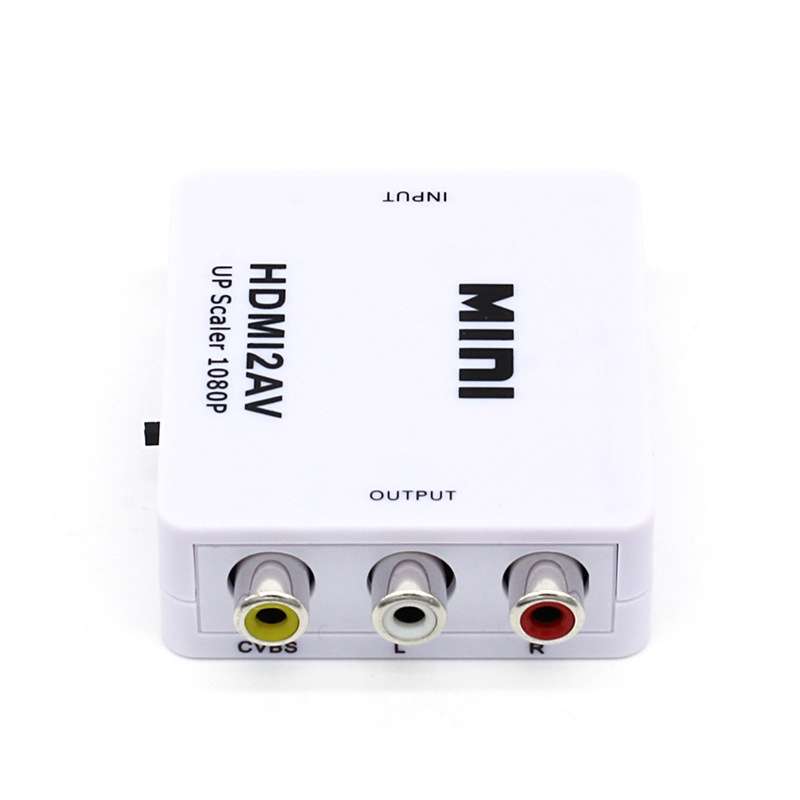

6) Output ports: 1xRCA (Yellow, White, Red)

7) Dimensions (mm): 66(D) x55(W) x20(H)

8) Weight (g): 40

9) HDMI Input Resolution:

640x480@60Hz,800x600@60Hz, 1024x768@60Hz,1280x720@60Hz, 1280x1024@60Hz,1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz,480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,720p50/60Hz,1080I50/60Hz, 1080p50/60Hz

10) CVBS output: PAL, NTSC_M, and (NTSC_J)
S-PC-0443
