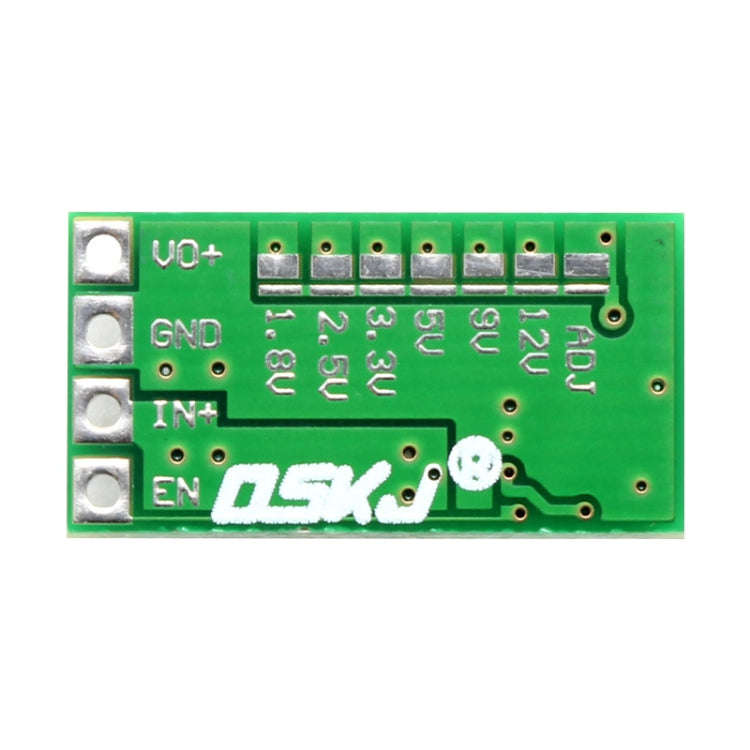

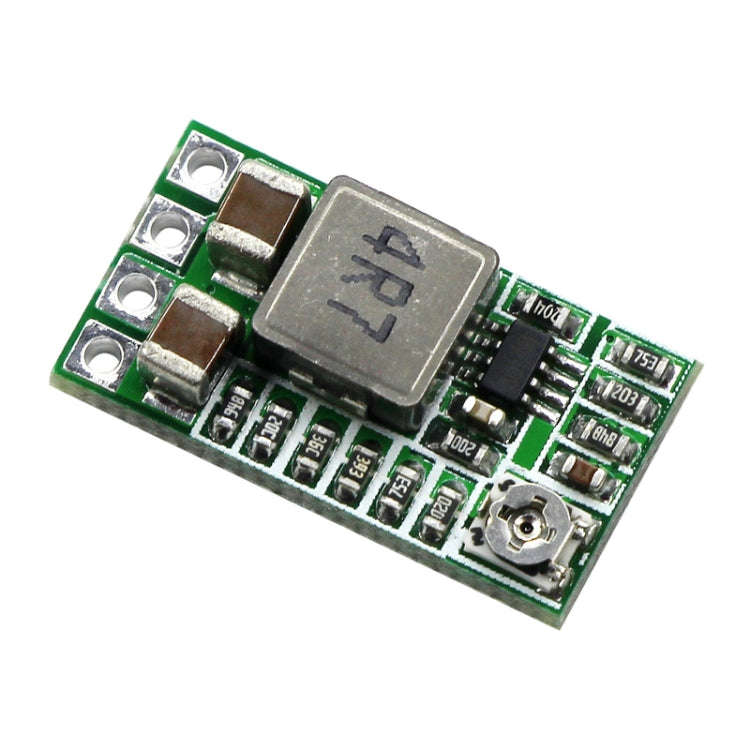

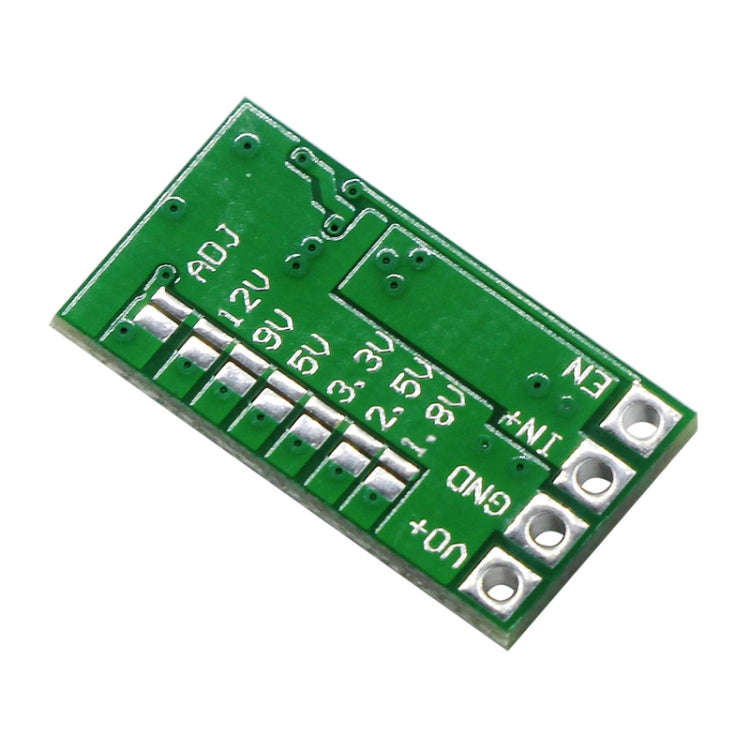

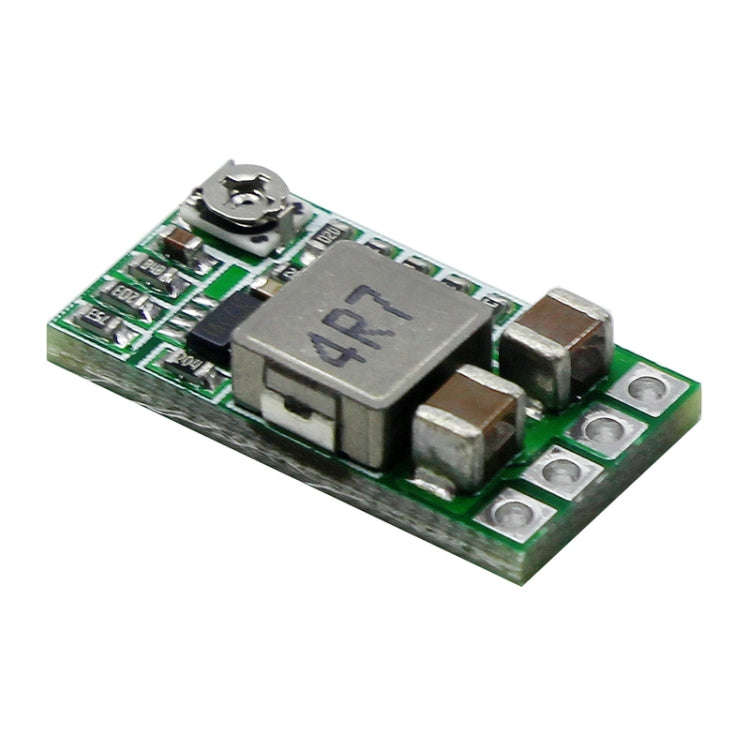

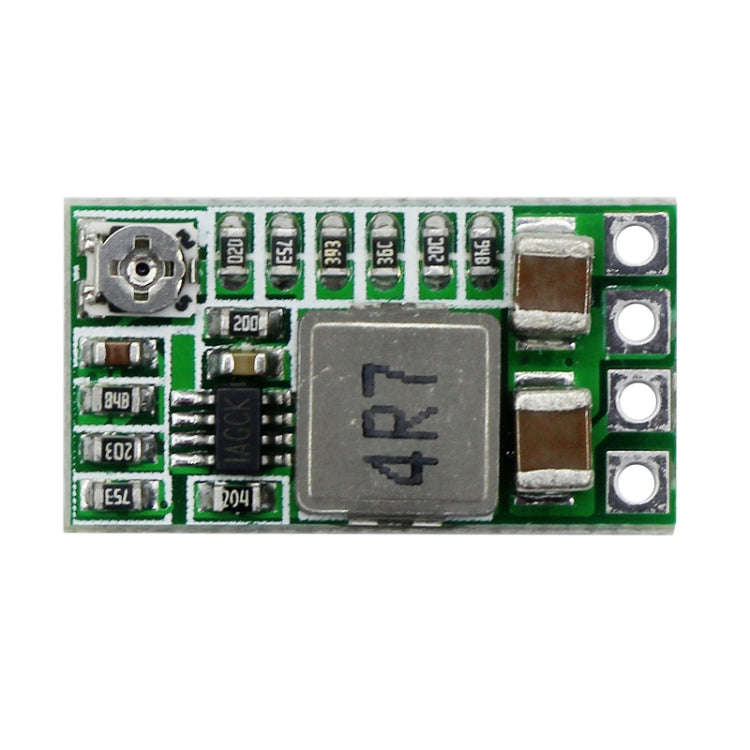

Mini High Efficiency Ultra Small Size DC-DC Step-Down Module 12V-24V To 5V3A Car
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD0526292
Bob Shop ID
605075317
Type:Voltage Regulator
1. Package: Step-down module
2. Power: Standard
3. Size: 20*11*5 mm
4. Input voltage: DC 4.5-24V
5. Output voltage: integrated adjustable and fixed output, fixed output voltage on the back
6. Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
7. Output current: maximum 3A (please pay attention to heat dissipation at full load), the actual test input 12V output within 1.5A without special treatment heat dissipation.
8. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A)
9. Switching frequency: 500KHz
10. Output ripple: 20mV (12V to 5V3A) 20M bandwidth
11. Wiring method: welding
12. Input method: welding
13. Output method: welding / pin header
14. Welding hole spacing: 2.54 mm
15. Output over voltage protection: none
16. Full load temperature rise: 40 C
17. Quiescent current: 0.85 mA
18. Load adjustment rate: 1%
19. Voltage regulation rate: 0.5%
20. Dynamic response speed: 5% 200uS
