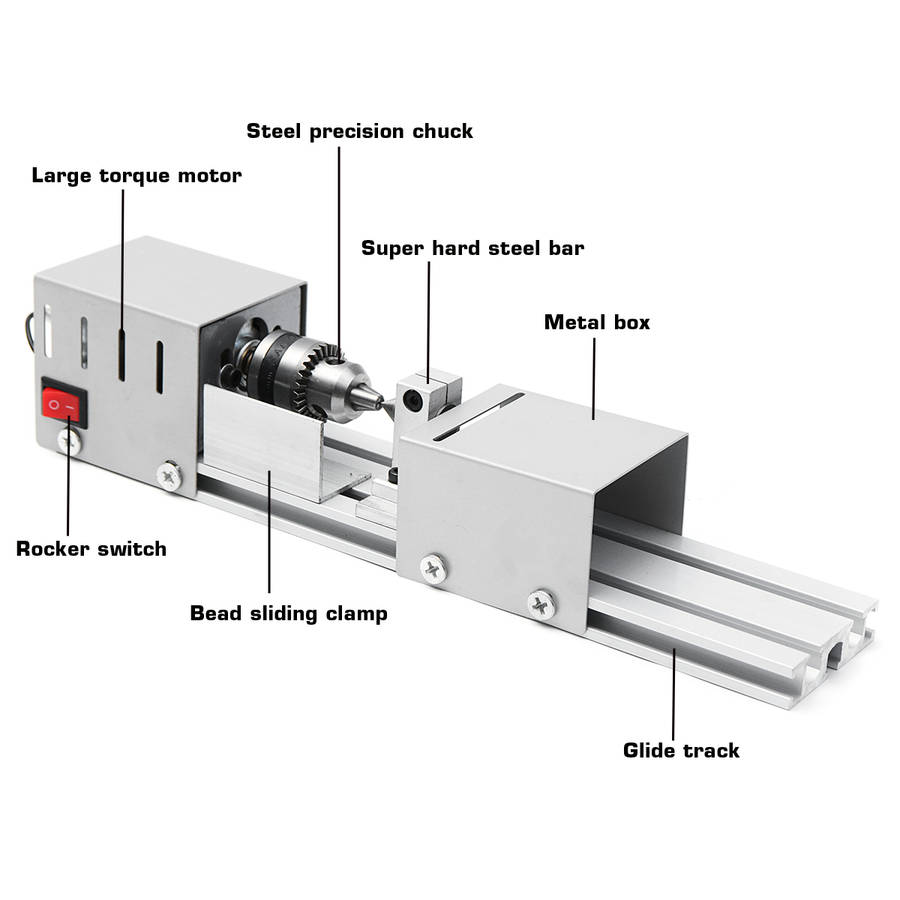

Mini Lathe Beads Machine Woodwork DIY Lathe Standard Set with Power DC12-24V carving cutter
Features:
-With high quality metal thick plate,metal dust cover, with strong convection hole for cooling
-With full wire joints heat shrink tube wrapped
-With large torque ball bearing motor
-With pure steel structure drill chuck
-Small volume, but with high precision, low-noise
-Perfect Designed for home DIY enthusiasts
Specifications:
Power: 96W
Voltage:DC12-24V
Size:305* 63 * 65mm/12.0"*2.5"*2.6"
Chuck clamping range: 0.6-6mm
Speed: 4000-8000 revolutions per minute Seven speed control power supply
Theoretical maximum clamping length: 180mm
The theory of maximum turning diameter: 70 mm
Tips:
1.If the user does not have lathe base experience, when used, should follow: low speed, slowly, cautiously and other security operations.
2.The speed can be adjusted in 0-8000R, cut wood should not exceed 4000, grinding can use higher speed.
3.Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4.If not a cylinder, the speed should be reduced.
5.Tailstock bearing without lock tight.
6. When using a knife, locking the bottom of screw, location should be away from timber 1-1.5cm.
7.If you do not really understand the operation, it is best to consult a professional person.

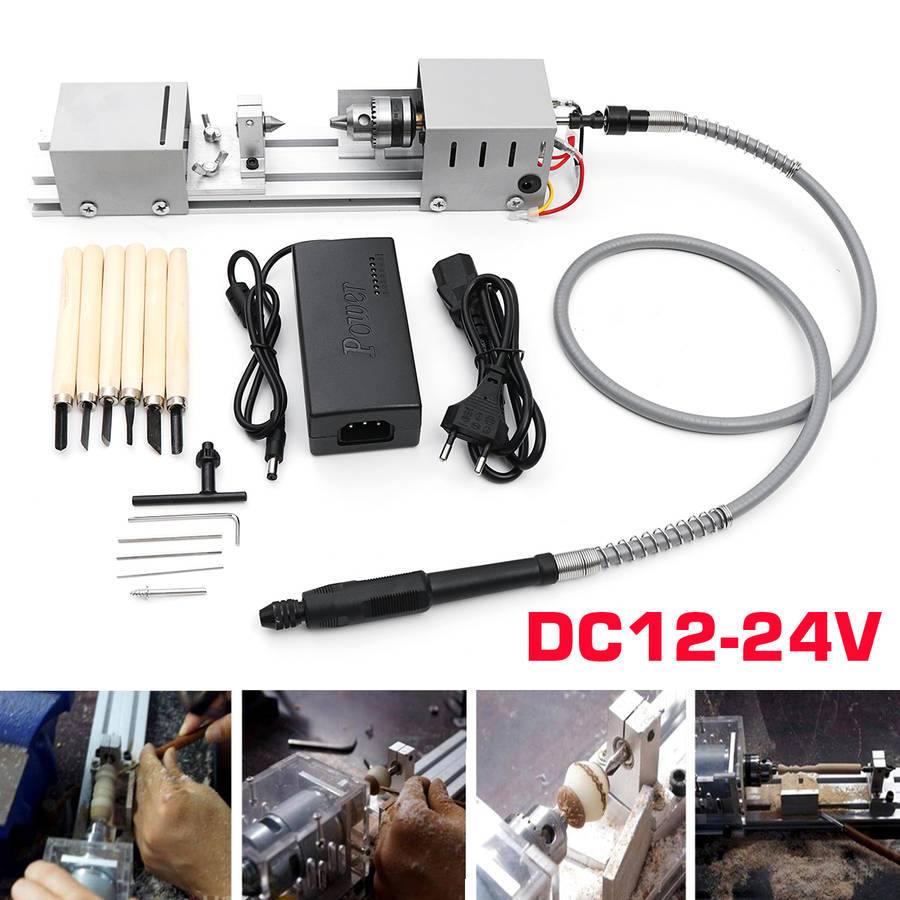

Package included:
1x Mini Lathe Beads Machine

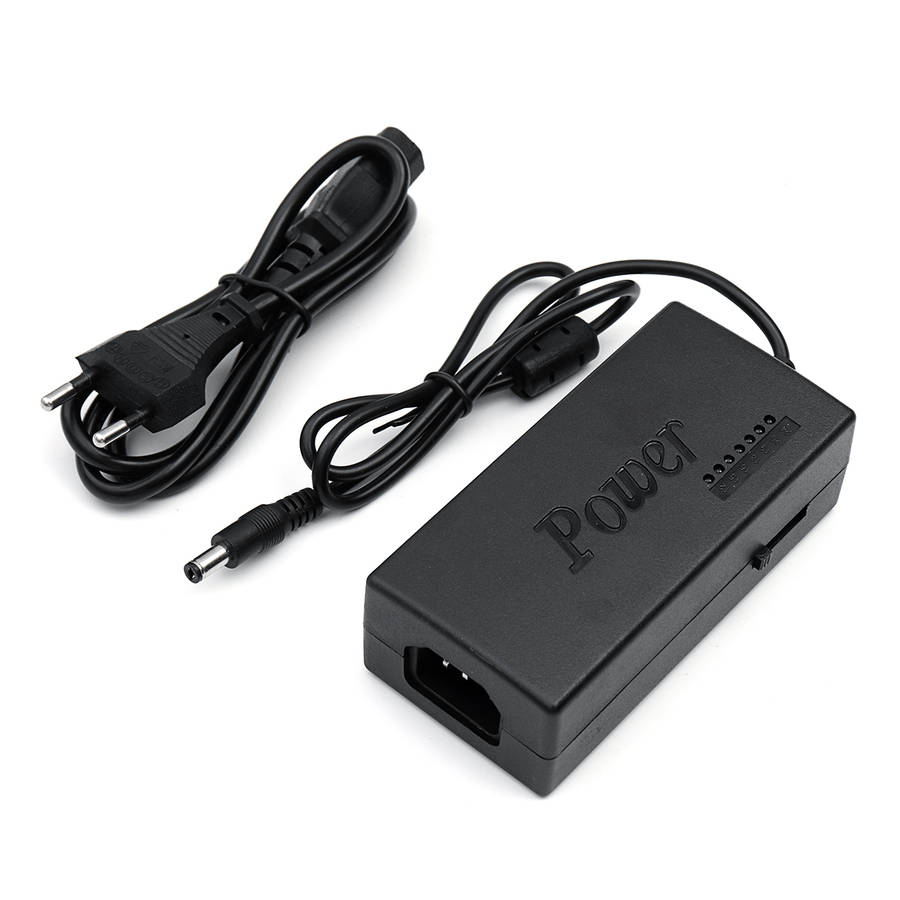

1x Power Adapter
1x EU plug
1x Flexible shaft
1x Turning tool

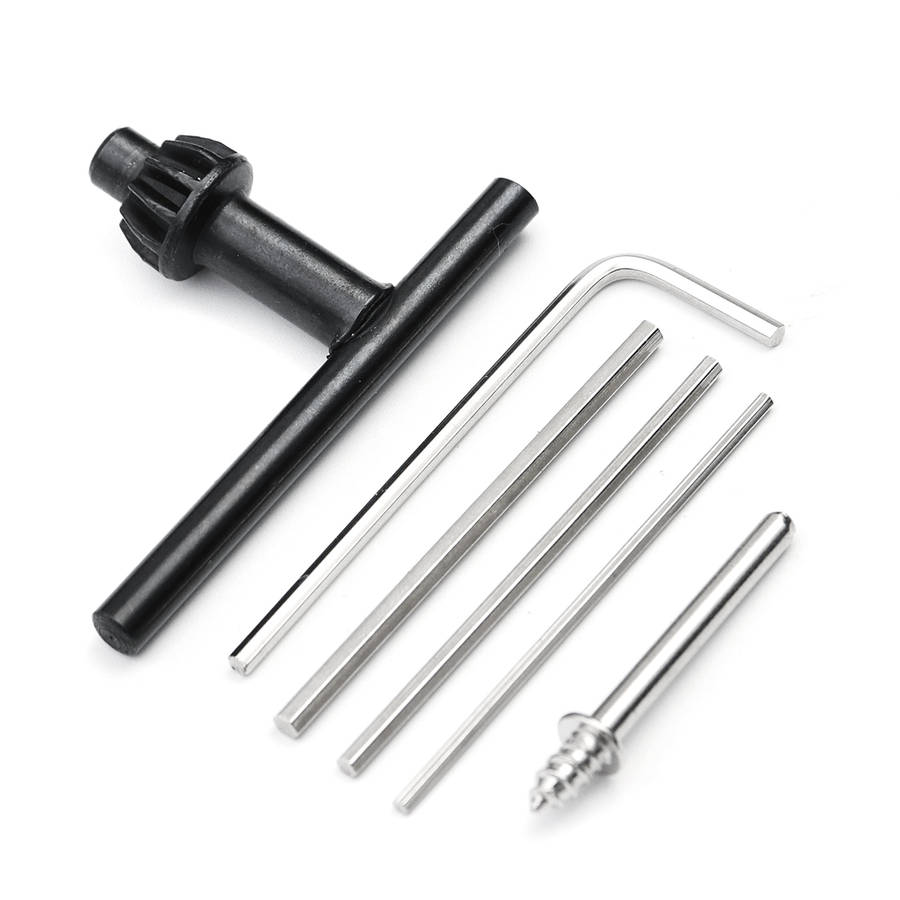

1x Wrench
1x Repair round device
3x Hexagonal fixing pin 1.5mm, 2.0mm, 2.5mm
6x Gravers
