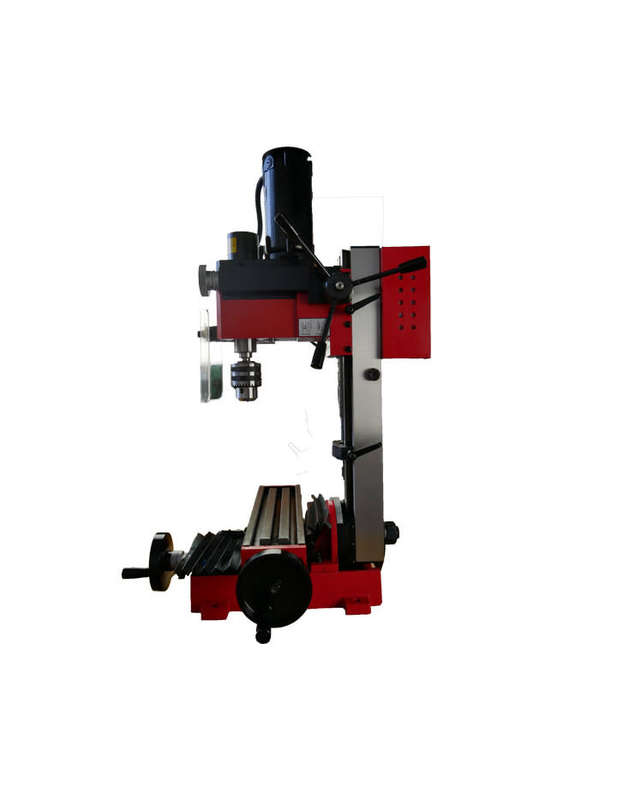

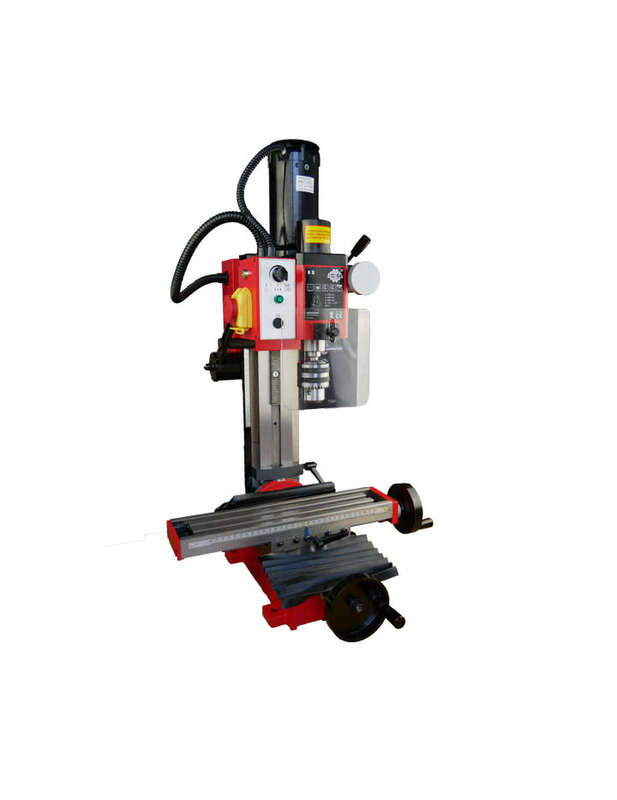

Mini Milling Machine X2 | Sieg X2 Milling and Drilling Machine

Application

Vertical milling machine with drilling function and low vibration cast frame for precise, low vibration milling and B of plastics, non-ferrous metals, steel.

The powerful DC motor with continuously variable power electronics has a wide speed range from 100 to 2500 rpm in 2 gear stages. Thus, both non-ferrous metals as well as steel up to stainless steel can be processed with sufficient torque.

The stable milling column, which can be swiveled +/- 45°, makes it easy to produce milling work and drill holes at an angle to the surface. All three traversing axes are guided in stable, adjustable dovetail guides. Travel in the Z-axis is maximized by the continuous dovetail guide. Thus, the drilling stroke is equal to the maximum travel distance of 180 mm and is not reduced by an additional drilling quill.

The X2 milling machine is ideal for precise drilling and milling in the field of model making, design, jewellery design and crafts.

Features

With cast iron for vibration free running

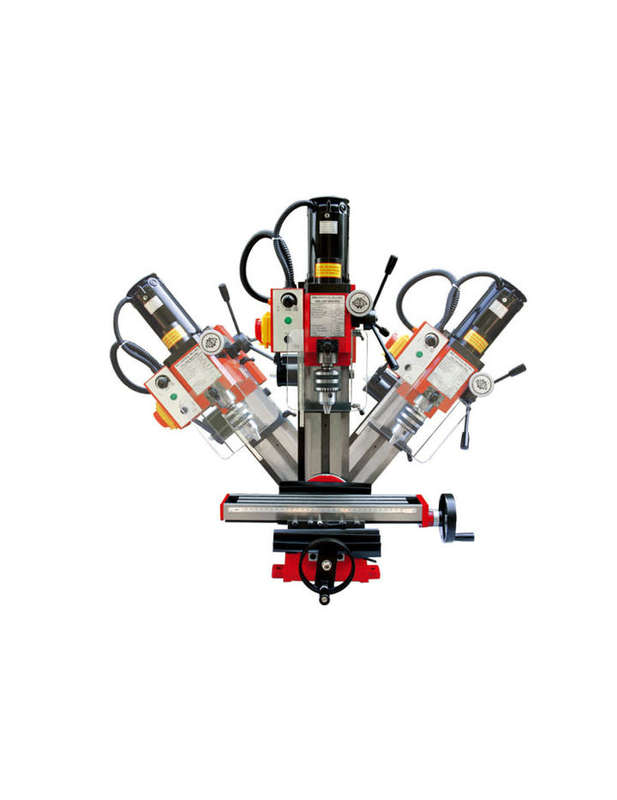

Milling head and column tilts to 45° Left & Right

Variable speed motor with a 2 speed gearbox

Coarse down feed for drilling

Operations Fine down feed control for accurate tool height setting

3MT or R8 spindle fitted with a 13mm drill chuck and arbour

Comparisons:

MAC AFRIC Mini Drilling/Milling Machine - 230V - EMILGH130

SIEG X2P (Fixed Column)

Specifications

Model Year    2017

Drilling capacity    13 mm

End milling capacity    16 mm

Face milling capacity    30 mm

Longitudinal axis (X)    220mm

Crossaxis (Y)    100mm

Headstock travel (Z)    180 mm

Throat    167 mm

Max. distance spindle to table    280 mm

Head tilt    45°L, 45°R

Motor output power    350 w

Spindle speed Low range    100-1100 ±10% rpm

High range    100-2500 ±10%rpm

Table effective size   ~ 390x95 mm

T-slot size    12 mm

Overall dimension (LxWxH)    520x510x760 mm

Package dimension(LxWxH)    540x480x700 mm

Weight (Net/Gross)    50/68 kg

Package type: Wooden Crate

Sold as is with a limited warranty.

IMPORTANT: Colours and control switches may differ to those shown. Lead time is 5 Working Days from proof of payment. Supplied by salvo.africa ( We are presently the sole online distributer for salvo.africa lathes and machinery)

Slight Variations may occur between the the actual item and listing images/information due to continuous improvement.
