Features
Cast iron for vibration free running

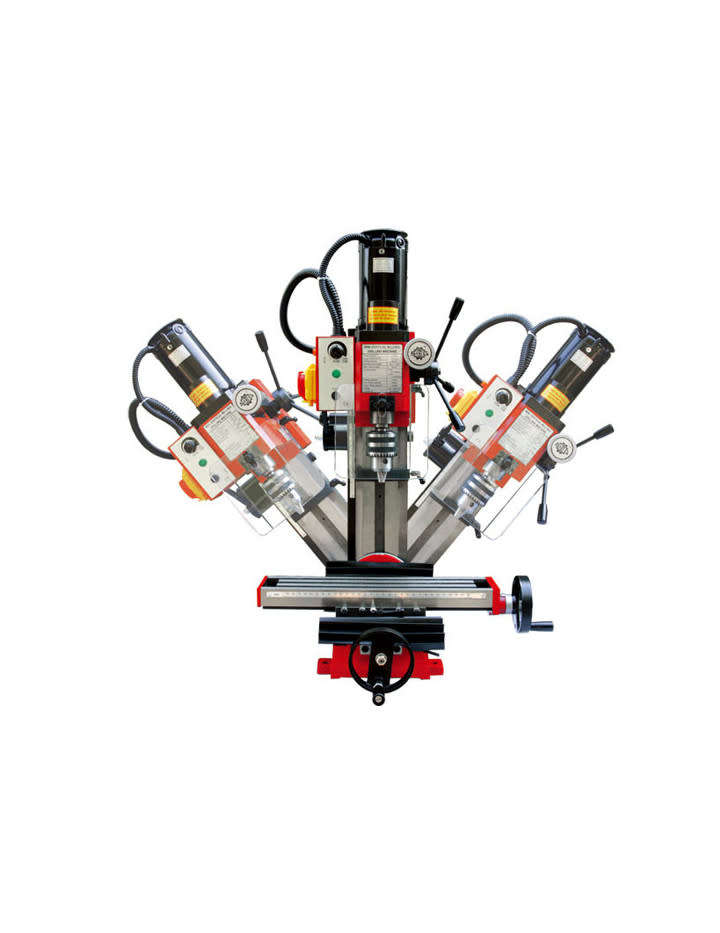

Milling head and column tilts to 45° Left & Right
Variable speed motor with a 2 speed gearbox
Coarse down feed for drilling
Operations Fine down feed control for accurate tool height setting
R8 spindle fitted with a 13mm drill chuck and arbour
Comparisons:
MAC AFRIC Mini Drilling/Milling Machine - 230V - EMILGH130
SIEG X2P (Fixed Column)
Specifications
Model Year 2017 onwards
Drilling capacity 13 mm
End milling capacity 16 mm
Face milling capacity 30 mm
Longitudinal axis (X) 220mm
Cross axis (Y) 100mm
Headstock travel (Z) 180 mm
Throat 167 mm
Max. distance spindle to table 280 mm
Head tilt 45°L, 45°R
Motor output power 350 w
Spindle speed Low range 100-1100 ±10% rpm
High range 100-2500 ±10%rpm
Table effective size ~ 390x95 mm
T-slot size 12 mm
Overall dimension (LxWxH) 520x510x760 mm
Package dimension(LxWxH) 540x480x700 mm
Weight (Net/Gross) 50/68 kg
Package type: Wooden Crate
