Application
Vertical milling machine with drilling and auto-reverse taping function, low vibration milling and drilling of plastics, non-ferrous metals, steel and more.
The X2 milling machine is ideal for precise drilling and milling in the field of model making, prototype design, jewellery design, crafts and light engineering.
Features
Cast iron and Steel construction
Milling head and column tilts to 45° Left & Right
Auto-reverse power taping capability (max. M12 recommended)
Variable speed motor with a 2 speed geared head
Coarse down feed for drilling
Fine down feed control for accurate tool height setting

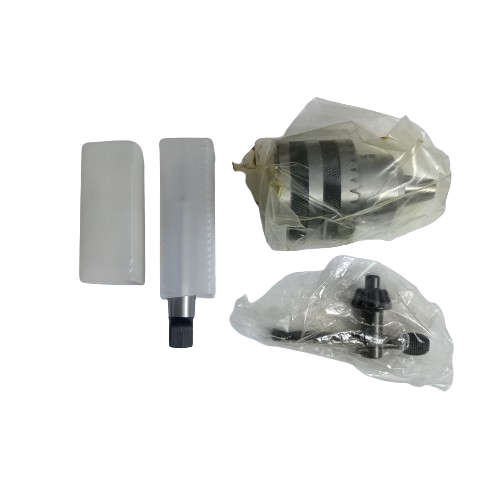

MT3 or R8 spindle fitted with a 13mm drill chuck and Harbour included.
Comparisons:
MAC AFRIC Mini Drilling/Milling Machine - 230V - EMILGH130
SIEG X2P (Fixed Column)
Specifications
Model Year 2017 onwards
Drilling capacity 13 mm
End milling capacity 16 mm
Face milling capacity 30 mm
Travel (X) 220mm (Y) 100mm (Z) 180 mm
Throat 167 mm
Max. distance spindle to table 280 mm
Head tilt 45°L, 45°R
Motor power 350 w
Spindle speed (Low) 100-1100 ±10% rpm
(High) 100-2500 ±10%rpm
Table effective size ~ 390x95 mm
T-slot size 12 mm
Footprint (LxWxH) 520x510x760 mm
Package dimension(LxWxH) 540x480x700 mm (plywood crate)
Weight (Net/Gross) 50/68 kg
PLEASE READ Carefully:
Sold as is with a limited repair only warranty.
IMPORTANT: Colours, labels and control switches may differ to those shown. The motor may be slightly different in appearance to the one shown but will always meet or exceed the ratings specified. Mini Mills/Drills are supplied direct from factory stock and have a lead time of 10 business days from proof of payment plus 2-4 days delivery to your door.
Slight Variations may occur between the the actual item and listing images/information due to the dynamics of this item.
Dried grease used to protect machined surfaces may cause temporary staining after removal. Such stains are best dissolved by daily oiling (most modern oils contain mild cleaning agents and are well suited to the removal of grease stains from cast iron over time)
