Specifications:
Material: Metal
Size: As shown in the pictures

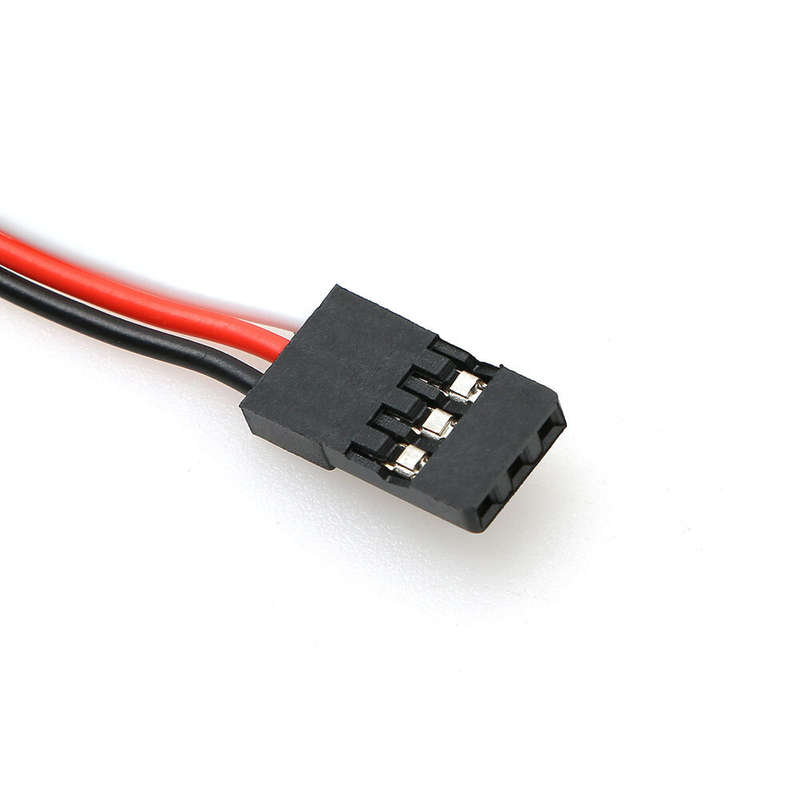

Console Input Voltage: 5V (connected to the receiver)
Connection Terminal: 30V DC (allowable current 2A), 125V AC (allowable current 0.5A)
Main Board Size: 29x9x8 mm

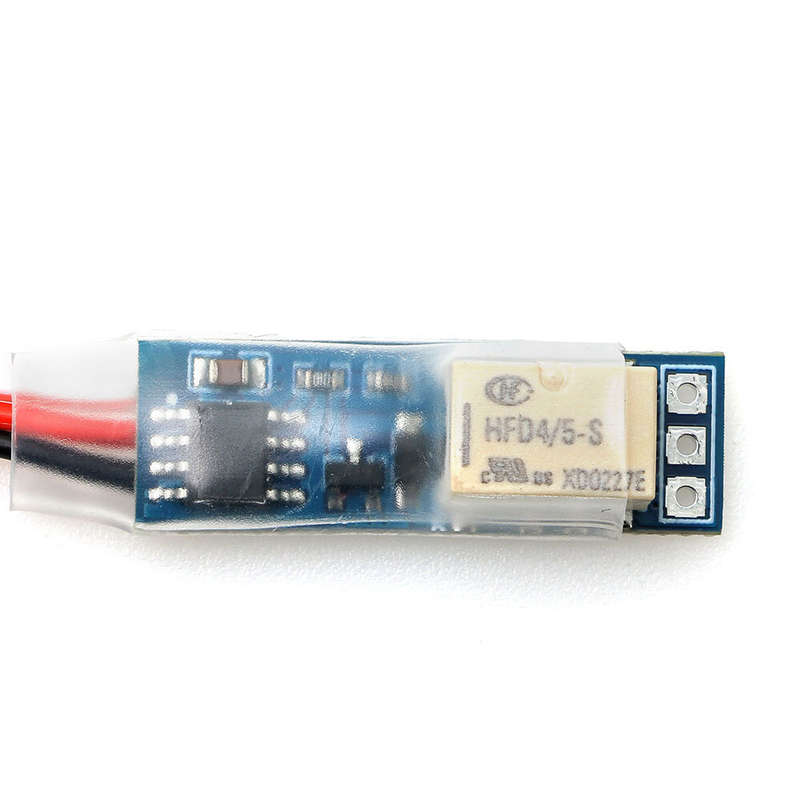

White Relay Size: 10x6.5x5.4 mm
Relay Coil Power Consumption: Approximately 140mW
Weight: 3.3g
Features:
PWM-Controlled Relay Switch: This switch is not like FETs but a direct physical line connection, allowing for higher DC voltages and AC power connections.
Compact and Lightweight: This small-sized relay switch doesn't add unnecessary weight to your model car or boat.

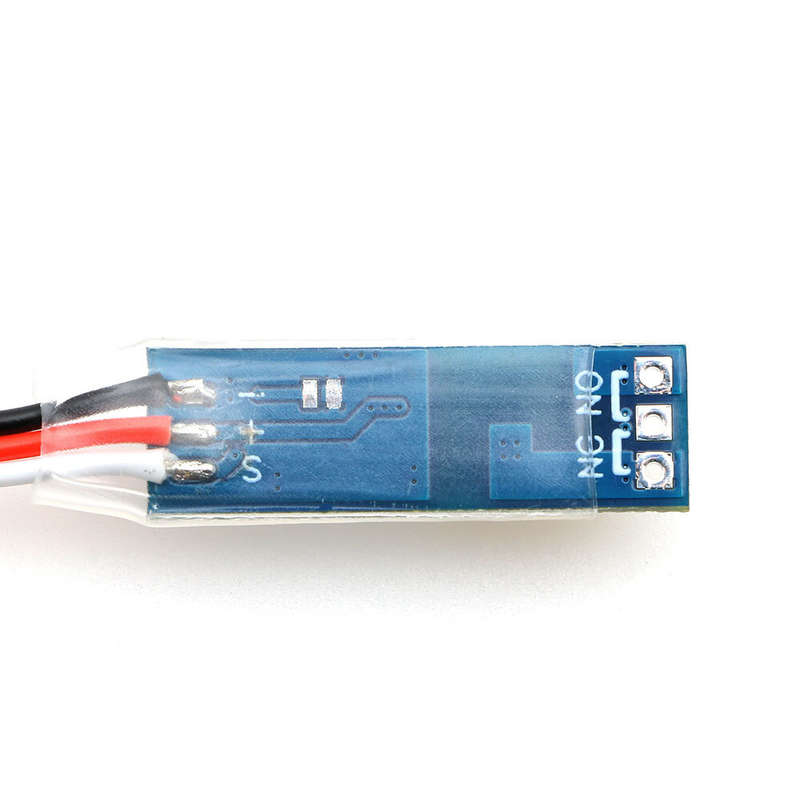

Automatic Disconnect Mode: Solder two joints according to the diagram markings to activate the automatic disconnect mode.
PWM Control: when high (>1750us), the normally open terminal and the common terminal are connected (while the normally closed te
