Mini Multipurpose Machine Set

135mm Jig-saw / Grinder / Driller / Metal Lathe / Wood Lathe / Milling

Main Features:
● 6 in 1 multi metal mini wood lathe machine, enjoy the joy of creation with transformer
● 6 in 1 multi metal mini wood lathe not only has single unit, such as jig-saw, grinder, driller, wood lathe, metal lathe, miller, but also has the 6 in 1 combined set. Base is made of advanced aluminum alloy
● 6 in 1 multi metal mini wood lathe can make up of: Jig-saw / grinder / driller / metal lathe / wood lathe / milling
● Every suitable chisel and gouge can be used
● Motor speed: 20,000rpm
● Headstock speed: 2,000rpm
● Support power: 14.5V DC / 2A / 29W, switching adapter input: 100V-240V
● Material: Carbon steel, aluminum, ABS

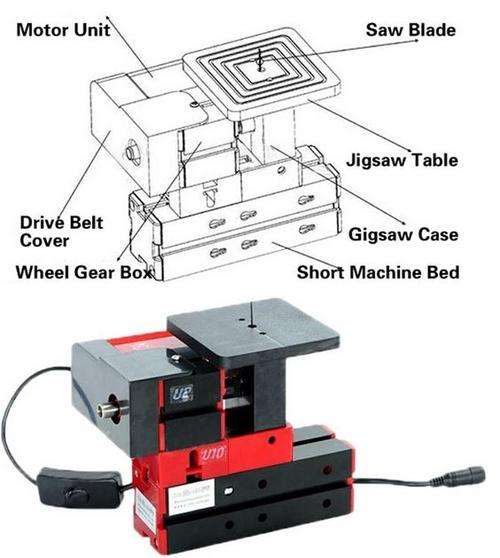

Panel saws:
● Table size: 90 x 90mm
● Stroke of the jigsaw: 4mm
● Max thickness of cut: Hardwood: 4mm, plywood: 7mm, softwood: 18mm, sheet metal: 0.5mm, plexi-glass: 2mm
● Maximum measurements on 3D (L / W / H cm): 15 / 10 / 14
● It is very safe when operating
● Net weight: 0.72kg

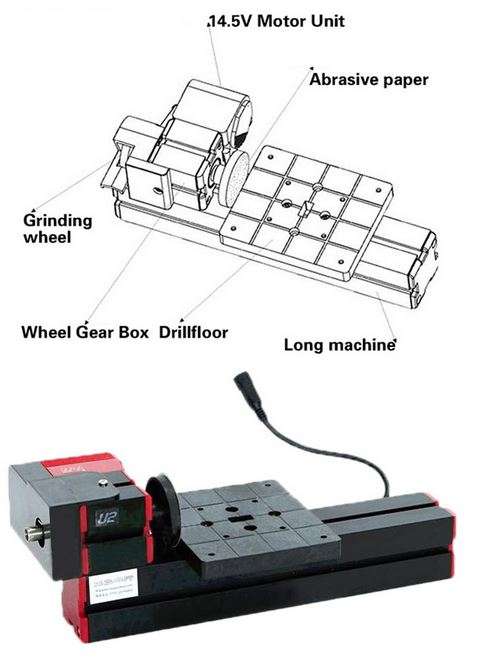

Grinder:
● Can sanding paper: Diameter 49mm, grain 100
● Can process everything that is used in model making
● Maximum measurements on 3D (L / W / H cm): 28 / 5 / 10
● Net weight: 0.75kg

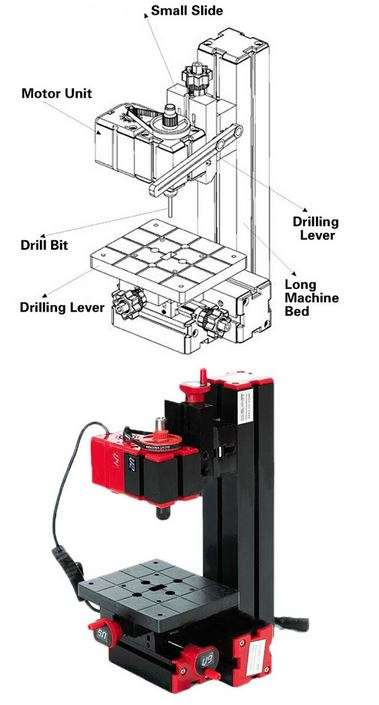

Driller:
● Slide travel: 50 and 20 respectively
● Stroke: 25mm
● 8 collects from: 0.5 to 6 mm
● Table size: 123 x 100mm
● Working radius (distance between drill and machine bed): 71mm
● Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
● Maximum measurements on 3D (L / W / H cm): 15 / 15 / 28
● Net weight: 1.46kg

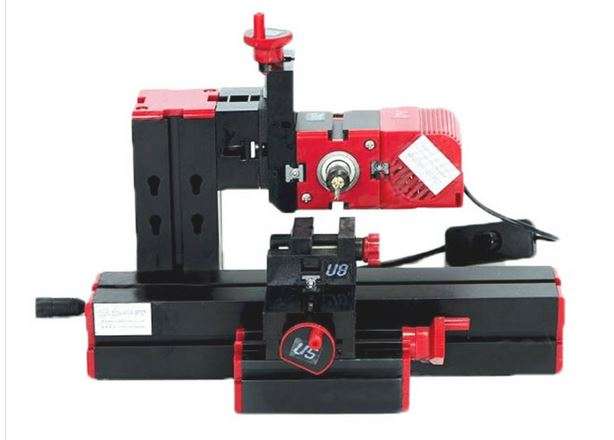

Miller:
● Slide travel: 30 and 50mm
● Collets from 0.5-6mm milling cutter
● Vice capacity: 25 x 25mm
● Can process hard wood strips (beech-tree, nut-tree), wooden bars (max 20mm diameter) or plastic and soft metal
● Do not touch the turning tools, it is very dangerous
● Maximum measurements on 3D (L / W / H cm): 28 / 18 / 15
● Net weight: 1.45kg

Wood Lathe:
● Max cutting diameter: 45mm (bigger diameter is possible with intermediatepiece)
● Center distance: 135mm (Up to 360mm with accessories extra long machine bed)
● All types of wood (also hard wood) can be processed
● Recommended types of wood: Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard)
● Every suitable chisel and gouge can be used
● Maximum measurements on 3D (L / W / H cm): 28 / 10 / 10
● Net weight: 1.28kg

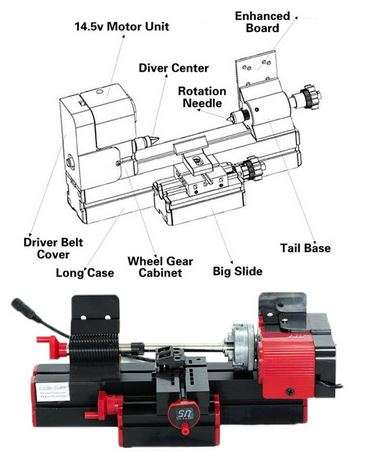

Metal lathe:
● Tree 3-jaw chuck (self-centering)
● Max cutting diameter: 20mm (bigger diameter is possible with intermediate piece)
● Center distance: 135mm (Up to 360mm with accessories extra long machine bed)
● Can process soft-aluminum, brass, copper, wood, plastics, other soft, colored and precious metals
● Maximum measurements on 3D (L / W / H cm): 28 / 10 / 10
● Net weight: 1.35kg

Warning:
● 6 in 1 functions: Milling / sawing / turning lathe / sanding / drilling / wood turning lathe
● 6 in 1 multi metal mini wood lathe is possible to assemble 6 different types of machine, each machine can cause severe injures if handled improperly
● The machines are supplied with sharp tools, handle these with caution to avoid injury
● The workpiece may fly out of the chuck when being machined
● Always make sure that the tool and workpiece are each properly secured
● Use protection goggles when operating
● Never touch the revolving workpiece with any part of your body
● Keep hair and clothing well away from moving parts
● Propulsion is furnished by a 12V direct-current motor
● Keep working place clean and tidy, make sure the assembly of machine part is done correctly
● Never connect the transformer output in parallel with other transformers. If lead, plug or case of the transformer is damaged, discontinue using the transformer immediately
Package List:
1 x Drive Belt Cover, 1 x Machine Bed (Long), 1 x Machine Bed (Short)
1 x Counter Shaft, 1 x Motor, 1 x Sticker
1 x Machine Vice, 1 x Intermediate Piece (U10), 1 x Intermediate Piece (U11)
1 x Lever for Drilling, 1 x Screwdriver, 1 x Small Slide (U3)
1 x Small Slide (U5), 1 x Tailstock, 1 x Big Slide
6 x Collet (0.5-6mm), 1 x Three-jaw Chuck, 1 x Jig-saw Casing
1 x Jig-saw Table, 1 x Gage, 1 x Jig-saw Base
2 x Jig-saw Cap, 2 x Screw (2.2 x 13mm), 2 x Saw Blade
1 x Eccentric, 1 x 3.5mm Brass Collet, 1 x Fixation of Turning Tool
1 x 12V Transformer, 1 x Instructions in 6 Language

Specifications
