Mini NAS
Raspberry PI Compute Module 4 (CM4) 2Gb RAM 8Gb EMMC.
Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Toshiba 2230 - 256Gb NVMe SSD.

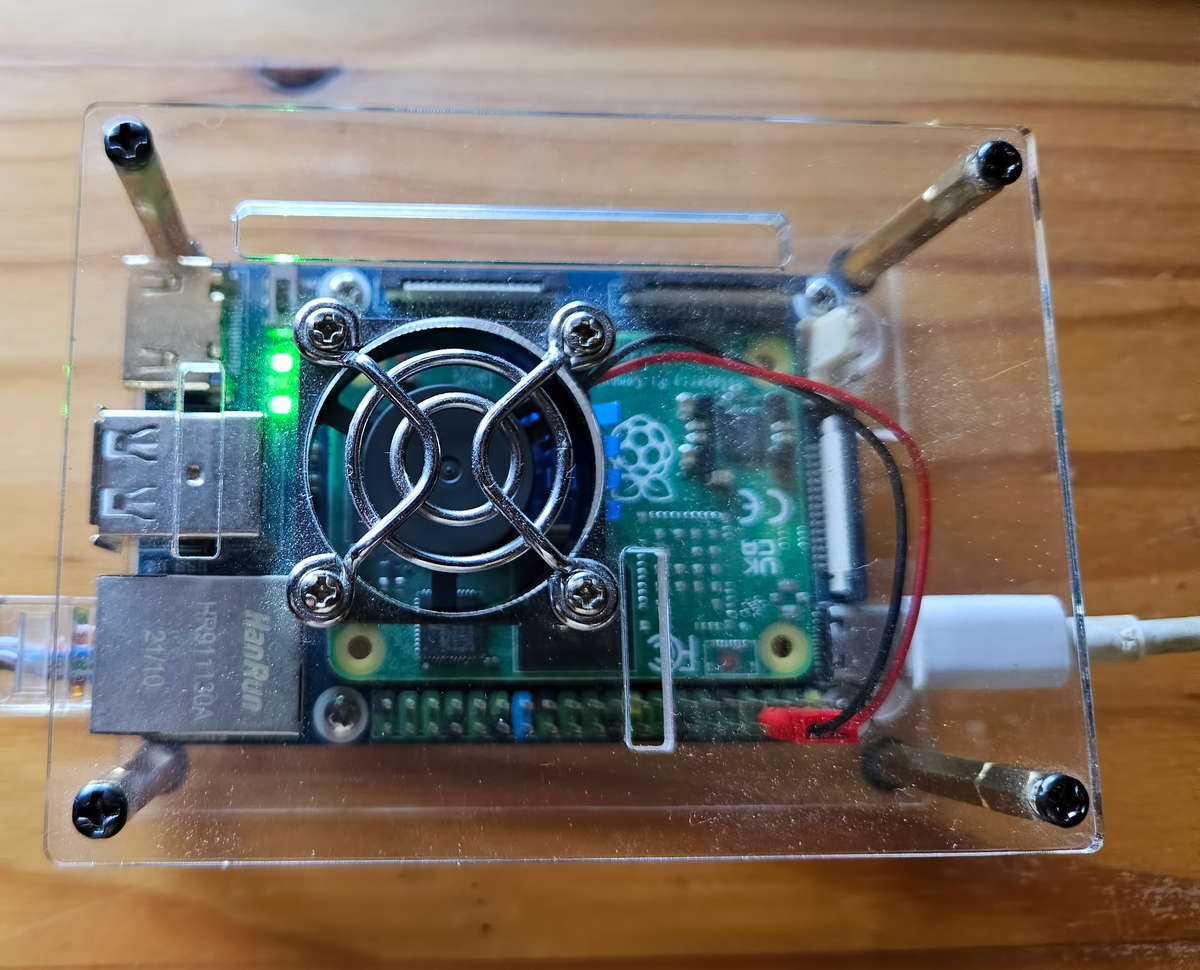

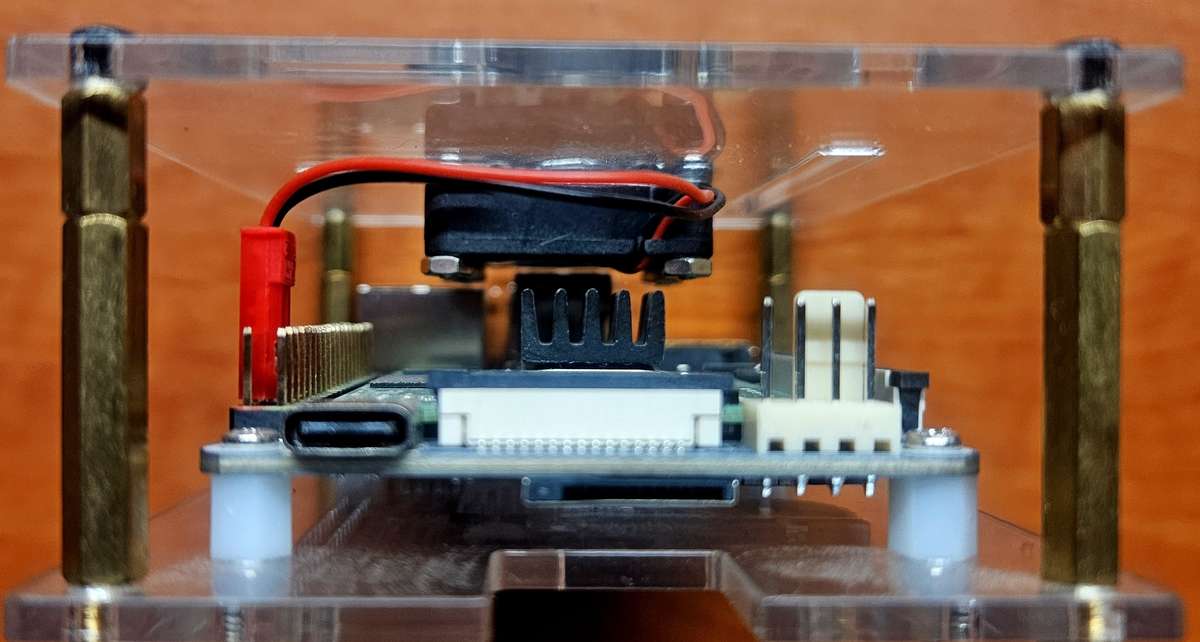

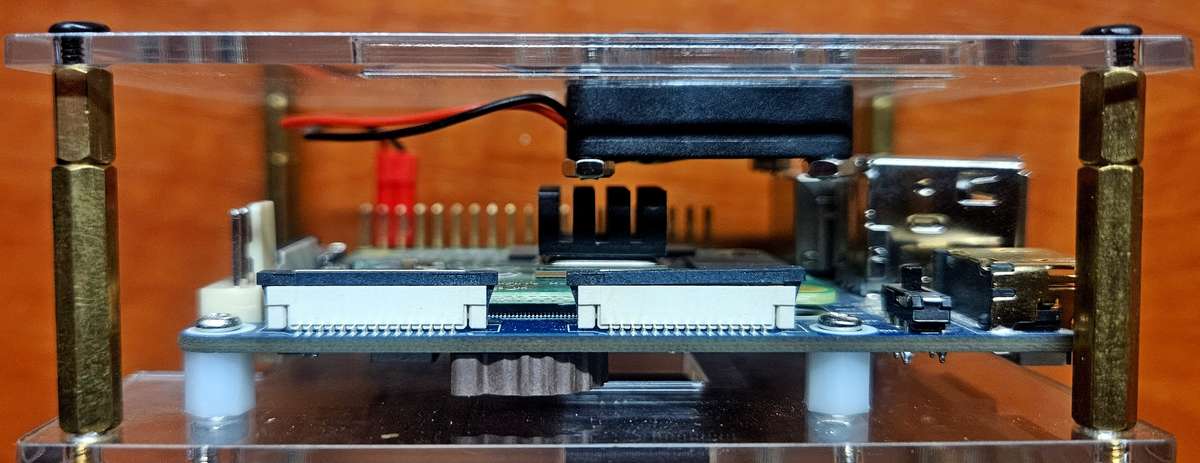

Wave share carrier board all in acrylic case with 5V fan.

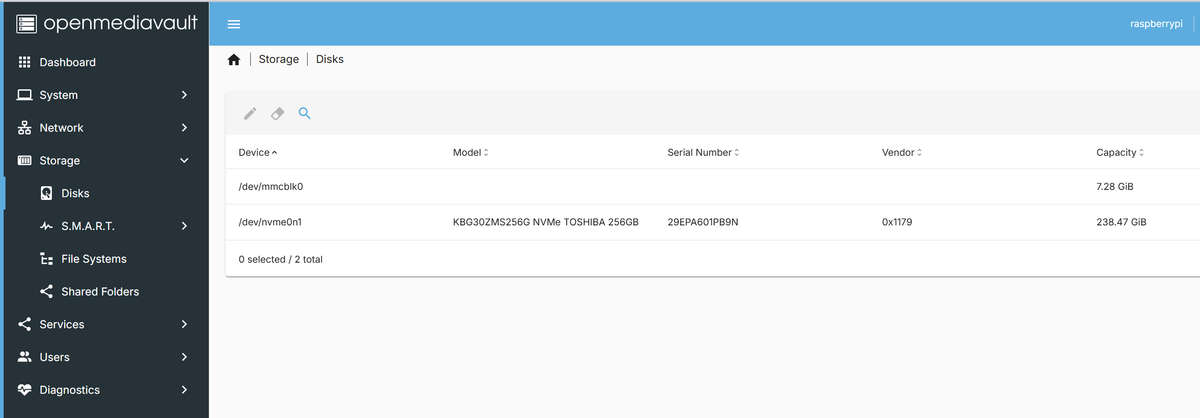

Boots Open Media Vault NAS off the onboard EEMC and the 256Gb NVMe drive is 100% storage.
Additional Storage via MicroSD card socket is an option. (currently not used)
The two USB 2.0 ports could also be used with Memory sticks for addtioanl storage.
USB C to USB A power cable supplied. It will run off a 5V 2A cell charger or a battery bank.

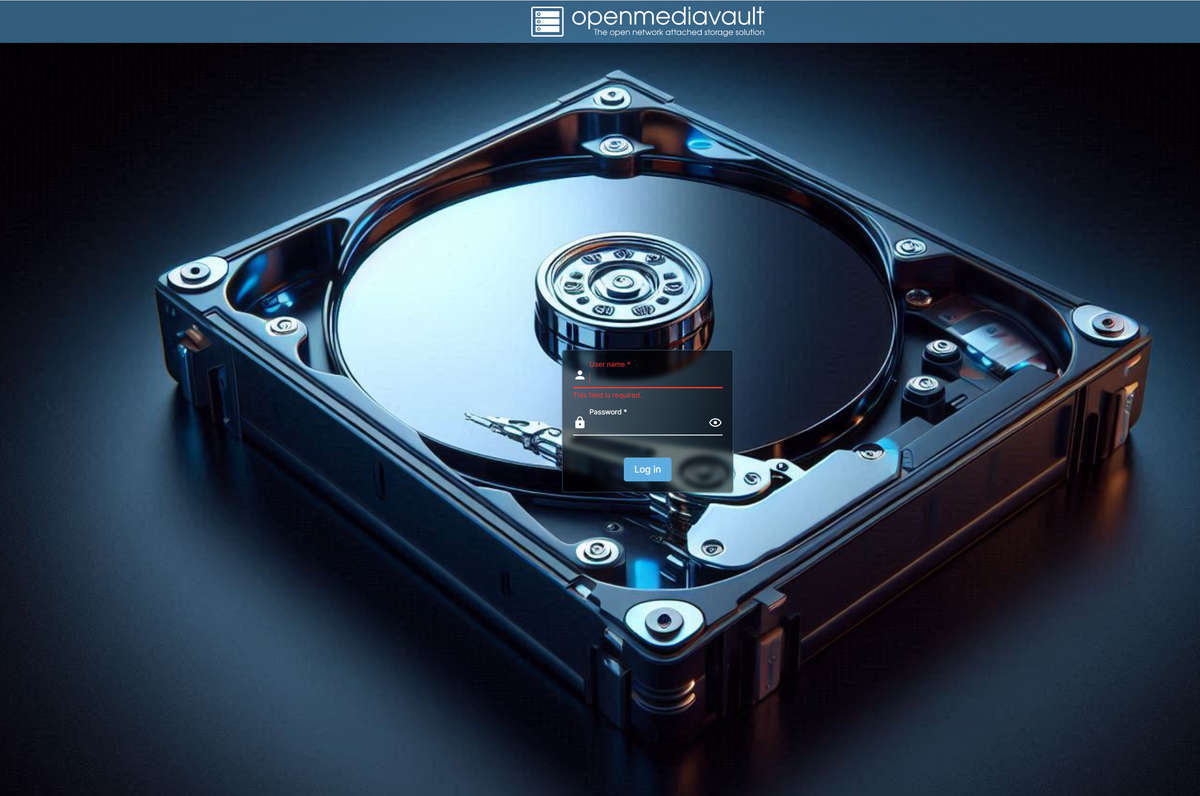

Runs headless (No monitor KB or Mouse are needed) Admin is done via a web Browser.
Boots very fast and file transfer is at Gigabit LAN speed.
Waveshare Carrier board Specs:
CM4 socket suitable for all variants of Compute Module 4

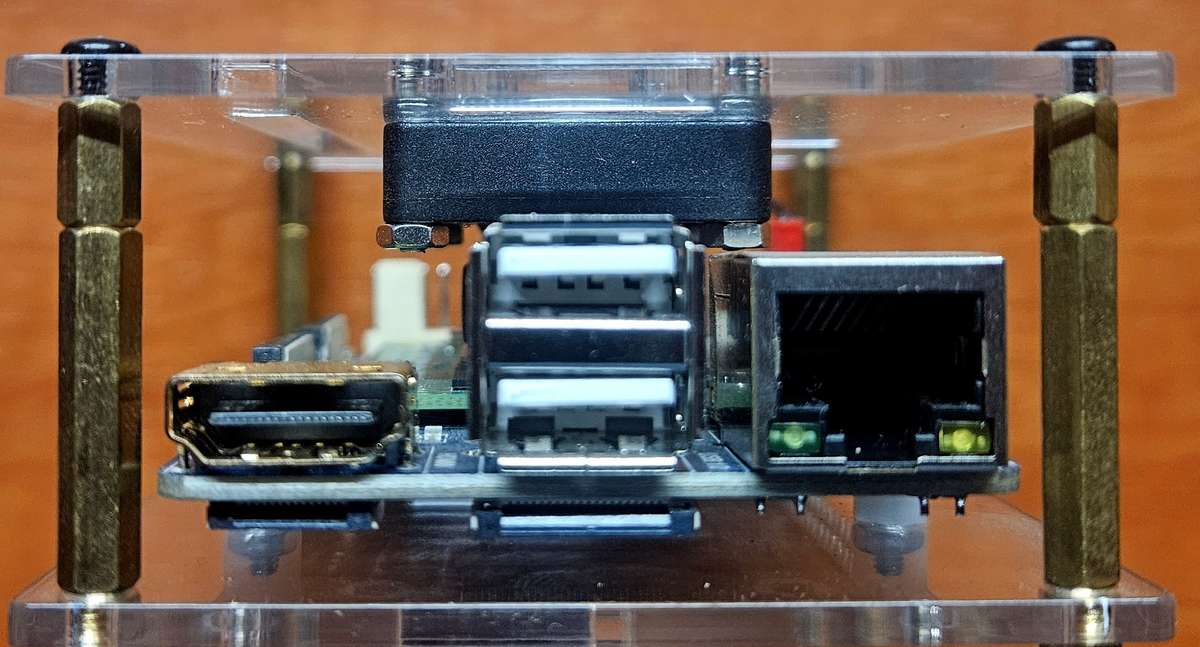

Networking Gigabit Ethernet RJ45 connector

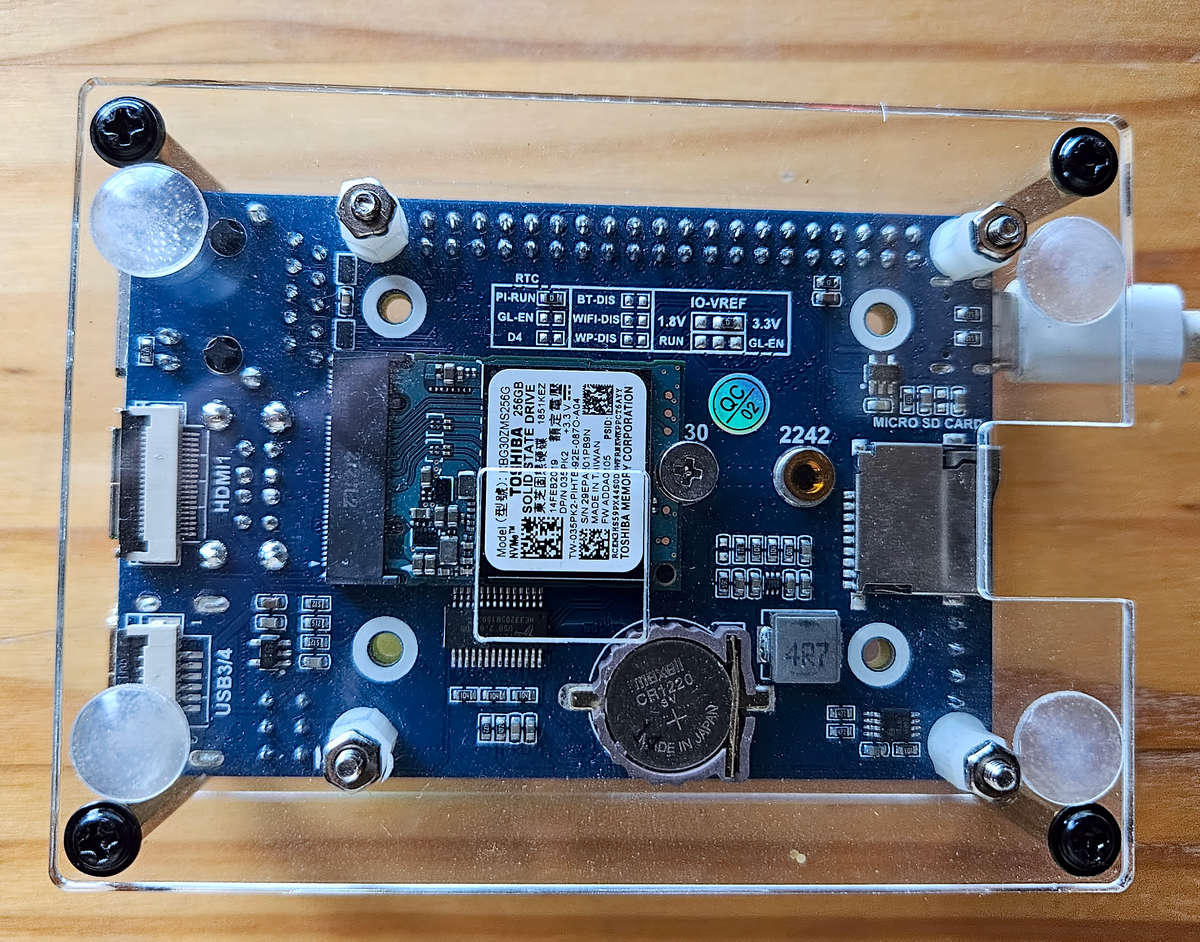

M.2 M KEY, supports communication modules or NVME SSD Connector up to 2242 size.

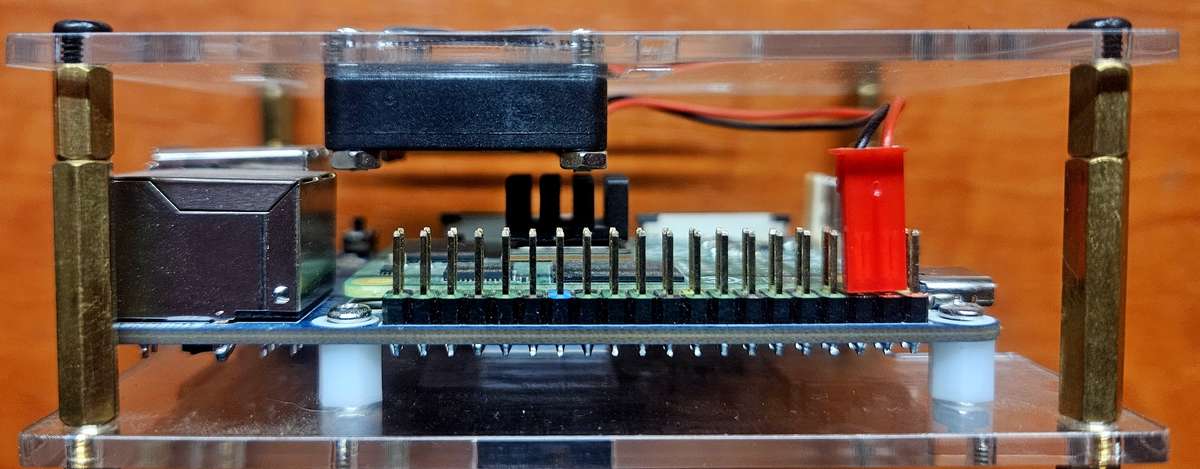

Raspberry Pi 40PIN GPIO header
USBUSB 2.0 Type A × 2, USB 2.0 via FFC connector × 2DisplayMIPI DSI display port (15pin 1.0mm FPC connector)
Camera MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector)
Video HDMI port × 2 (including one port via FFC connector), supports 4K 30fps output
RTC Real-time clock with battery and ability to wake Compute Module 4
Compatible with Pi5- CM5 modules.
