Mini Security Camera (1/3 SONY CCD, Night Vision, Waterproof) - I35

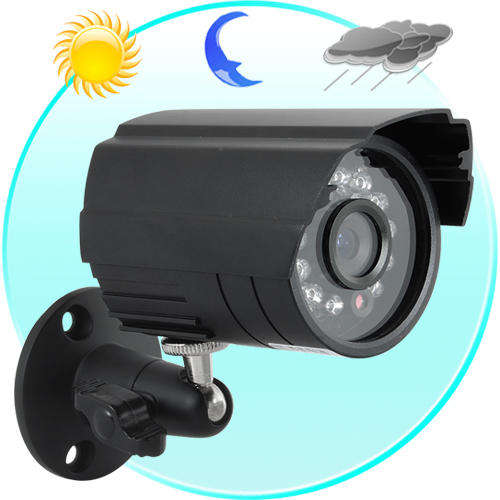

Mini Security Camera (1/3 SONY CCD, Night Vision, Waterproof)

Mini sized Waterproof Night Vision Security Camera with 1/3 SONY CCD. Protect your home or business with this durable, high-quality outdoor security camera with advanced Sony CCD video imaging sensor.

Anyone concerned about security will appreciate this durable, high-quality video surveillance camera. With clear resolution and a long viewing range, this powerful camera is perfect for keeping an eye on the outside of your home or business all day and night, rain or shine. The 1/3 inch Sony CCD lens gives a high quality image and wide viewing angle, while the infrared (IR) LED's provide excellent night vision, even in complete darkness. This new mini size gives you all the performance you would expect from a full sized CCTV security videocamera from Samsung, Panasonic, Vitek, IQ or Messoa, but gives it to you in a half sized mini housing - thereby allowing you to more easily mount this surveillance camera wherever is most convenient for you.

The heavy-duty cast aluminum casing protects this camera from water and stormy weather while the included mounting bracket allows easy installation and aim positioning exactly how you want it. Mounting holes on both the top and bottom of the camera let you install it on top of or under any flat surface.

At a Glance...

• Waterproof Night Vision Security Camera
• Weatherproof from -20C to +50C
• Mini size, max power
• 12 IR LED's for Night Vision
• 1/3 Inch CCD Sony Lens
• Heavy duty cast aluminum housing
• Easy to install and position

Manufacturer Specifications:

• Primary Function: Waterproof Night Vision Security Camera
• Video Format: PAL
• Image Sensor: 1/3 Inch SONY CCD
• Lens: 6mm Auto-Iris Lens
• Horizontal Resolution: 420 TV Lines
• Minimum Illumination: 0 LUX (IR on)
• Effective Pixels: 512(H) x 582(V)
• Electronic Shutter: 1/50 ~ 1/20000 sec
• Exposure Mode: EE (Auto Exposure Electronics)
• IR: 12 LED's for infrared night vision
• S/N Ratio: >50dB
• Viewing Distance:
  - Daytime: 80 - 100 meters
  - Nighttime (IR): 50 meters
• Audio: None
• Operating Temperature: -20 to +50 degrees C
• Connection Type: BNC
• Power Source: Power adapter included
• Dimensions: 166 x 102 x 94 mm (L x W x H)
• Certifications: CE, FCC

Product Notes:

• If you want to monitor several cameras and record the footage, don't forget to check out our BNC compatible Digital Video Recorders (DVR) and Camera Processors
• Provides you with 24/7 security
• Supports PAL color system
• This camera automatically switches in and out of the nightvision mode as needed

Package Contents:

• Waterproof Night Vision Security Camera
• AC Adapter (100-240V, 50/60Hz)
• Manual - English

Frequently Asked Questions:

• Does this camera have audio?
  No. This camera captures video but not audio.
• Do I have to turn night vision on manually?
  No. This camera has a light sensor that detects light levels. It switches to IR mode automatically.
• Is this model compatible with TV systems in North America?
  Maybe. If you live in the U.S., Canada or Mexico, then first check to see if your TV or monitor can switch between PAL/NTSC. If your TV or monitor does have this option, then you can use this camera.
• Is this camera available in an NTSC only model?
  YES. If you need an NTSC model and you will order 25+ pieces then please contact our customer service team.
• Do you connect cables from the camera outside to a monitor/computer or is it wireless?
  The CCTV camera is not wireless/cordless, you will need to connect cables from the camera to the computer, monitor or TV screen.
