Mini Terrestrial Receiver HD DVB-T2 Set Top Box, Support USB / HDMI / MPEG4 /H.264(US Plug)

Decoder
Video Decoder
1. Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
2. MPEG-4 Simple / Main / Advanced Profile at LEVEL3(10Mbps)
3. MPEG-2 Main Profile# Main Level(15Mbps)
4. H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder
1. MPEG-1, MPEG-2 (Layer I/II), MP3, AAC-LC, WMA
2. decoding HE-AAC 5.1 multi-chhannel decoding
3. License: Optional DTS, RM/RMVB, Divx License.

Software Features
1. Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard
2. The speed of the traffic flow of at 50 Mbit / sec
3. Support 3D interface
4. Sleep timer
5. Support teletext/subtitle/muti-language
6. Powerful and highly effective 7-day EPG function
7. AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
8. USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback
9. Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

About the product

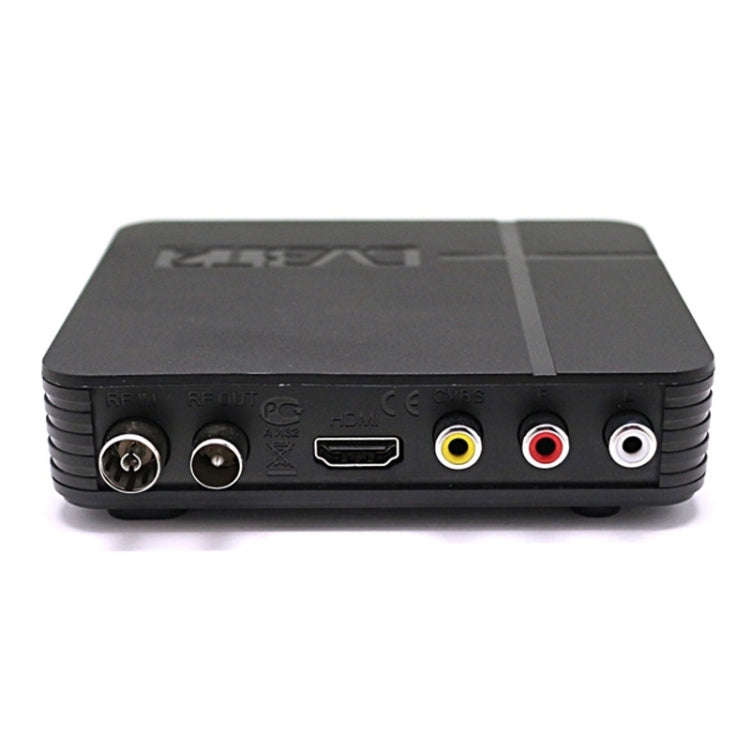

Front Panel:
1. USB 2.0 embedded one host, 4-digit LED display on front panel, red LED Standby, green LED Lock
2. Panel KEY, POWER, CH+ ,CH-, Rear Panel Tuner RF input connector
3. IEC-162-2( Female) Tuner RF Loop through connector
4. IEC-162-2( Male)HDMI V1.3/V1.4
5. RCA CVBS AL AR Connector x1
6. Ypbpr RCAx1, Coaxial x1
Demodulation:
1. Terrisal Receiver Standard: DVB-T2/T(EN_302755 V1.3.1/EN 300744)
2. Input RF Frequency: 48~866MHZ
3. Bandwidth: 6MHz, 7MHz, 8MHz
Constellation:
1. QPSK 16-QAM 64-QAM and 256-QAM
2. FEC1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval:
1. 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4
2. FFT Mode2K/8K/32K
Support:
1. Support Single and multiple PLPS
2. Input level-83 - 5dBm
