Name: Mini USB 3.0 HD 1080P 60Hz HDMI to USB Video Capture Card Game Recording Box for Youtube Live Stream
SKU: 3949019-1727292
Price: 270.00 ZAR
Availability: SoldOut

Mini USB 3.0 HD 1080P 60Hz HDMI to USB Video Capture Card Game Recording Box for Youtube Live Stream

New

10 were available

R270.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Gearify(Blacklisted)

96.19 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Dealer Standard Dealer Warranty

Money-Back Guarantee: 7 Days: 7 Days Money Back Guarantee

Get it now, pay later

Condition

New

Location

International

Product code

3949019-1727292

Bob Shop ID

508412343

Product

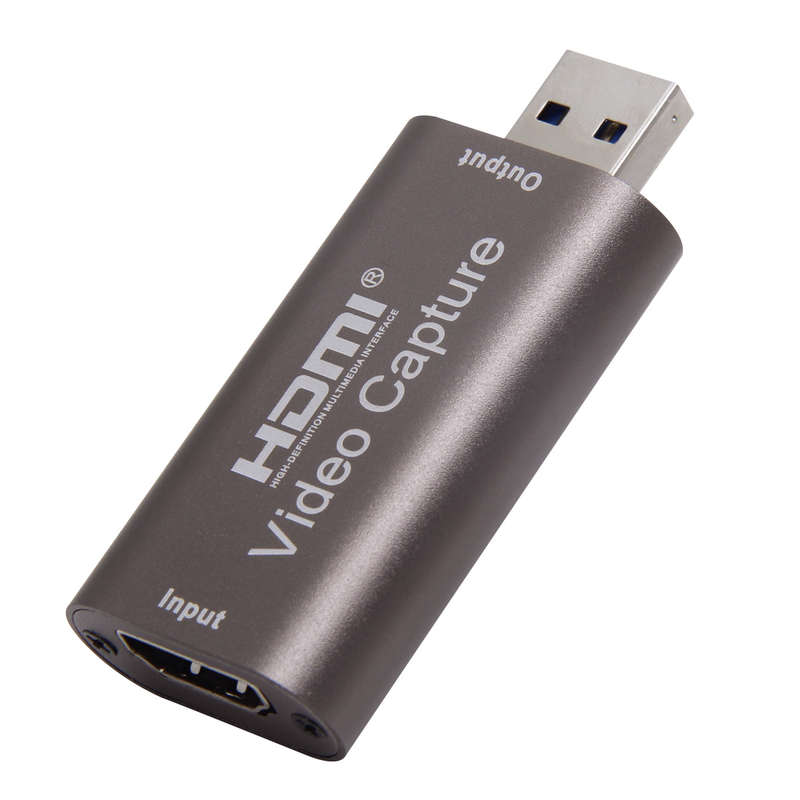

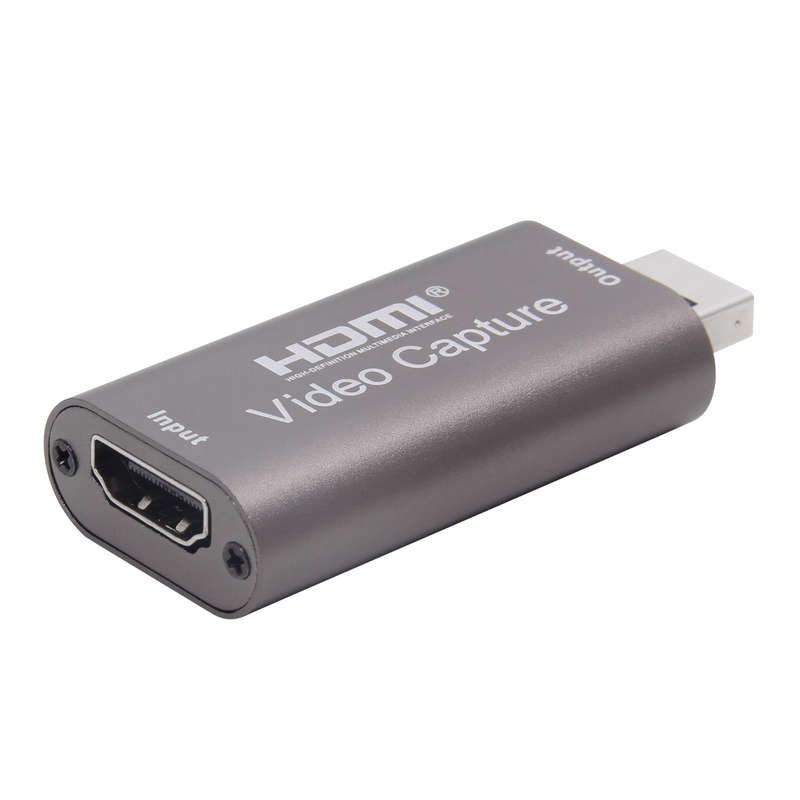

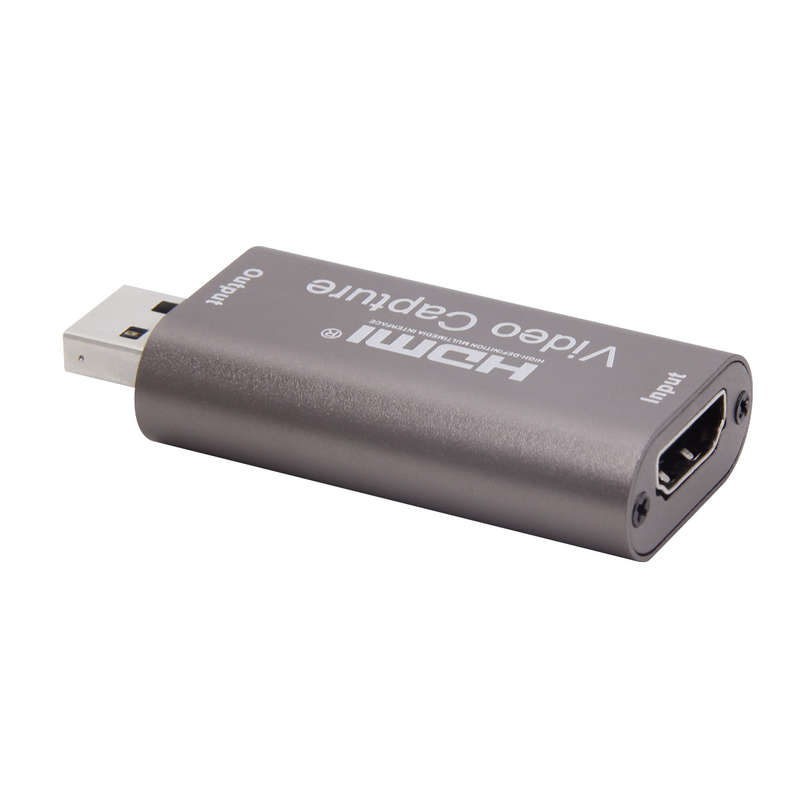

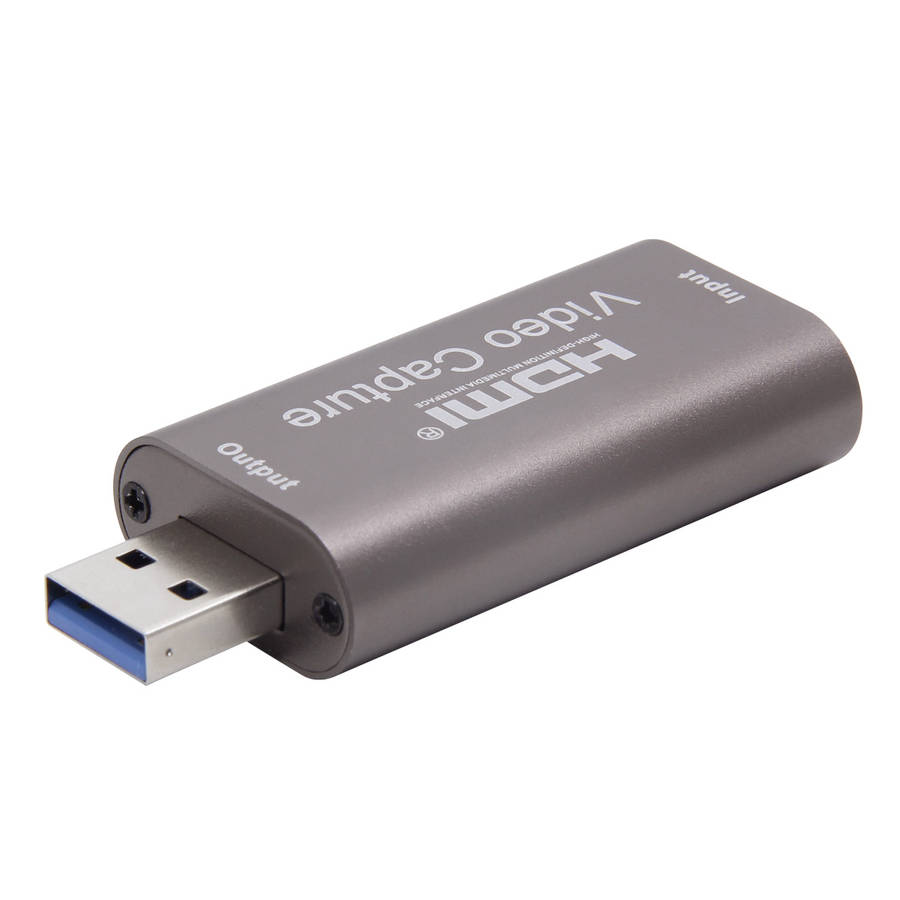

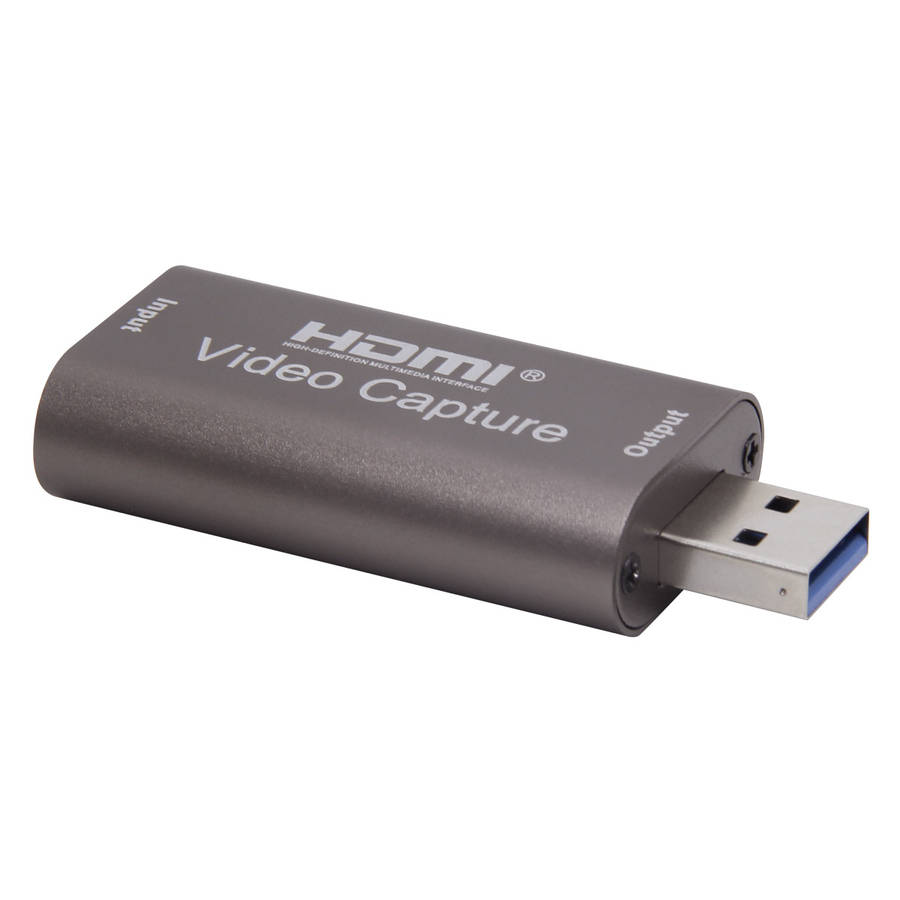

Mini USB 3.0 HD 1080P 60Hz HDMI to USB Video Capture Card Game Recording Box for Youtube Live Streaming Broadcast Game Recording

Connection Operation:

1. Connect the UHD signal source and the HDMI input port of the USB acquisition card with one HDMI line.
2. Plug the USB male of the USB acquisition card into the USB port of the computer.
3. Collection operation steps (OBS): open the software - add a new source - select 'video capture device' - set the screen size - select 'studio mode' (double window) - click 'start recording'.

Computer hardware configuration requirement:

CPU: PC i5-3400 or above; NB i7-3537u 2.0GHz or above
Display card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM

Features:

This USB 3.0 acquisition card can capture both HDMI video and HDMI audio at the same time.
It can transmit audio and video signals to computers and smartphones for preview and storage.
Suitable for HD acquisition, teaching recording, medical image, game, etc.
Support the maximum input resolution of 4K/30Hz.
Support the maximum output resolution of 1080P/60Hz.
Support 8 / 10 / 12 bit color depth.
When standard AWG26 cable is used, the input transmission distance is up to 15m (resolution of 1080P and below).
Support most acquisition software, such as for VLC, OBS, Amcap, etc.
Support for Windows, Android, and Mac.
Conform to USB video UVC specification.
Conform to USB audio UAC specification.
Without external power supply, small and portable.

Specifications:

HDMI resolution: up to 4K/30Hz
Video input format: 8 / 10 / 12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum output resolution 1080P/60Hz
Support audio format: L-PCM
Input cable length: ≤ 15m, AWG26 HDMI standard cable
Maximum working current: 0.4A/5VDC
Operating temperature range: (- 10 to + 55 ℃)
Size: 64 x 28 x 13mm / 2.52 x 1.1 x 0.51in

Package Included:

1 x Video Capture Card
1 x User Manual

Available Options	Available option(s): Color Coffee Please leave a note at checkout with the selected option(s).
Important Information	If you require more information on a product or have any pre-sale questions, please feel free to inquire. Product images shown are for illustration purposes only and will only include the product(s) as per the description, title and option(s) as indicated. Please confirm stock availability before purchasing.
