MINI VCI for TOYOTA TIS Techstream, 2014 Newest Version: V9.31.000
MINI VCI FOR TOYOTA TIS Techstream V9.31.000 support Toyota TIS OEM diagnostic software; high performance with ARM CPU inside; high reliability of products using SMD chip, and certified by CE and FCC.
Support all the diagnostic communication protocols needed for Toyota (since 1996).
Features:

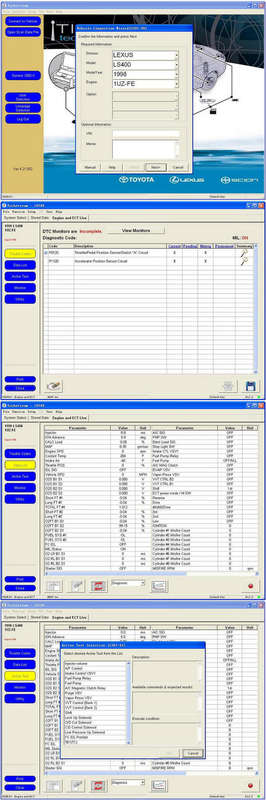

Support Toyota TIS OEM diagnostic software
Cost-effective, the price of product is only one-third of similar foreign products.
High performance with ARM cpu inside.
High reliability of products using SMD chip, and certified by CE and FCC.
Support all the diagnostic communication protocols needed for Toyota (since 1996).
Upgrade the firmware via the Internet to improve product.

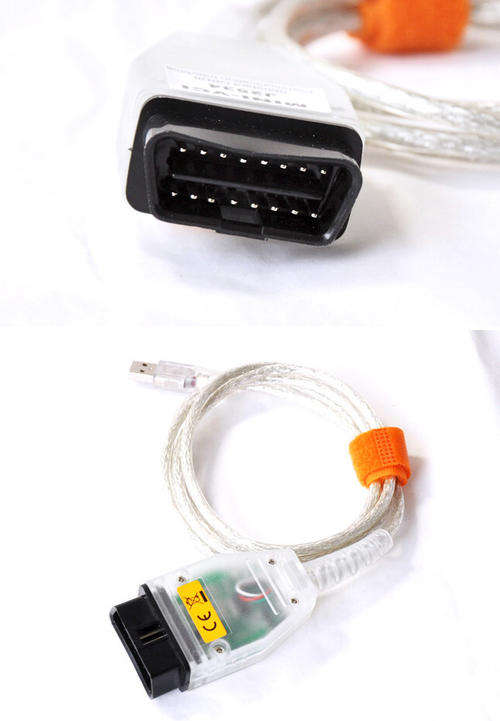

not only provides commonly used J1962 connector, but also provides the old 22pin connector for Toyota.
Using online feedback function for technical support.
Supported Protocols
K-Line ISO 9141
KWP 2000 ISO 14230-4
SAE J1850 PWM
SAE J1850 VPW
CAN 2.0B ISO 11898
CAN ISO 15765-4
Specifications
Operating Temperature: -20 to 70 C ( -4 to 158 F )
Storage Temperature: -40 to 85 C ( -40 to 185 F )
Diagnostic Interface: 16 PIN
USB Interface: USB 2.0
Power: DC 5 V - 36 V
Consumption: 0.3 W
Dimensions: 76 mm(2.99")*43 mm(1.69")*19 mm(0.75") (Length*Width*Height )
Net Weight: 100g
Gross Weight: 350 g
Package Contents:

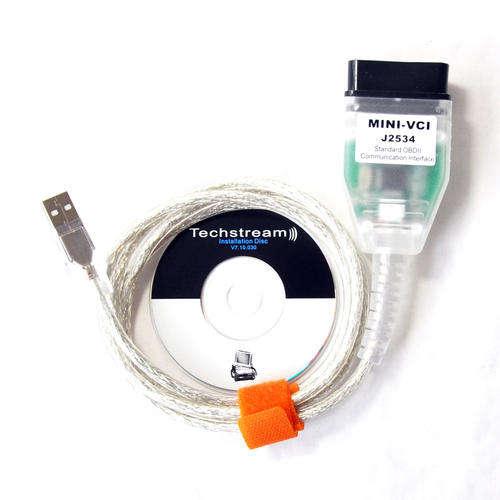

1pc x Toyota MINI VCI OBD2 scan interface
1pc x CD Driver
