Mini Vehicle GPS Tracker, TK06A, Real Time, GSM, Free Web Tracking (LOCAL STOCK)

Products Details:

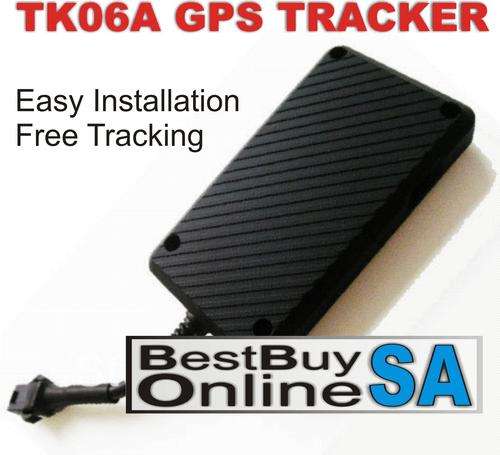

TK06A GPS tracking locator is a compact and powerful locator, ideal for covert installation.
These units are mainly used in monitoring and management of company and private vehicles.

The unit uses Intelligent GPS Positioning and GPRS data communication to online site to track unit.
The tracker can be accessed through mobile phones, computer,etc., anywhere at any time to determine the latest vehicle position, speed and direction of the other information.


Main functions:

1 GSM quad-band frequency for globe use;
2 Continuous GPS positioning, and GPRS real-time report;
3 Support location enquiry through SMS;
4 Built-in vibration sensor for intelligent vehicle anti-theft system;
5 External fuel/electricity cut-off relay for remote control of vehicle;

Product Parameters:

1 GSM frequency ranges: 850/900/1800/1900
2 GPRS: Class10, TCP/IP
3 Working voltage: 9~24V DC
4 Working current: ≈22mA (12V DC)
5 Working current: ≈12mA (24V DC)
6 GPS positioning time: cold start≈38s (Open sky), warm start≈32s, hot start≈2s (Open sky)
7 GPS positioning accuracy: 10m (2D RM)
8 Working ambient temperature: -20°C~+70°C
9 Working ambient humidity: 20%~80% RH
10 Dimensions: 90 (L) × 45 (W) × 14(H) mm

Web based platform www.gps228.com.

Package Included(per unit):

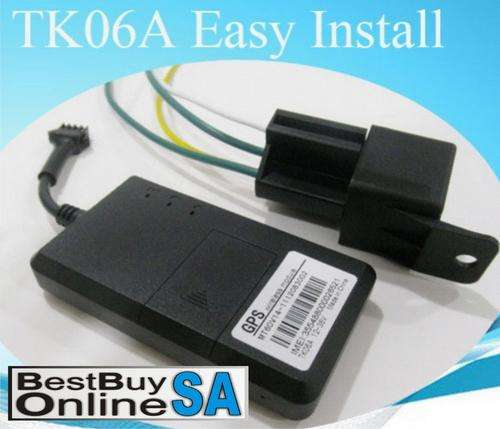

1x  TK06A Unit

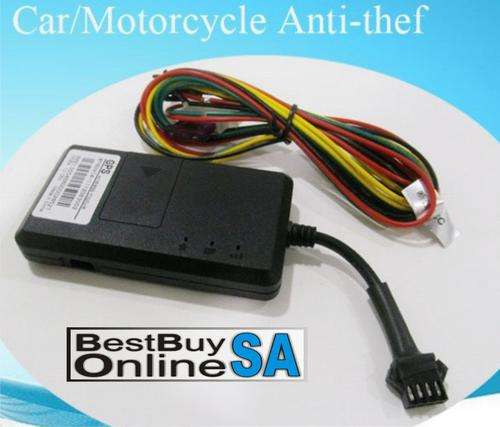

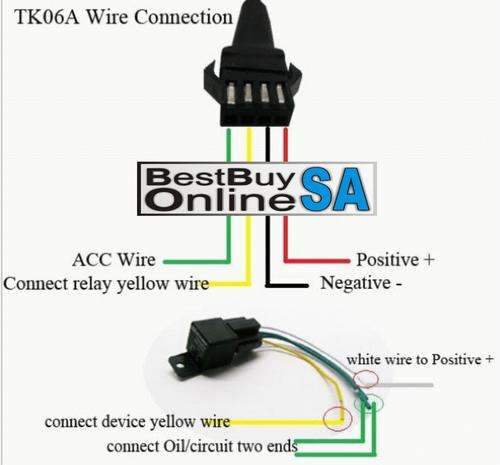

1x  Wiring harness 4 pin
1x  Fuel cut off relay
1x  User manual
