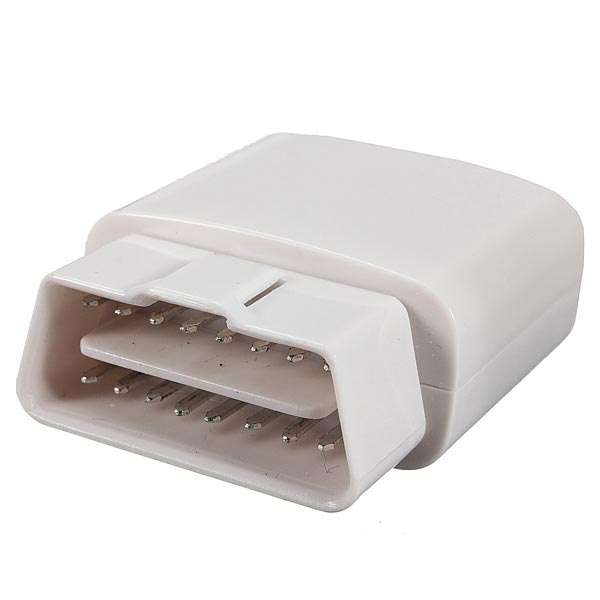

Mini Vgate WIFI ICar IV350 ELM327 OBDII OBD2 Diagnostic Scanner for iOS Android

Features:

1. Fully compatible with ELM327 V1.4b.
2. All ELM327 supported software are available to use.
3. Faster than ELM327 four times or higher. (ELM327 is RISC 8bit 44MHz MCU, iCar is ARM 16bit MCU)
4. Due to the android diagnostic software becomes heavier to run, suggest to use on smart phone with CPU 800Mhz or higher, 1GHz recommended.
5. Built in power switch.
6. Low standby power consumption sleep mode.
7. Lower power consumption than ELM327
8. LED indicator is in the front side toward user for easier check of linking status.
9. Support J1939 protocol more than ELM327.
10. WiFi 802.11 b/g or 802.11n module.

Specifications:

1. OBDII decode chip: ARM 16bit MCU
2. Firmware: ELM327 Version 1.4b compatible
3. Transfer baud rate: 4800 / 9600 / 10400 / 38400 (default) / 115200 / 500K
4. Input interface: OBDII male 16pin
5. Output interface: Wifi 802.11 b/g or 802.11n after 2013 Feb 01
6. LED Indicator: Power(red) / OBD(green) / Link(blue) (PC or smart phone)
7. Operating Voltage: 12V from car OBD2 socket, including over voltage /shortage protection
8. Nominal Idle current: 45mA

9.Communication range: 500m open field
10.SSID: VGATE (discontinued) or BUYOBD (current)
11.Encryption: Open (VGATE) and WEP shared/WEP128 (BUYOBD)

Usage:

1. Keep car key at off position
2. Plug the Vgate scantool into Car OBDII female socket.
OBD2 socket is usually below the driving wheel.
The Vgate should blink all 3 LEDs and off again.
Only red power LED remains on.
3. Insert car key.
4. Switch car key to Accessory ON position,
5. Turn on WiFi of PCtebook/smart phone.
Check Windows control panel>wireless network>Setting>Advanced>Wireless mode>IEEE 802.11b/g/n.
Check android wifi setting, turn off existing link.
Check iPhone Wi-Fi networks, turn off existing link.
6. Scan the Vgate wifi device from your Desktop/Notebook PC/PDA/phone.
Find SSID "VGATE" or "BUYOBD".
The Vgate blue LED should be on now. Otherwise, the device doesn't respond to the scanning.
7. For Windows/Android,
If SSID is "VGATE", it is DHCP mode, not need to set up.
If SSID is "BUYOBD", enter 13 digits password shown on the label of the white plastic case.
IP: select "Fixed", and enter "192.168.0.10"
Subnet mask: enter "255.255.255.0"
DNS: keep blank
For iPhone/iPad:
If SSID is "VGATE", it is DHCP mode, not need to set up.
If SSID is "BUYOBD", enter 13 digits password shown on the label of the white plastic case.
IP: change from "DHCP" to "Fixed"!
IP: enter "192.168.0.11" or later
Subnet mask: enter "255.255.255.0"
HTTP local port: enter "35000"
8. App setup: select Vgate device as KiWi wifi or ELM327.
Click link, app will build a link to Vgate.
App may take time for scaning vehicle protocol less than a minute or so.
App starts to show static data once recognize the protocol and has correct table of associated sensor.
The Vgate green LED should be blinking now.
The faster data rate the protocol is, the the faster the green LED blinks.
Turn off the app, not minimize", if app fails to link and doesn't show data. Start another app and try again.
Some vehicles may have to turn car key to "ON/Start" position to activate car ECU.
Turn car key to "ON/Start" position to read real-time data.

Communication Protocol:

OBDII 16-pin DLC definition:
1. n/a
2. Bus + (SAE J1850 PWM, VPW)
3. n/a
4. Battery -
5. Signal -
6. CAN High (ISO 15765-4)
7. K Line (ISO 9141-2, SAE J2234)
8. n/a
9. n/a
10. Bus - (SAE J1850 PWM, VPW)
11. n/a
12. n/a
13. n/a
14. CAN Low (ISO 15765-4)
15. L line (ISO 9141-2, ISO 14230-4)
16. Battery +
Only pins 2, 4, 5, 6, 7, 10, 14, 15, 16 defined by above standards read data.
Other customized pins are not supported.
Please confirm OBDII label located under front engine hood.

Support OBDII/EOBD2 protocols:

ISO 15765-4 (CAN-B 125Kbps, started since 2003 in USA)
ISO 15765-4 (CAN-C 500Kbs, 11bit ID, 29bit ID, started since 2003 in USA)
ISO 14230-4 (KWP2000)
ISO 9141-2 (5 baud init. 10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
SAE J1850 VPW (10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
SAE J1850 PWM (41.6 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
SAE J1939 the Data link connector standard

Function:

1. Read more than 3000 car manufacturers' stand DTC and private DTC (diagnostic trouble codes) and its meaning.
2. Clear DTC, turn off dashboard MIL "Check Engine" Light
3. Display sensor data, including:
Engine RPM
Load
Coolant Temperature
Fuel Status
Vehicle speed
Intake Manifold pressure (MAF/MAP)
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltage /short term fuel trim
Fuel Pressure

Software Support:

Driver: It does not need.
1.Applications supporting ELM327 chip:
PC windows (supports RS232/USB/bluetooth):
Auto Enginuity ScanTool 6.02 for PC in English/German/Hungarian/Spanish
Dashcommand by Palm Performance, Win 95/98/ME/2000/XP/Vista/7, support touch pad.
Digimoto 5.01.22
Easy OBDII 3.0.0
EVOSCAN for Mitsubishi 1994~2009, Mitsubishi EVOX 2008~2010, Subaru SSMII 1997~2007
FiatECUScan for Alfa/Fiat/Lancia, Win XP/Vista/7
GM mode 22 scan tool by Terry
moDiag Professional in English/German/Hungarian/Romanian, Win 2000/XP/Vista/7
MultiECUScan
OBD 2007 PID reader for PC and pocket PC by GLM So
