Mini Voltmeter LED 0-100V DC 0.28 Inch 3 Wire Red

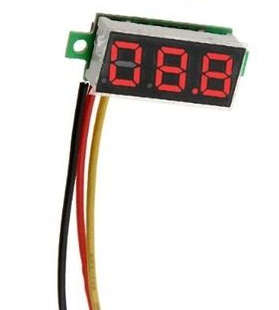

This is a mini DC voltmeter with LED display. Thanks to the small dimension it can be easily integrated into your project. It has three wires (yellow, red and black) and can measure up to 100V.
High precision
Reverse connection protection
The decimal point is automatically shifted

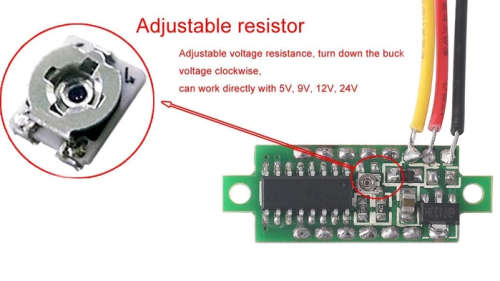

Able to adjust voltage resistance - Turn clockwise to lower voltage, it can work directly in 5v, 9v, 12v, 24v.
Three-wire connection, but it can also change three lines to 2-wire connection.
Specification
Power Supply: 3.5 ~ 30V
Measured Voltage: 0 ~ 100V (3-wire mode) 3.5 ~ 30V (2-wire mode)
Working Current: < 20 mA
Working Temperature: -10 +65
Measure Speed: 200ms a time
Accuracy: 3%
Dimensions: 30mm × 11.7mm × 9.2 mm
Mounting opening: 23mm × 10 mm
Usage Guide

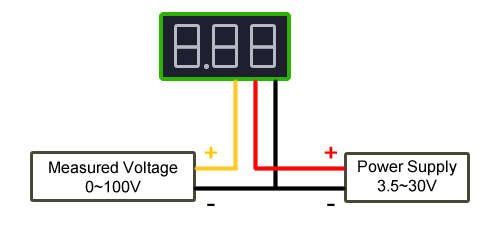

This voltmeter has three wires, and they are:
Yellow: Anode of measured voltage
Red: Anode of power supply for the voltmeter
Black: Common cathode of measured voltage and power supply
If the actual measured voltage is higher than 3.5V and is lower than 30V, you can also join the red and yellow wires. In this case the measured voltage will also work as the power supply for the voltmeter.
Displays are available in other colours.
