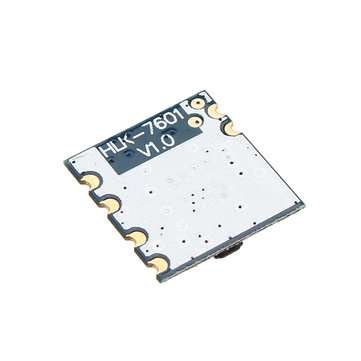

Mini WiFi Module Wireless Internet Module Support LINUX2.4/2.6 WINCE5.0/6.0 HLK-7601U2 MT7601 MT7601

More document click to download:

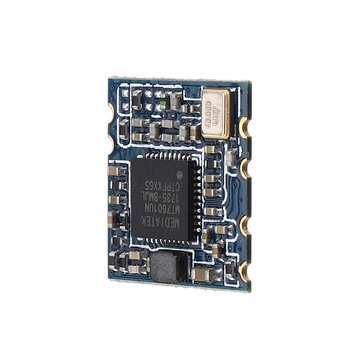

Overview: The MT7601U is a highly integrated Wi-Fi single chip which supports 150 Mbps PHY rate. It fully complies with IEEE 802.11n and IEEE 802.11 b/g standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor.The MT7601U is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance. Features: IEEE 802.11 b/g/n client Embedded high-performance 32-bit RISC microprocessor Highly integrated RF with 55nm CMOS technology 1T1R mode with support of 150Mbps PHY rate Integrate high efficiency switching regulator Best-in-class power consumption performance Compact 5mm x 5mm QFN40L package 1/2/3/4-wire PTA Wi-Fi / Bluetooth coexistence support 802.11 d/h/k compliant Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI Supports 802.11w protected managed frames QoS support of WFA WMM, WMM PS Supports Wi-Fi Direct Fully compliance with USB v2.0 High-speed mode Per packet transmit power control Antenna diversity Auto-calibration Package Included: 1 x MT7601Mini WiFi Wireless Internet Module
