Product details

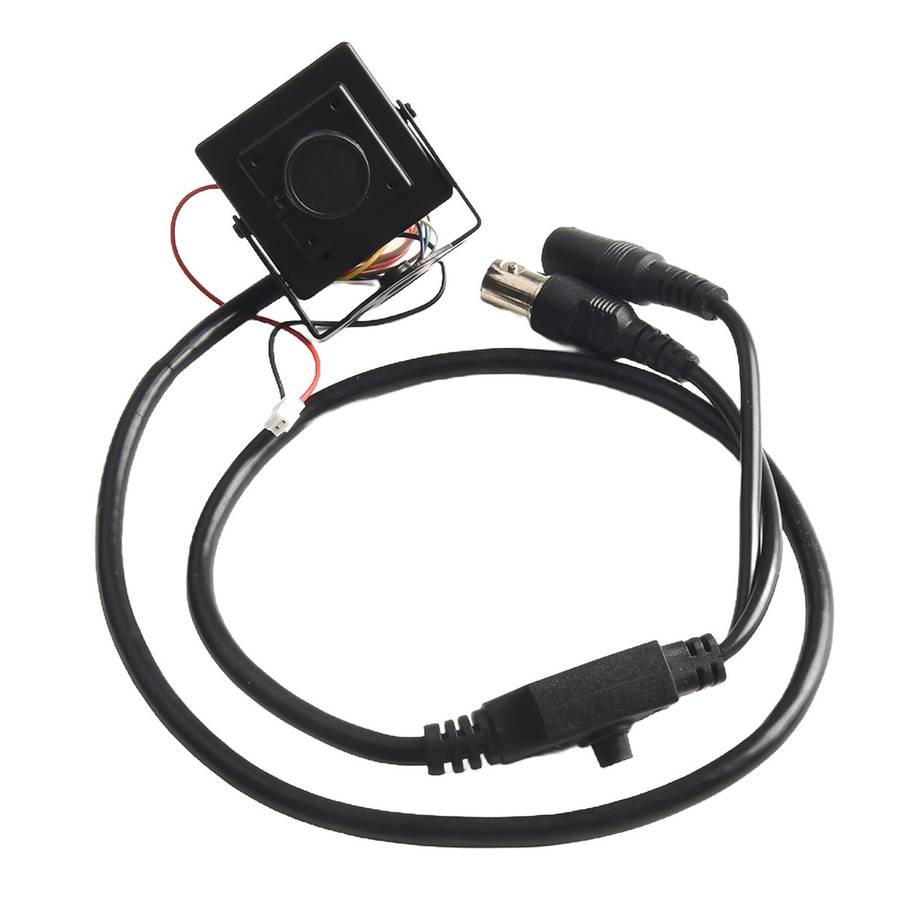

Mini Wired Micro Pinhole Hidden Video Audio Color CMOS Camera
Please read the shipping befor bidding
Feature:
Compact volume, low power consumption, high sensitivity, easy to operate, install and hide.
Micro Color Camera tpyes.
The lens: 5.6mm for color type.
It provides audio function, and can be equipped with infrared ray.
It can view the objects without outside light source, it is a full-function collector.
Can work together with other equipment including microcomputer to realize such capabilities as documents filming, photographing, complex video signal PAL(CCR).
With a clip, can choose a best location hang the clip and adjust the installation angle to ideal level.
The working voltage of this product is DC+6V-/+12V.
It can be powered on for a long time, but the input voltage can be not exceeded DC+12V, while current can not be exceeded 250MA.
The yellow plug is video output cable, which can be connected with varieties of monitors and TV with video input jack to watch images.
Suitbale for car rearview, video meeting, schools, supermarkets, shops, workshops, warehouses, offices, visual telephone, visual E-mail, PC multi-media-toys, games, monitoring, guardianship, anti-burglary, safeguardor other special tasks.
Specifications:
Photographing Device: 1/4 video sensor
System: PAL/CCIR
Effective pixels: PAL 628*582
Image area: PAL 5.78x4.19mm
Resolution: 380lines
Scanning frequency: PAL/CCIR 50Hz
Lowest Illuminance: 0.2LUX
Sensitivity: +18DB-AGC ON-OFF
Power source: +9V DC
Power consumption: 200MW
Cable lenght: 22.5cm
Item size: 4 * 3.5 * 3.2cm
Item weight: 54g
Package size: 6.8 * 5.8 * 4.6cm
Package
1 * Mini Camera
1 * Manual
