Description:

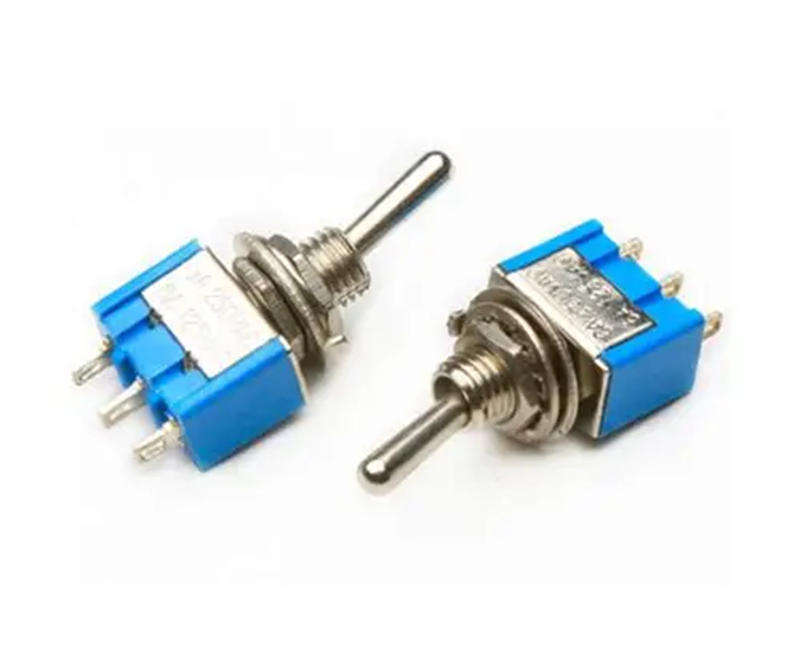

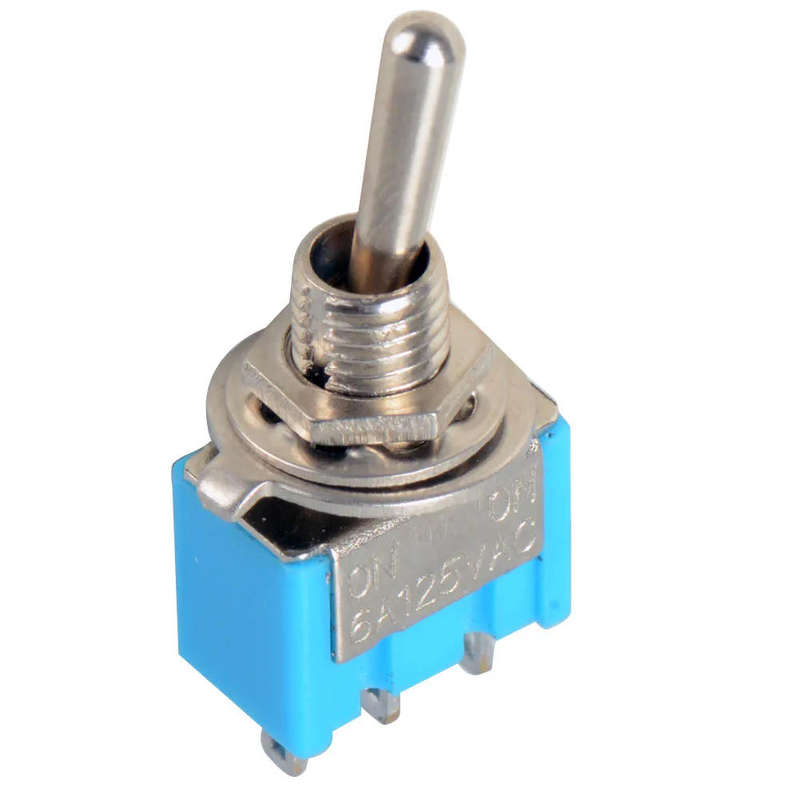

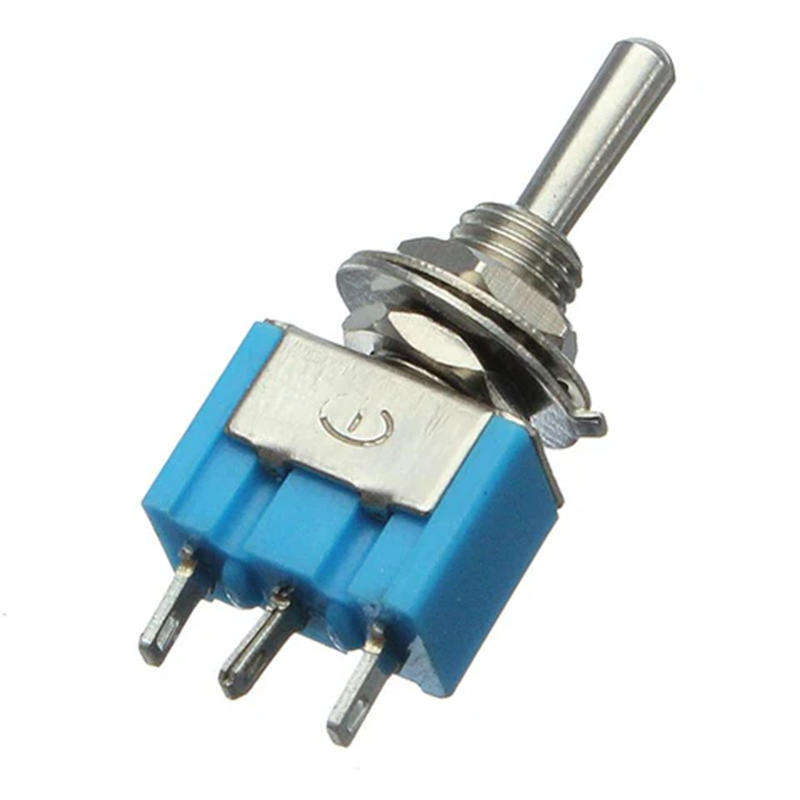

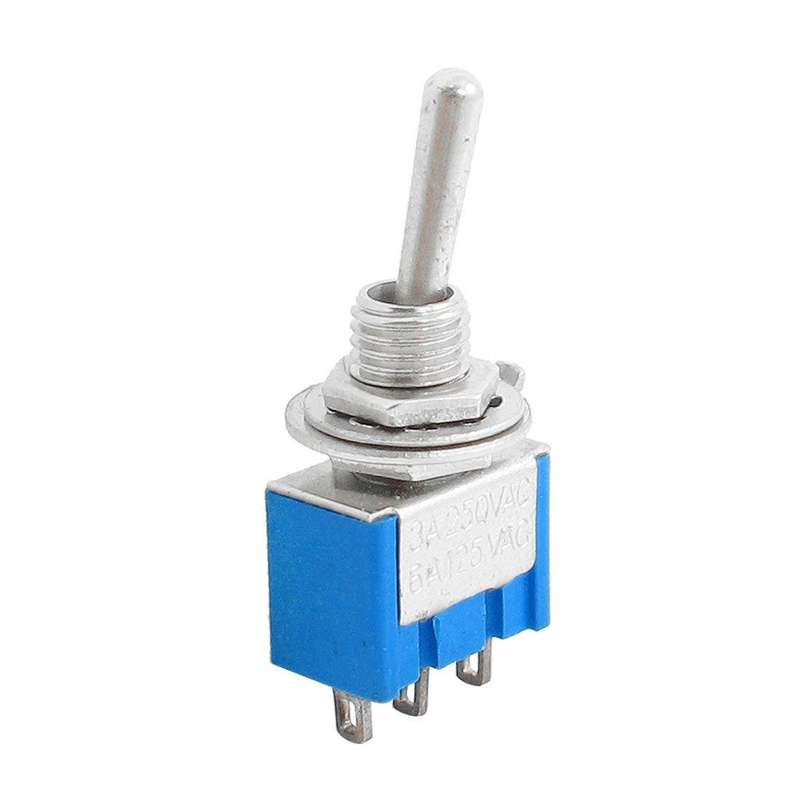

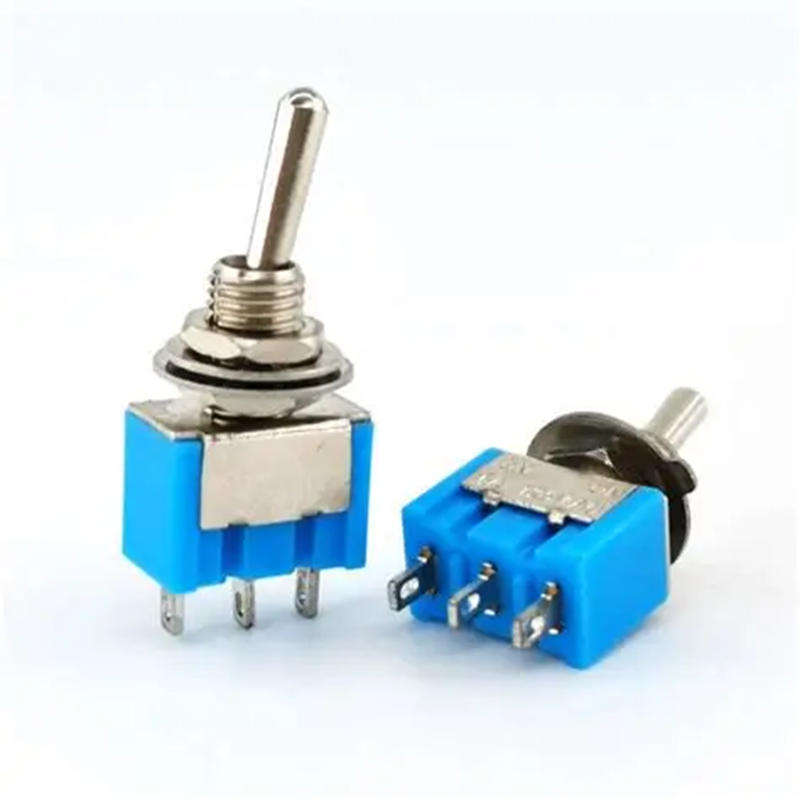

• The Miniature Toggle Switch MTS-102 is a tough and dependable switch ideal for a variety of applications.
• Waterproof Cap: The 6mm waterproof cap protects against moisture and dust, making it appropriate for usage in areas where these factors are prominent.
• Installation is made simple by the solder lug terminals and the standard mounting hole size, which may be used in a variety of panels and devices.
• The switch is built to last and is made of heat-resistant Bakelite.
• This switch is noted for its durability and ease of installation, making it an excellent choice for a variety of applications and gadgets.

Specifications:

• Type: SPDT (Single Pole Double Throw).
• Rated Voltage: 125VAC/6A or 250VAC/3A.
• Contact Configuration: On-On (2 positions).
• Pin Number: 3-Pin.
• Size: Approximately 13 mm x 8 mm x 10 mm (L x W x H).
• Material: Durable and heat-resistant Bakelite housing.
• Mechanical Life: 50,000 cycles (minimum).
• Electrical Life: 10,000 cycles (minimum).
• Terminal Type: Solder lug terminals for easy wiring.
• Actuator Type: Bat handle toggle.
• Mounting Hole Diameter: 6 mm.
• Switch Function: Maintained (stays in the position you set it).
• Environmental Protection: Often comes with a waterproof cap to ensure protection against moisture and dust.
• Applications: Ideal for panel mounting in various applications such as automotive, industrial equipment, marine, and home appliances.
• Compliance: RoHS compliant, ensuring it meets environmental and safety standards.
