Description:

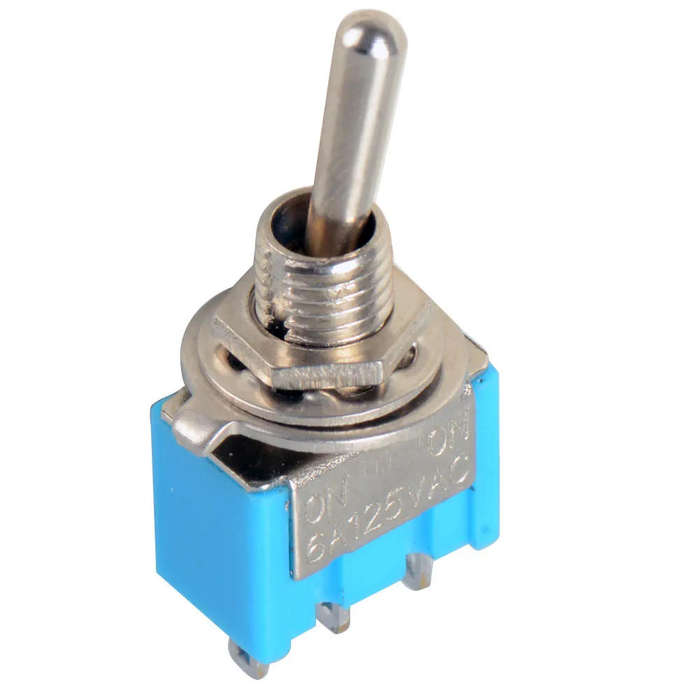

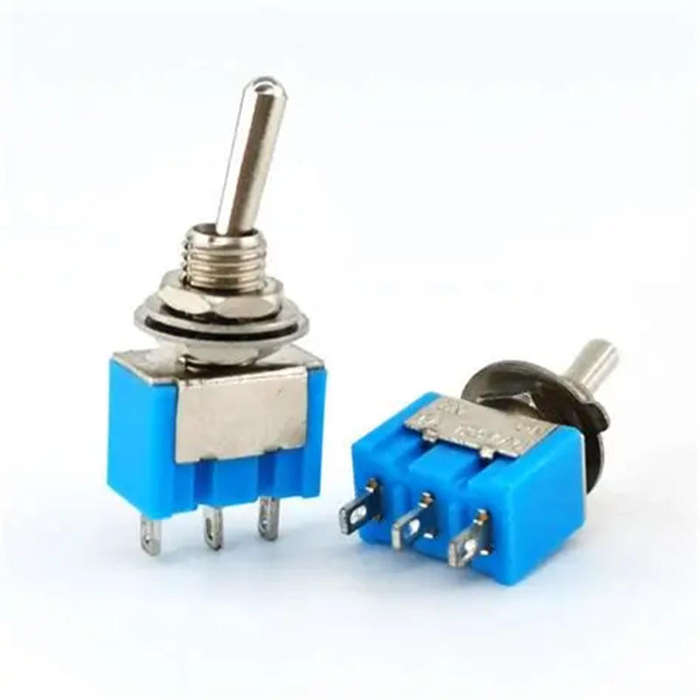

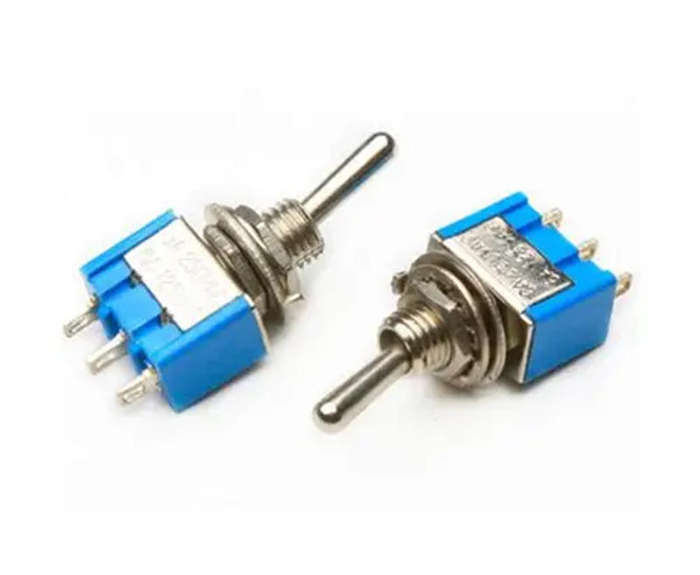

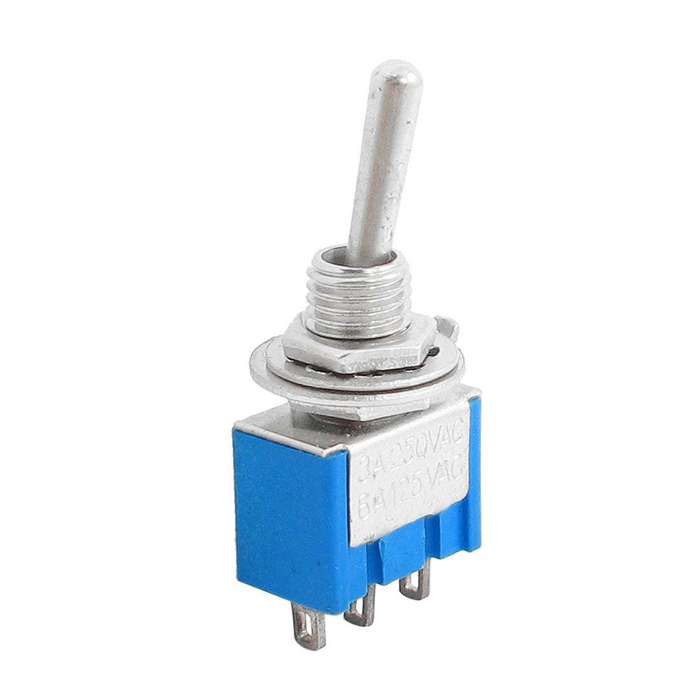

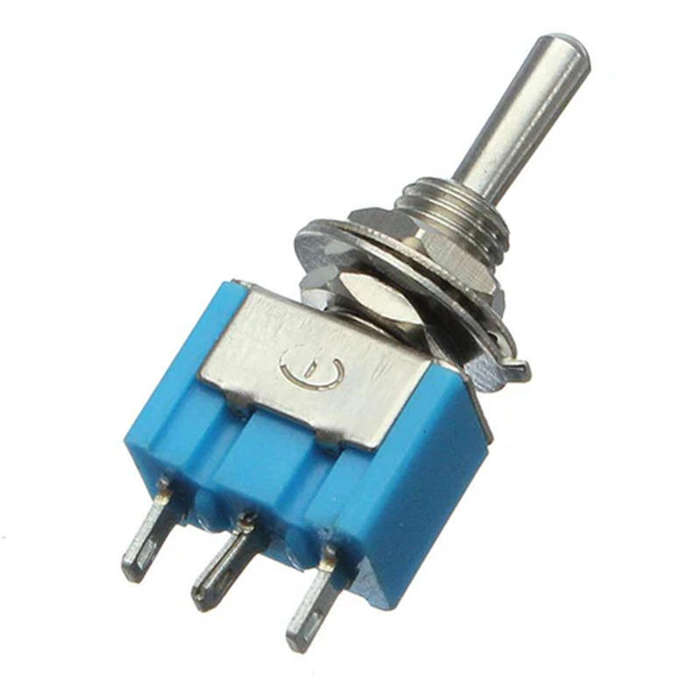

• Miniature panel switches for some user interface with your controller.
• In addition to this switch's three positions, we also have one with two (MTS-102).

Specifications:

• Type: SPDT (Single Pole Double Throw).
• Rated Voltage: 125VAC/6A or 250VAC/3A.
• Contact Configuration: On-Off-On (3 positions).
• Pin Number: 3-Pin.
• Size: Approximately 13 mm x 8 mm x 10 mm (L x W x H).
• Material: Durable and heat-resistant Bakelite housing.
• Mechanical Life: 50,000 cycles (minimum).
• Electrical Life: 10,000 cycles (minimum).
• Terminal Type: Solder lug terminals for easy wiring.
• Actuator Type: Bat handle toggle.
• Mounting Hole Diameter: 6 mm.
• Switch Function: Maintained (stays in the position you set it).
• Environmental Protection: Often comes with a waterproof cap for added protection against moisture and dust.
• Applications: Ideal for panel mounting in various applications such as automotive, industrial equipment, marine, and home appliances.
• Compliance: RoHS compliant, ensuring it meets environmental and safety standards.
